Yanmar 3TNV80FT
Series: TNV Series (under 19kW)
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

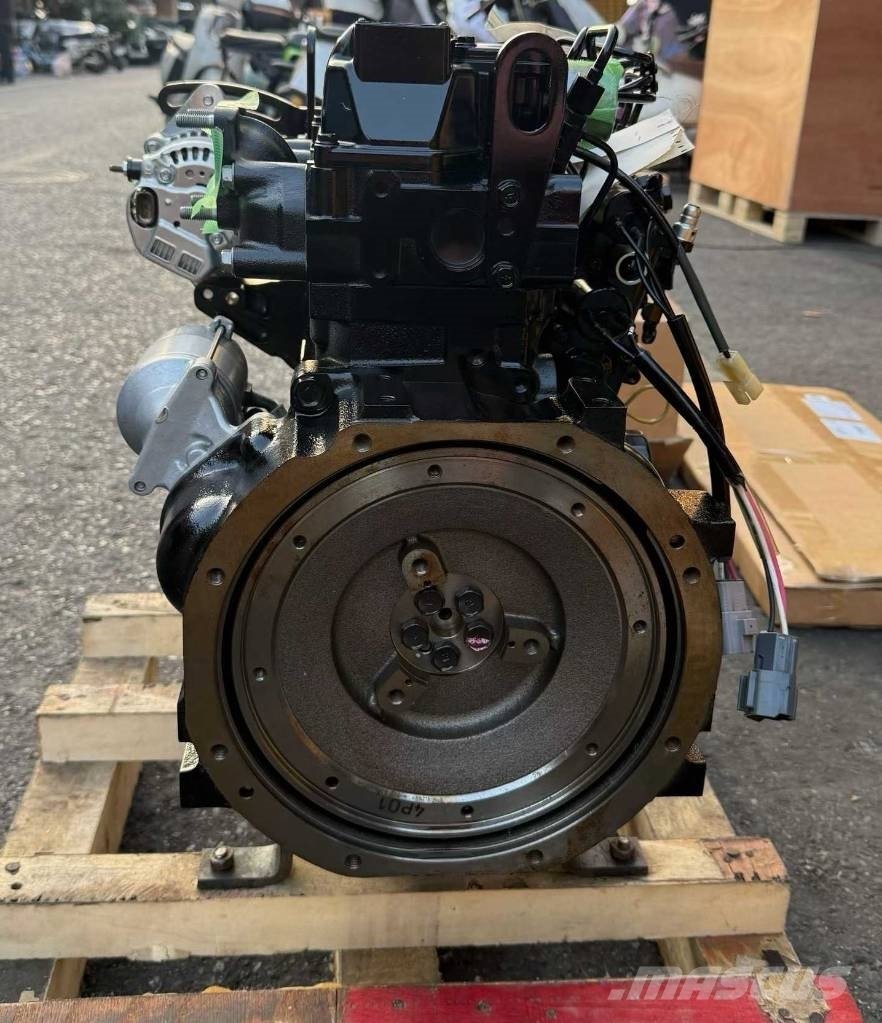

Yanmar TNV Series under 19 kW – water-cooled industrial diesels of the register: 3TNV80F-Z and 3TNV80FT, three-cylinder units in the EU Stage V category NRE-v/c-1/2
The Yanmar TNV Series in the power class under 19 kW brings together on this collective page two water-cooled industrial diesel engines: 3TNV80F-Z and 3TNV80FT. Yanmar was founded in 1912 in Osaka; in the type designation of the TN engine family, the leading digit denotes the number of cylinders, so both TNV engines listed here are three-cylinder units, with the two versions differing among other things in their turbocharging.
Read on 3 more paragraphs
The register lists here two versions, 3TNV80F-Z and 3TNV80FT, each with 18.4 kW or 25.0 hp, 1,266 cm³ displacement and 124 kg dry weight; rated speed is 2,800 rpm for the naturally aspirated version and 2,600 rpm for the turbocharged version. Both meet the EU Stage V and EPA/CARB Final Tier 4 emission standards.
The TNV range is among Yanmar's most widely fitted industrial diesel engines and drives construction machinery such as mini excavators and compact loaders, generator sets, pumps and compressors; such small non-road engines under 19 kW fall under the EU Stage V category NRE-v/c-1 or NRE-v/c-2 and are therefore subject to their own emission limits compared with more powerful industrial engines, which matters when choosing a replacement engine for older machines.
When buying used, what counts on these three-cylinder engines is the condition of the turbocharger and charge-air ducting on the turbocharged version, the tightness of the cooling system, and compression and oil consumption; on compact construction machinery fitted with these engines it is also worth checking the condition of the hydraulic connections around the engine bay. Spare parts run through Yanmar's industrial engine distribution.
Sources: SpecCodex register, model data: Yanmar TNV Series unter 19 kW, Yanmar (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 25 hp (18.4 kW)correct |
| Cylinders | 3correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Dry weight | 124 kgcorrect |
|---|
Other data
| Aspiration | turbochargedcorrect |
|---|---|
| Bore × stroke | 80x84correct |
| Dimensions | 523x450x652correct |
| Displacement | 1,266 lcorrect |
| Emission stage | EU Stage V / EPA-CARB Final Tier 4correct |
| Speed | 2,600 rpmcorrect |
Frequently asked questions
How much power does the Yanmar 3TNV80FT have?
The Yanmar 3TNV80FT delivers 25 hp.
What engine does the Yanmar 3TNV80FT have?
3 cylinders, Diesel.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
