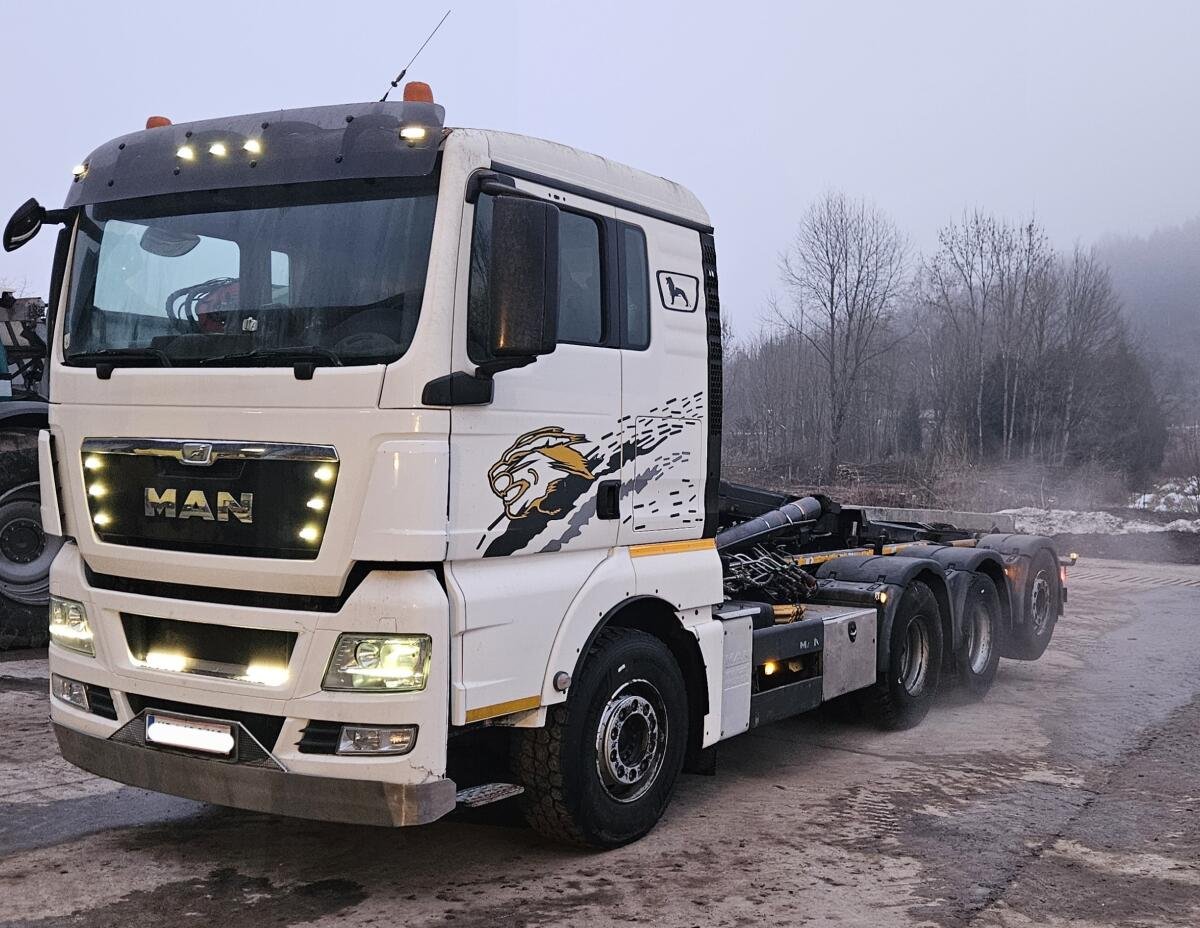

Wvt TGX 38 480
Built: 2010 · Series: Other models
More machines from model year 2010
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Wvt – other models: the collective page carrying MAN's TGA, TGL, TGS and TGX type designations, multi-axle special chassis 8x8 and 10x4, 6.9- to 12.4-litre six-cylinder diesels
This page gathers vehicles the register could not assign to a named range, all of which carry the type designations TGA, TGL, TGS and TGX – names used exclusively by MAN for its heavy-truck programme. Under MAN's nomenclature, the number before the dot gives the approximate gross weight in tonnes and the number after it the engine power in horsepower, as in the TGX 38.480 at around 38 tonnes and 480 hp; axle configurations such as 8X8 or 10X4 mark heavy special chassis for tipper, crane or heavy-haul use.
Read on 3 more paragraphs
The register lists here 12 versions with displacements from 6,871 to 12,419 cm³, all six-cylinder, unladen weights from 8,002 to 24,620 kg, gross weights from 11,990 to 46,000 kg, lengths from 7,640 to 11,900 mm and widths from 2,360 to 2,550 mm.
MAN's TGA range (2000 to 2007), the light and medium TGL and TGM, and the heavy TGS and TGX since 2007 form the backbone of the European long-haul and construction programme; the multi-axle chassis listed here in 8x8 and 10x4 configuration typically serve as tippers or carriers for crane and special-purpose bodies.
On these heavy chassis, check the condition of the exhaust aftertreatment and particulate filter on the D20/D26 engines, the clutch and gearbox – manual or the automated TipMatic – frame corrosion, especially on construction and tipper duty, and the PTO and hydraulic system on special-bodied units; parts run through the MAN dealer network.
Sources: SpecCodex register, model data: Wvt (weitere Modelle)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 12,419 cm³correct |
Dimensions and weights
| Length | 9,000 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 6,450 mmcorrect |
| Unladen weight | 14,090 kgcorrect |
| Gross vehicle weight | 38,000 kgcorrect |
Drivetrain and chassis
| Wheels | 8correct |
|---|
Frequently asked questions
How much does the Wvt TGX 38 480 weigh?
The unladen weight is 14,090 kg.
What is the gross vehicle weight of the Wvt TGX 38 480?
38,000 kg.
What engine does the Wvt TGX 38 480 have?
6 cylinders, 12,419 cm³ displacement.
What are the dimensions of the Wvt TGX 38 480?
9,000 mm × 2,550 mm.
When was the Wvt TGX 38 480 built?
Production years: 2010.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
