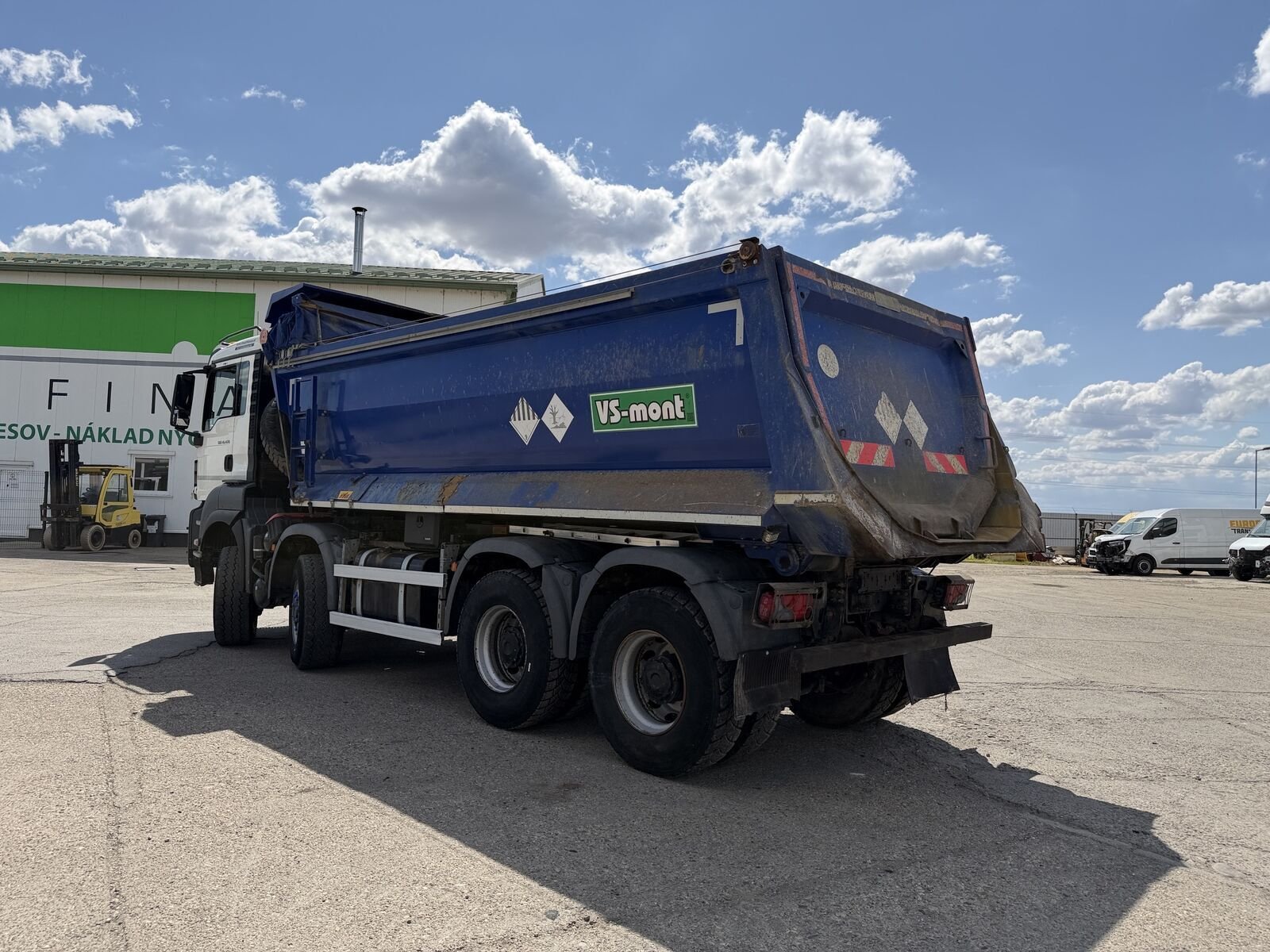

Wvt TGS 41.470
Built: 2021 · Series: TGS
More machines from model year 2021
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Wvt TGS – heavy chassis with recognisable MAN TGS type logic: six-cylinder engines of 10.5 to 12.4-litre displacement, axle configurations up to 8x8, up to 63.5 t gross weight
The register carries these vehicles under the manufacturer field Wvt, yet the model designations themselves clearly follow the type logic of MAN TGS chassis: the number before the point (26 to 65) roughly indicates the weight class in tonnes, the number after it (360 to 540) the engine output in horsepower, the digit-letter combinations 6X4, 8X4, 8X6, 8X8 and 10X4 the axle count and drive, and suffixes such as BL, BB and BH on MAN chassis usually mark suspension and body variants for construction use.
Read on 3 more paragraphs
The register lists 60 versions here from six-cylinder engines of 10,518 to 12,419 cm³, unladen weights of 11,405 to 63,000 kg, gross vehicle weights of 29,500 to 63,500 kg and lengths of up to just under 11,000 mm; widths lie between 2,470 and 2,550 mm.
The chassis listed here cover the heavy construction and special-vehicle segment, from the classic three-axle tipper configuration to eight-axle 8x8 variants for extreme terrain; such chassis are typically fitted with tipper, mixer or crane bodies and used in earthworks, mining and plant transport.
When buying used, check frame corrosion and axle suspension condition on these construction chassis after years of off-road use, wear on the transfer case and differential locks on multi-axle drive versions, the condition of the respective body (tipper, mixer, crane), and the operating hours on the six-cylinder engine; for the drivetrain, parts supply runs through the MAN service network.
Sources: SpecCodex register, model data: Wvt TGS
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 12,419 cm³correct |
Dimensions and weights
| Length | 8,780 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 6,200 mmcorrect |
| Unladen weight | 21,040 kgcorrect |
| Gross vehicle weight | 43,000 kgcorrect |
Drivetrain and chassis
| Wheels | 12correct |
|---|---|
| Top speed | 90 km/hcorrect |
Frequently asked questions
How much does the Wvt TGS 41.470 weigh?
The unladen weight is 21,040 kg.
What is the gross vehicle weight of the Wvt TGS 41.470?
43,000 kg.
What engine does the Wvt TGS 41.470 have?
6 cylinders, 12,419 cm³ displacement.
How fast does the Wvt TGS 41.470 go?
Top speed is 90 km/h.
What are the dimensions of the Wvt TGS 41.470?
8,780 mm × 2,550 mm.
When was the Wvt TGS 41.470 built?
Production years: 2021.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
