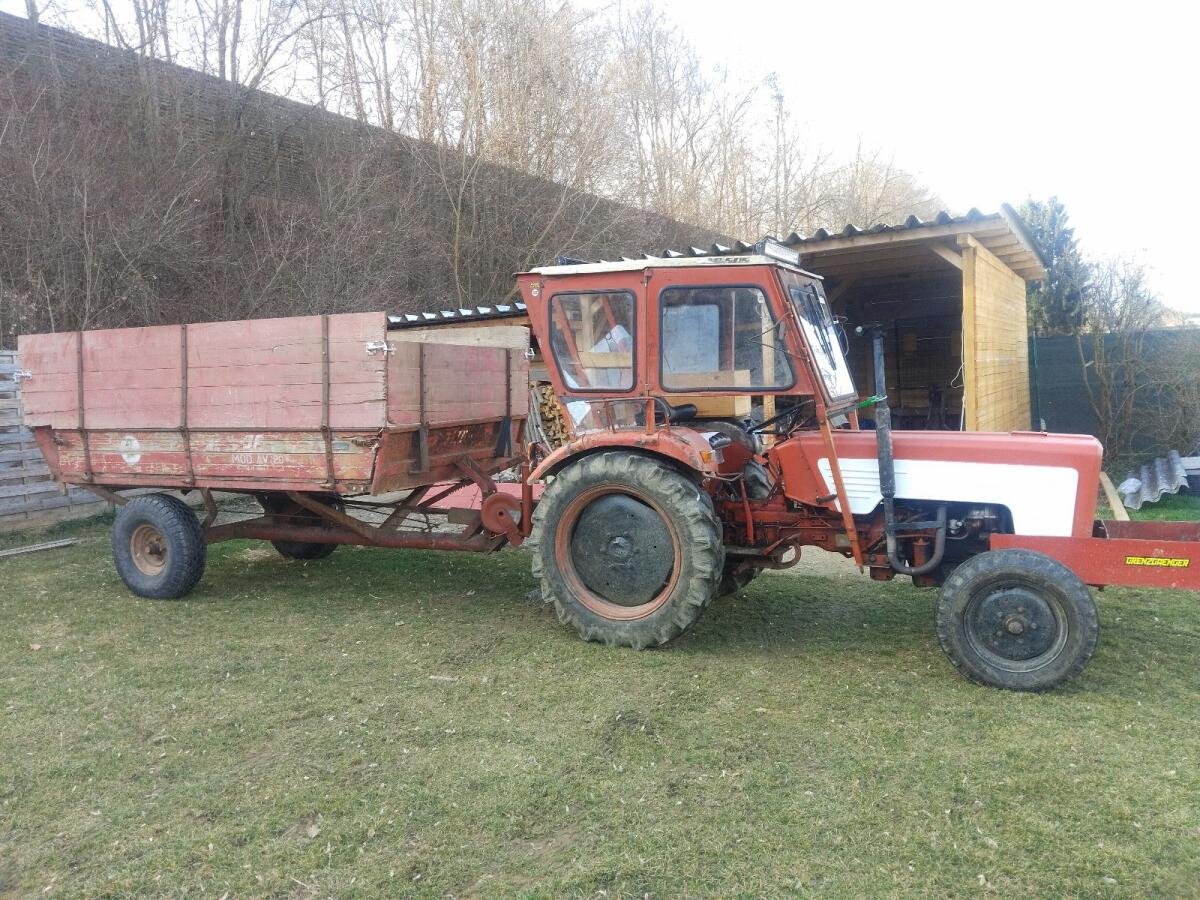

Warchalowski Mc Cormick WT-32 B
Built: 3/1968–8/1971 · Series: WT-Baureihe
More machines from model year 1968
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Warchalowski McCormick WT series – licence-built tractors WT-32, WT-32 A, WT-32 B and WT-45 A from Vienna in the 1950s and 1960s, four-cylinder diesels from 22 to 33 kW built to International Harvester technology
The WT series originated at Warchalowski in Vienna, where International Harvester tractors of the McCormick type were built under licence. The WT-32 type designation with A and B versions and the more powerful WT-45 A show a marking typical of licence-built machines: the number denotes the power class, while the appended letters A and B mark execution variants within the same base type. All four models use four-cylinder diesel engines of the kind also fitted in the original McCormick tractors from International Harvester.
Read on 3 more paragraphs
The register lists four versions here with 22.1 to 33.1 kW from four-cylinder diesel engines with 2,346 to 2,523 cm³ displacement. Rated speed lies between 2,200 and 2,400 rpm, unladen weight ranges from 1,540 to 1,950 kg with lengths from 3,260 to 3,350 mm, widths from 1,530 to 1,550 mm and heights from 1,460 to 1,520 mm; torque lies between 142 and 168 Nm.
In the post-war period, licence production at Warchalowski gave Austrian farmers access to International Harvester technology without relying on imports, positioning the WT series in the mid power segment alongside domestic manufacturers such as Steyr.
When buying used, check the condition of the clutch and gearbox, tightness of the injection system, corrosion on the wings, bonnet and radiator grille, and the availability of parts, which for these rare licence-built machines can usually only be sourced through specialist used-parts dealers or International Harvester parts stocks.
Sources: SpecCodex register, model data: Warchalowski Mc Cormick WT-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 30 hp (22.1 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Torque | 142 Nmcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,346 cm³correct |
| Bore | 85.73 mmcorrect |
| Stroke | 101.6 mmcorrect |
| Compression ratio | 19.3correct |
| Injection pressure | 157 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,260 mmcorrect |
|---|---|
| Width | 1,530 mmcorrect |
| Height | 1,520 mmcorrect |
| Wheelbase | 1,970 mmcorrect |
| Ground clearance | 395 mmcorrect |
| Unladen weight | 1,550 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/4 Rcorrect |
| Front tyres | 5.50-16 ASFcorrect |
| Rear tyres | 10-28 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 234correct |
Where this model stands
Power-to-weight ratio: 14.3 kW/t (22 kW / 1.6 t)
Power class: Compact (< 40 hp)
Stronger than 17% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Warchalowski Mc Cormick WT-32 B have?
The Warchalowski Mc Cormick WT-32 B delivers 30 hp.
How much does the Warchalowski Mc Cormick WT-32 B weigh?
The unladen weight is 1,550 kg.
What engine does the Warchalowski Mc Cormick WT-32 B have?
4 cylinders, 2,346 cm³ displacement, Diesel.
How fast does the Warchalowski Mc Cormick WT-32 B go?
Top speed is 30 km/h.
What are the dimensions of the Warchalowski Mc Cormick WT-32 B?
3,260 mm × 1,530 mm × 1,520 mm.
When was the Warchalowski Mc Cormick WT-32 B built?
Production years: 3/1968–8/1971.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
