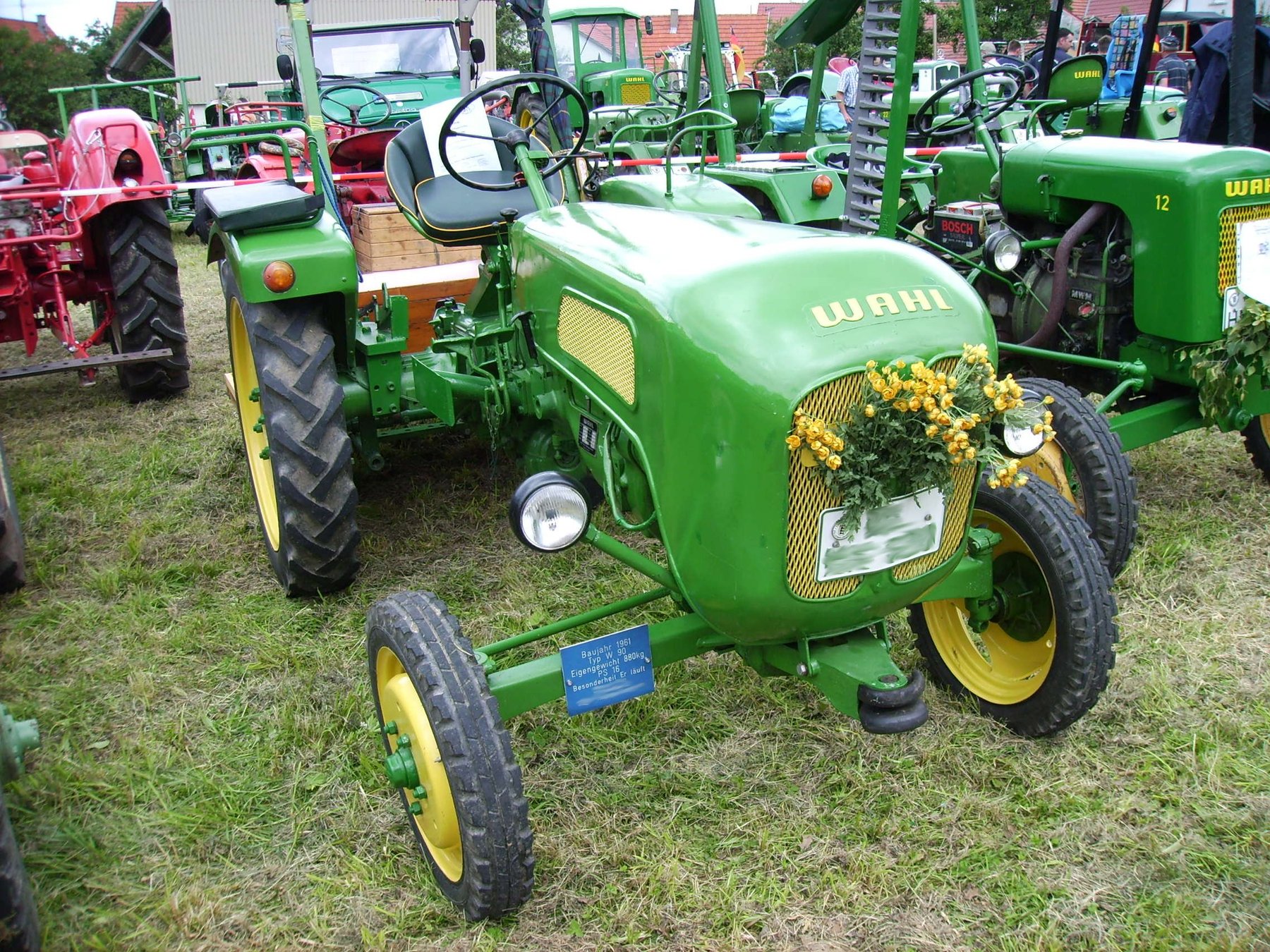

Wahl W 90
Built: 1959–1962 · Series: W
More machines from model year 1959
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Wahl W – small tractors W 15, W 46, W 90 and W 98 with single- and twin-cylinder diesel engines from 10 to 18 kW, displacement 1,005 to 2,356 cm³, unladen weight between 880 and 1,485 kg
The W series brings together four small tractors: the W 15, W 46, W 90 and W 98 types. The type numbers after the W do not follow a continuously ascending sequence, but together cover a narrow power range in the lower segment. All four models are built as single- or twin-cylinder diesel tractors with comparatively small displacement, placing them in the light class of tractors listed here in the register.
Read on 3 more paragraphs
The register lists four versions here with 10.2 to 17.6 kW from single- and twin-cylinder diesel engines with 1,005 to 2,356 cm³ displacement. Rated speed lies between 1,500 and 2,100 rpm, unladen weight ranges from 880 to 1,485 kg with lengths from 2,450 to 2,550 mm, widths from 1,500 to 1,570 mm and heights from 1,400 to 1,450 mm.
With unladen weights under one and a half tonnes and single- to twin-cylinder engines, the W series sits in the light yard-and-field tractor class, of the kind used on smaller farms and for specialty crops, where low weight and simple operation mattered more than high pulling power.
When buying used, with engines this small the condition of the injection pump and fuel system, tightness of the crankcase and valve cover, wear on the clutch and gearbox, and corrosion on sheet metal parts and wings are especially important to check. Parts availability for such small tractors is limited and runs mainly through specialist used-parts dealers.
Sources: SpecCodex register, model data: Wahl W
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 16 hp (12 kW)correct |
| Cylinders | 2correct |
| Displacement | 1,005 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Unladen weight | 880 kgcorrect |
|---|
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Top speed | 18.85 km/hcorrect |
Working data
| Fuel tank capacity | 18 lcorrect |
|---|
Where this model stands
Power-to-weight ratio: 13.6 kW/t (12 kW / 0.9 t)
Power class: Compact (< 40 hp)
Stronger than 4% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Wahl W 90 have?
The Wahl W 90 delivers 16 hp.
How much does the Wahl W 90 weigh?
The unladen weight is 880 kg.
What engine does the Wahl W 90 have?
2 cylinders, 1,005 cm³ displacement, Diesel.
How fast does the Wahl W 90 go?
Top speed is 18.9 km/h.
When was the Wahl W 90 built?
Production years: 1959–1962.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
