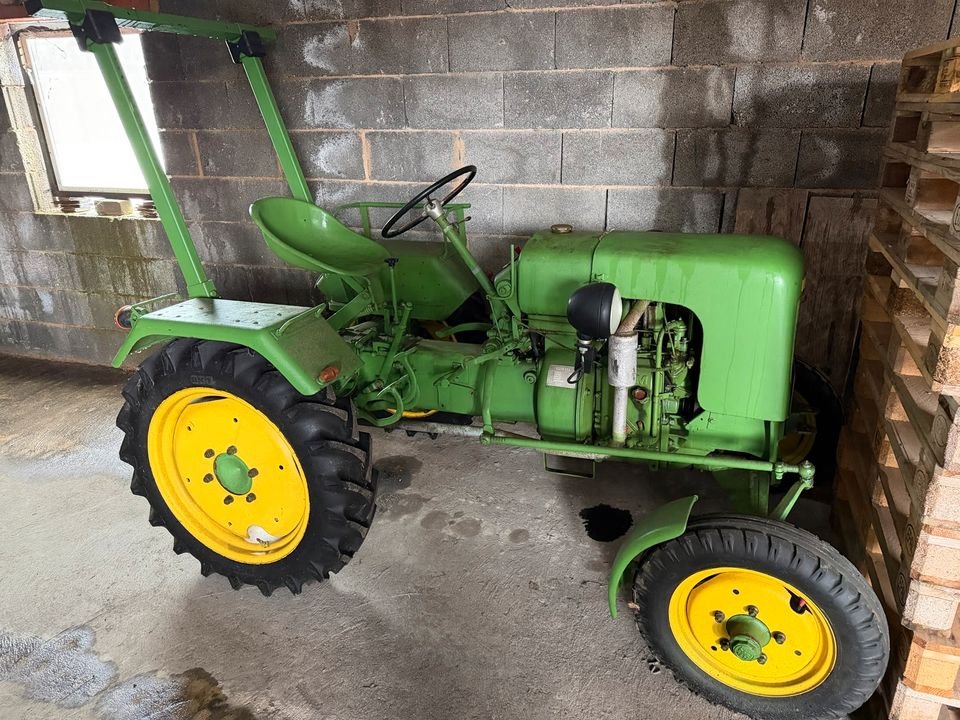

Wahl W22
Built: 1953–1958 · Series: Other models
More machines from model year 1953
Wahl – other models: the collective page of tractors outside the named ranges, from the W16 type to the W225, 9 to 29 kW, single- to three-cylinder diesel engines
This page gathers the Wahl tractors the register could not assign to a named range. The type designation consists of the letter W and a two- or three-digit number, ranging from W16 and W17 through W70 and W80 to W133, W135 and W225; the span of displacements from 668 to 3,534 cm³ across one to three cylinders shows a line-up from small single-cylinder engines to larger multi-cylinder units.
Read on 3 more paragraphs
The register lists here 16 versions with 9 to 29.3 kW (12 to 40 hp) from single- to three-cylinders of 668 to 3,534 cm³, unladen weights from 820 to 2,350 kg, lengths from 2,550 to 3,330 mm, widths from 1,570 to 1,880 mm and heights from 1,470 to 2,160 mm, at speeds of 2,000 to 2,600 rpm; throughout diesel-powered.
With a power range of 9 to 29 kW, the range covers the segment of smaller and medium yard and field tractors, designed for smaller farms and for work with light to medium implements. The spread of numbers in the type designations also suggests a line-up built up over a longer period rather than a single coherent generation.
On used examples, engine condition and compression, the state of clutch and gearbox, the tightness of the hydraulics, rust on sheet-metal parts and mudguards, and on the older single-cylinder types the condition of the starter motor or hand-crank mechanism all count; parts supply depends heavily on the specific model and year of manufacture.
Sources: SpecCodex register, model data: Wahl (weitere Modelle)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 24 hp (17.6 kW)correct |
| Cylinders | 2correct |
| Displacement | 1,700 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,630 mmcorrect |
|---|---|
| Width | 1,570 mmcorrect |
| Height | 1,490 mmcorrect |
| Wheelbase | 1,750 mmcorrect |
| Ground clearance | 405 mmcorrect |
| Unladen weight | 1,200 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5v/1rcorrect |
| Forward gears | 5correct |
| Reverse gears | 1correct |
| Front tyres | 5.00-16, 6.00-16correct |
| Rear tyres | 9-24, 10-28correct |
| Top speed | 20 km/hcorrect |
Other data
| PTO speed | 540 rpmcorrect |
|---|
Where this model stands
Power-to-weight ratio: 14.7 kW/t (18 kW / 1.2 t)
Power class: Compact (< 40 hp)
Stronger than 10% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Wahl W22 have?
The Wahl W22 delivers 24 hp.
How much does the Wahl W22 weigh?
The unladen weight is 1,200 kg.
What engine does the Wahl W22 have?
2 cylinders, 1,700 cm³ displacement, Diesel.
How fast does the Wahl W22 go?
Top speed is 20 km/h.
What are the dimensions of the Wahl W22?
2,630 mm × 1,570 mm × 1,490 mm.
When was the Wahl W22 built?
Production years: 1953–1958.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
