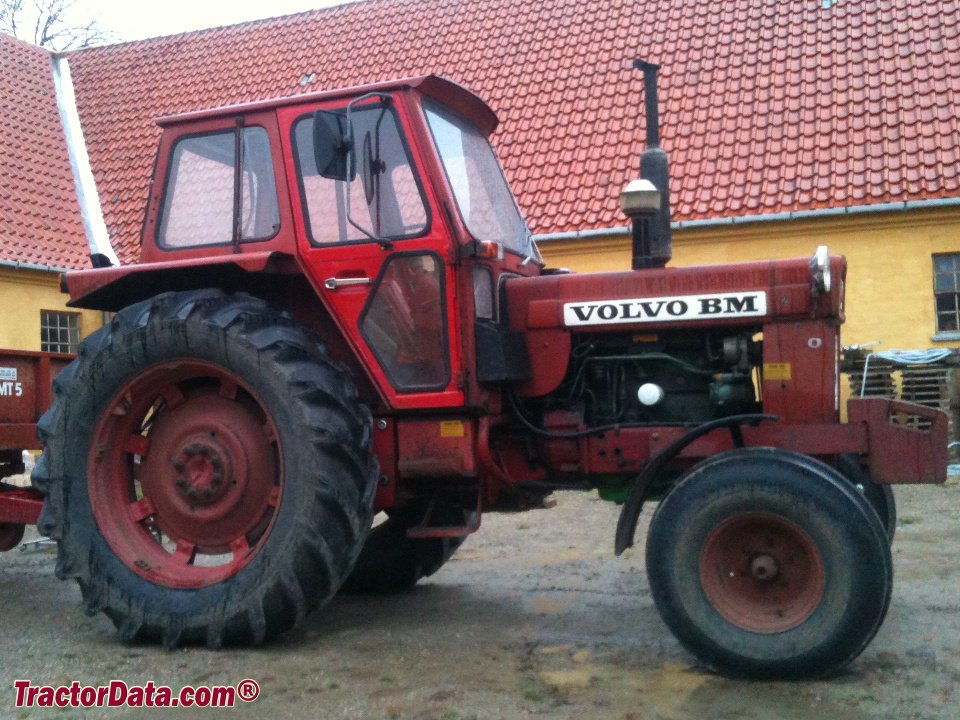

Volvo T 650
Built: 1970–1982 · Series: Other models
More machines from model year 1970
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Volvo – other models: tractors from the Bolinder-Munktell lineage named Krabat, Buster, Bison and Boxer, 13.4 to 103 kW, diesel, petrol and paraffin engines
This collective page gathers Volvo tractors outside the named series. Their roots lie with Bolinder-Munktell, the Swedish manufacturer that presented one of the first tractors built in Sweden in 1913; Volvo acquired a majority stake in Bolinder-Munktell in 1950, and from 1973 the tractors were sold under the Volvo BM brand. The T series (T-21 to T-800) additionally carried its own model names, such as T-25 Krabat, T-400 Buster, T-470 Bison and T-600 Boxer.
Read on 3 more paragraphs
The register lists 44 versions from 13.4 to 103 kW and 18.7 to 140 hp with two- to six-cylinder engines of 1,414 to 5,483 cm³. Unladen weights range from 1,100 to 7,500 kg, lengths from 2,510 to 4,650 mm and widths from 1,300 to 2,330 mm, with torque from 97 to 485 Nm. Alongside diesel engines, older models also used petrol and paraffin units.
Volvo BM ranked among the leading tractor brands in Scandinavia and competed directly with Massey Ferguson, International Harvester and Fordson there. The later agricultural division became part of Valmet in the 1980s, and Volvo's stake eventually passed to Valtra, while the Volvo name lives on today in trucks and construction equipment.
When buying older petrol and paraffin models, check the carburettor and pre-heating system; on diesel models, check the injection pump and cooling system. Rust on wings and gearbox housings is common on Scandinavian post-war tractors, and engine spares are supplied by specialists in classic Volvo BM and Bolinder-Munktell technology.
Sources: SpecCodex register, model data: Volvo (weitere Modelle)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 75.9 hp (55.8 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 258 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,202 cm³correct |
| Bore | 105.57 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 17.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,680 mmcorrect |
|---|---|
| Width | 1,940 mmcorrect |
| Height | 2,650 mmcorrect |
| Wheelbase | 2,440 mmcorrect |
| Ground clearance | 390 mmcorrect |
| Unladen weight | 3,800 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 16 V/4 Rcorrect |
| Forward gears | 16correct |
| Reverse gears | 4correct |
| Front tyres | 10.00-16 ASFcorrect |
| Rear tyres | 14.9-38 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 95 lcorrect |
|---|
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | 26,120correct |
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 14.7 kW/t (56 kW / 3.8 t)
Power class: Universal (40–100 hp)
Stronger than 52% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Volvo T 650 have?
The Volvo T 650 delivers 75.9 hp.
How much does the Volvo T 650 weigh?
The unladen weight is 3,800 kg.
What engine does the Volvo T 650 have?
4 cylinders, 4,202 cm³ displacement, Diesel.
How fast does the Volvo T 650 go?
Top speed is 30 km/h.
What are the dimensions of the Volvo T 650?
3,680 mm × 1,940 mm × 2,650 mm.
When was the Volvo T 650 built?
Production years: 1970–1982.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 31 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
