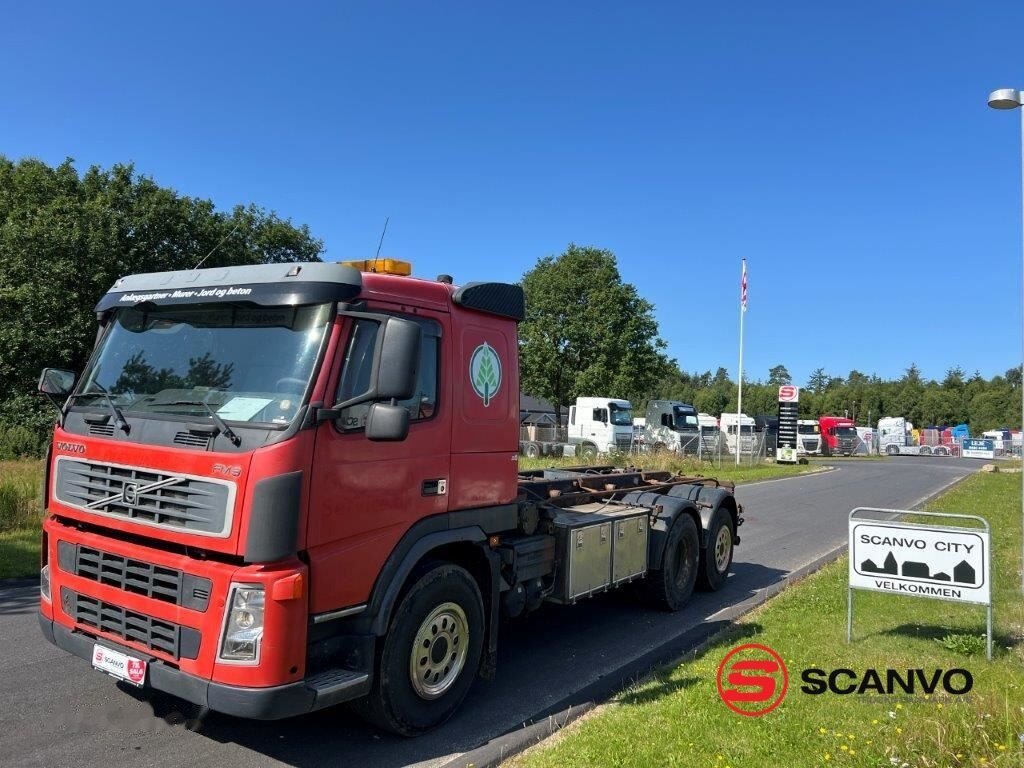

Volvo FM9 380 – specifications
Built: 2008 · Series: FM9
The Volvo FM9 380 belongs to the FM9 series. Production: 2008. The engine delivers 286 kW, with a displacement of 9,360 cm³. The vehicle is 8,000 mm long and 2,500 mm wide. The unladen weight is 11,200 kg. The gross vehicle weight is 30,000 kg. The FM9 series covers 6 models. Rated output within it ranges from 191 to 286 kW; the FM9 380 sits at the top of that range with 286 kW. Its immediate neighbours are the FM9 6x2 below it with 250 kW. Unladen weight within it ranges from 10,400 to 20,540 kg; here the FM9 380 sits at the bottom of that range with 11,200 kg. 8903 Volvo models across 145 series are on record.
Data for the version built 2008 · Data origin: Official register · sources
More machines from model year 2008
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Volvo FM9 – chassis with a 9-litre six-cylinder: power levels of 300, 340 and 380 hp, 4x2 and 6x2 axle formulas, gross weights from 20,000 to 30,000 kg
The Volvo FM9 carries the inline six-cylinder D9 of around 9 litres, which gives the series its name. The suffixes 300, 340 and 380 in model designations such as FM9 340 give the respective engine output in horsepower, and the axle formulas 4x2 and 6x2 the number of axles and driven axles of the chassis.
Read on 4 more paragraphs
The register lists 6 versions with 191 to 286 kW from six-cylinder engines of 9,360 to 9,365 cc. Kerb weights range from 10,290 to 20,540 kg, gross vehicle weights from 20,000 to 30,000 kg. Lengths run from 6,700 to 10,510 mm, widths from 2,500 to 2,600 mm.
With the 9-litre six-cylinder, the FM9 occupied the middle segment between the lighter FL and the heavy FM/FH with 12- and 13-litre engines; as a tractor unit and chassis for tipper and box bodies it was widespread in distribution and regional long-haul transport.
On a used example, checks should cover corrosion on the frame outriggers and spring brackets, the condition of the fifth-wheel coupling on tractor units, sealing of the charge-air cooler and exhaust-gas recirculation on the six-cylinder engine, and on 6x2 chassis the condition of the tag axle; spare parts are widely available through Volvo's service network.
With gross vehicle weights from 20,000 to 30,000 kg, these chassis belong to EU class N3 (over 12 t); operating them requires a category CE driving licence, a tachograph and compliance with driving and rest times, plus, on most European long-haul roads, a distance-based toll. The Euro 3 to Euro 5 emissions standards that applied to vehicles of this period technically forced increasing use of exhaust-gas recirculation, and from Euro 5 onward often SCR catalysis with AdBlue dosing as well.
Sources: SpecCodex register, model data: Volvo FM9
Technical data
Engine
| Power | 286 kWcorrect |
|---|---|
| Displacement | 9,360 cm³correct |
Dimensions and weights
| Length | 8,000 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Unladen weight | 11,200 kgcorrect |
| Gross vehicle weight | 30,000 kgcorrect |
Frequently asked questions
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
