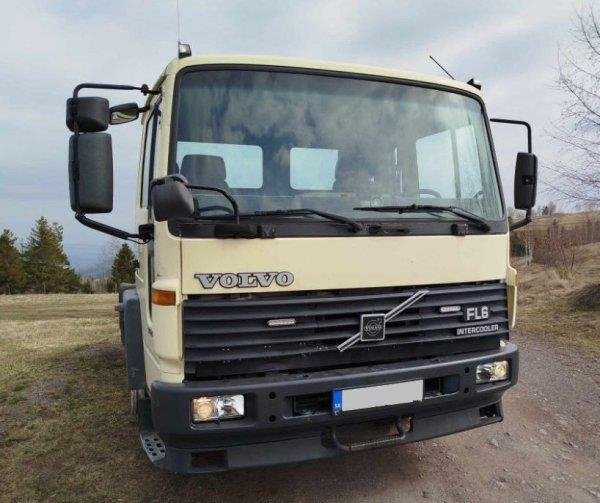

Volvo FL611L4X2

Built: 2002 · Series: Trucks 3.5–12 t (Class N2)

More machines from model year 2002

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo FL611L4X2 is a model in the Trucks 3.5–12 t (Class N2) series. Production: 2002. The engine delivers 132 kW, has 6 cylinders, with a displacement of 5,480 cm³. The machine is 7,900 mm long and 2,500 mm wide. The unladen weight is 6,900 kg. The gross vehicle weight is 11,000 kg. The Trucks 3.5–12 t (Class N2) series covers 161 models. Rated output within it ranges from 48 to 405 kW; the FL611L4X2 sits in the lower part of that range with 132 kW. Its immediate neighbours are the FL608-L/400 below it with 129 kW and the FL611-L-460/4900 above it with 154 kW. Unladen weight within it ranges from 2,600 to 9,050 kg; here the FL611L4X2 sits in the upper part of that range with 6,900 kg. 8903 Volvo models across 145 series are on record.

Volvo trucks 3.5–12 t (Class N2) – a collective page of Volvo ranges by EU vehicle class: the F range of the 1960s to 1980s, FL distribution trucks and military all-wheel-drive vehicles, engine outputs 48 to 405 kW

Class N2 groups trucks with a gross vehicle weight of between 3.5 and 12 tonnes; for Volvo, this page draws mainly on the classic F range (F82 to F612), Volvo's conventional and cab-over trucks of the 1960s to 1980s, supplemented by the FL range built from the late 1980s for distribution traffic and a handful of military all-wheel-drive vehicles such as the CO3.

Read on 3 more paragraphs

The register lists 161 versions with engine outputs of 48 to 405 kW, displacements of 2,970 to 12,130 cm³, four to eight cylinders, unladen weights of 2,405 to 11,100 kg and gross vehicle weights of 3,780 to 12,000 kg.

The F range formed the backbone of Volvo's medium and heavy truck programme for decades before being gradually replaced from the late 1980s by the FL, FH and FM; it thus represents an era in which Volvo, alongside Scania, established itself as a leading Scandinavian commercial vehicle maker. The B-series types that also appear in the model list stem instead from Volvo's bus chassis programme and show how broadly the Class N2 grouping is drawn — purely by gross vehicle weight, regardless of the vehicle's actual purpose.

On these older Volvo trucks, what counts is corrosion on the frame, cab mounts and load bed, the condition of the engine and mechanical injection pump, wear on the clutch and manual gearbox, and — for vehicles of this age — a limited parts supply organised through specialists and vintage-vehicle dealers.

Sources: SpecCodex register, model data: Volvo Klasse N2, Volvo Trucks (manufacturer)

Technical data

Engine

Power132 kWcorrect
Cylinders6correct
Displacement5,480 cm³correct

Dimensions and weights

Length7,900 mmcorrect
Width2,500 mmcorrect
Unladen weight6,900 kgcorrect
Gross vehicle weight11,000 kgcorrect

Where this model stands

Power-to-weight ratio: 19.1 kW/t (132 kW / 6.9 t)

Stronger than 15% of the trucks in the register — out of 25,241 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo FL611L4X2 have?

The Volvo FL611L4X2 delivers 132 kW.

How much does the Volvo FL611L4X2 weigh?

The unladen weight is 6,900 kg.

What is the gross vehicle weight of the Volvo FL611L4X2?

11,000 kg.

What engine does the Volvo FL611L4X2 have?

6 cylinders, 5,480 cm³ displacement.

What are the dimensions of the Volvo FL611L4X2?

7,900 mm × 2,500 mm.

When was the Volvo FL611L4X2 built?

Production years: 2002.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
