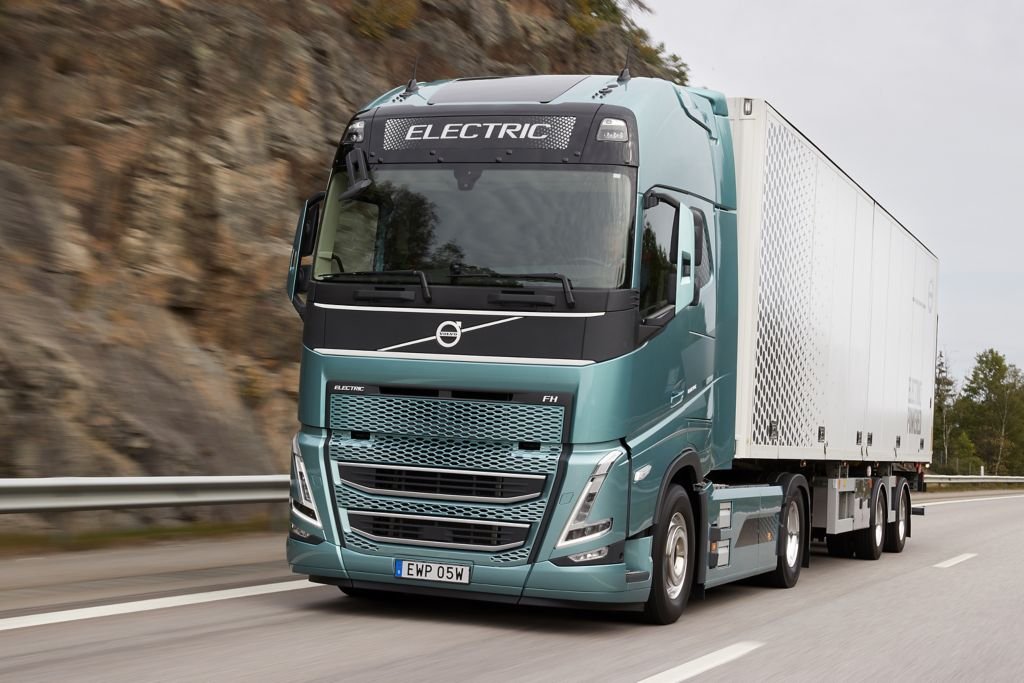

Volvo FH

Built: 1992-2026 · Series: FH

More machines from model year 1992

The FH from Volvo is part of the FH series. Production: 1992-2026. The engine delivers 405 kW, has 8 cylinders, with a displacement of 16,123 cm³. The vehicle is 12,610 mm long and 2,600 mm wide. The unladen weight is 63,750 kg. The wheelbase measures 9,760 mm. Top speed is 110 km/h. The gross vehicle weight is 64,000 kg. The vehicle runs on 16 wheels. The gearbox offers 12 gears. The FH series covers 1369 models. Rated output within it ranges from 188 to 552 kW; the FH sits in the middle of that range with 405 kW. Its immediate neighbours are the 550 8X4 below it with 404 kW and the 550 6X4 above it with 413 kW. Unladen weight within it ranges from 7,060 to 63,750 kg; here the FH sits at the top of that range with 63,750 kg. 8903 Volvo models across 145 series are on record.

Volvo FH — F is forward control, H is high entry

Volvo's letters describe the cab, not a model number. F means forward control: the driver sits above the engine, not behind it. H stands for high entry. FH is therefore literally the forward-control truck with the tall cab — the long-haul member of the range.

Read on 4 more paragraphs

The same system explains its siblings: FM is the forward-control truck with the medium-height cab, FL the one with the low cab. FMX adds an X for Xtreme to the M and means the reinforced version for heavy terrain. Read those four abbreviations once and the whole Volvo range falls into place without opening a data sheet.

Older vehicles carry a number after the abbreviation: FH12, FH16. It gives displacement in litres, not output. An FH16 therefore has a sixteen-litre engine. Newer listings usually put the power in horsepower there instead — FH 460, FH 500. Both notations circulate side by side; confusing them turns a twelve-litre engine into a twelve-horsepower vehicle or the reverse.

The FH has been in the range since 1993 and has been fundamentally renewed several times. More than three decades separate an early FH12 from a current FH. The designation alone says nothing about that — first registration and emissions standard are the dependable figures.

More important for the purchase than the letters is the axle configuration. 4x2 means four wheels, two of them driven; 6x2 adds an axle without drive, 6x4 has two driven rear axles. Anyone facing heavy trailer loads or unmade roads finds the answer there, not in the cab letter.

Sources: Wikipedia: Volvo FM (Wikipedia), Tractor & Construction Plant Wiki, Wikipedia: Volvo FL (Wikipedia)

Technical data

Engine

Power405 kWcorrect
Cylinders8correct
Displacement16,123 cm³correct

Dimensions and weights

Length12,610 mmcorrect
Width2,600 mmcorrect
Wheelbase9,760 mmcorrect
Unladen weight63,750 kgcorrect
Gross vehicle weight64,000 kgcorrect

Drivetrain and chassis

Gears12correct
Wheels16correct
Top speed110 km/hcorrect

Where this model stands

Power-to-weight ratio: 6.4 kW/t (405 kW / 63.8 t)

Stronger than 91% of the trucks in the register — out of 25,242 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo FH have?

The Volvo FH delivers 405 kW.

How much does the Volvo FH weigh?

The unladen weight is 63,750 kg.

What is the gross vehicle weight of the Volvo FH?

64,000 kg.

What engine does the Volvo FH have?

8 cylinders, 16,123 cm³ displacement.

How fast does the Volvo FH go?

Top speed is 110 km/h.

What are the dimensions of the Volvo FH?

12,610 mm × 2,600 mm.

When was the Volvo FH built?

Production years: 1992-2026.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 16 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
