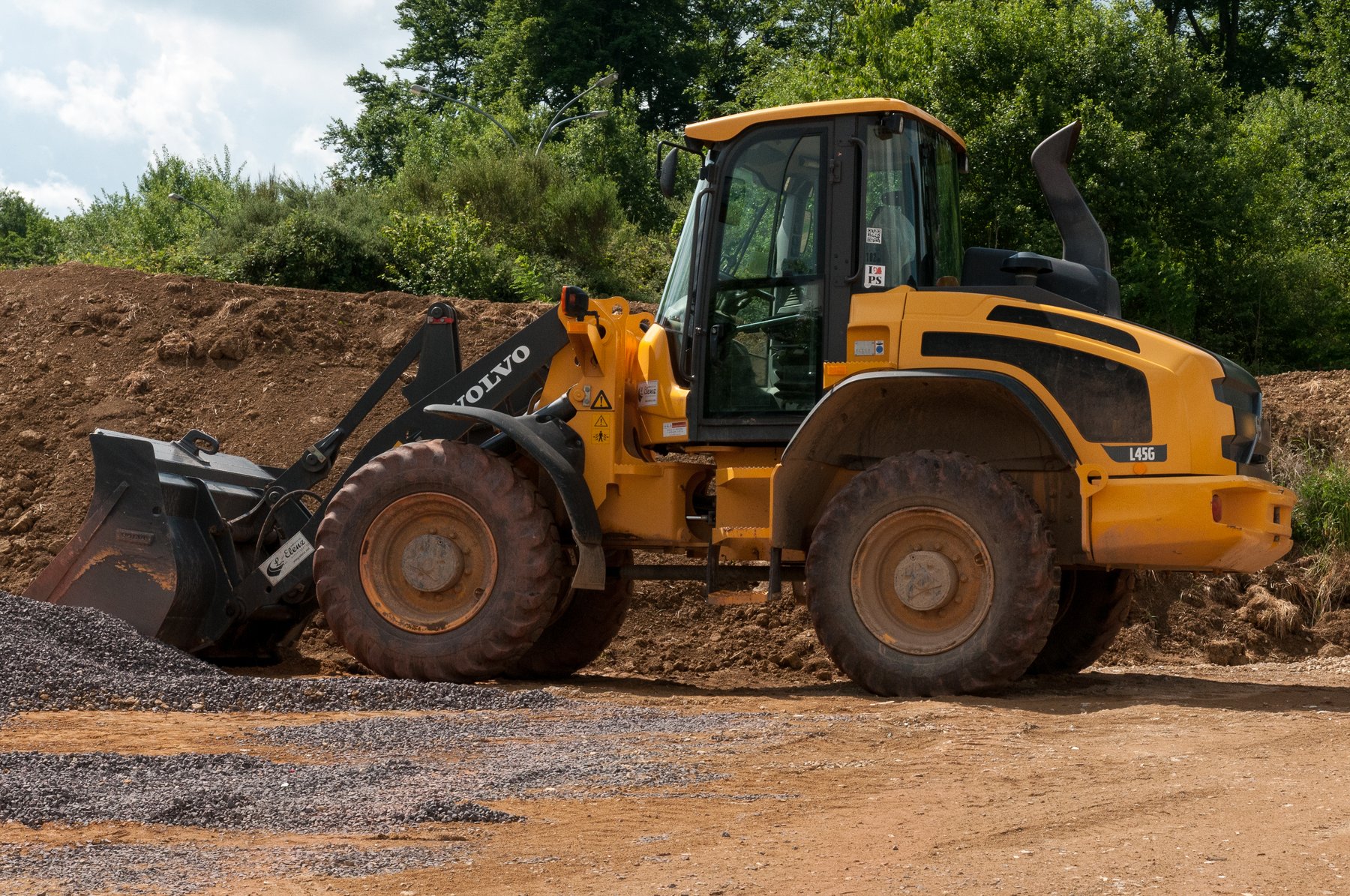

Volvo L45G

Series: Volvo Wheel Loader

Source: https://commons.wikimedia.org/w/index.php?curid=59671656 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The L45G from Volvo is part of the Volvo Wheel Loader series. The engine delivers 102.4 hp (73.1 kW), with a displacement of 4,000.1 cm³. Torque is 405.4 Nm. Rated speed is 1,800 rpm. The unladen weight is 8,630 kg. The wheelbase measures 2,651.8 mm. Ground clearance is 435.9 mm. The tank holds 150.3 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,450 rpm. The pump delivers 132.1 l/min. The hydraulic tank holds 95 litres. The cooling system holds 20.1 litres. The electrical system runs on 24 V. The engine fitted is the D4H. The Volvo Wheel Loader series covers 83 models. Rated output within it ranges from 31.4 to 539.4 hp; the L45G sits at the bottom of that range with 102.4 hp. Its immediate neighbours are the L45H below it with 101.4 hp and the L50D above it with 102.9 hp. 5366 Volvo models across 29 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD4Hcorrect
Power102.4 hp (73.1 kW)correct
Rated speed1,800 rpmcorrect
Torque405.4correct
Speed at max. torque1,450 rpmcorrect
Displacement4,000.1 cm³correct
Coolant capacity20.1 lcorrect

Dimensions and weights

Wheelbase2,651.8correct
Ground clearance435.9correct
Unladen weight8,630 kgcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmissioncorrect
Forward gears3correct
Reverse gears3correct
System voltage24 Vcorrect

Working data

Pump flow132.1 l/mincorrect
Hydraulic oil capacity95 lcorrect
Fuel tank capacity150.3 lcorrect

Other data

Height2,990.1correct

Where this model stands

Power-to-weight ratio: 8.5 kW/t (73 kW / 8.6 t)

Stronger than 36% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo L45G have?

The Volvo L45G delivers 102 hp.

How much does the Volvo L45G weigh?

The unladen weight is 8,630 kg.

What engine does the Volvo L45G have?

4,000 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
