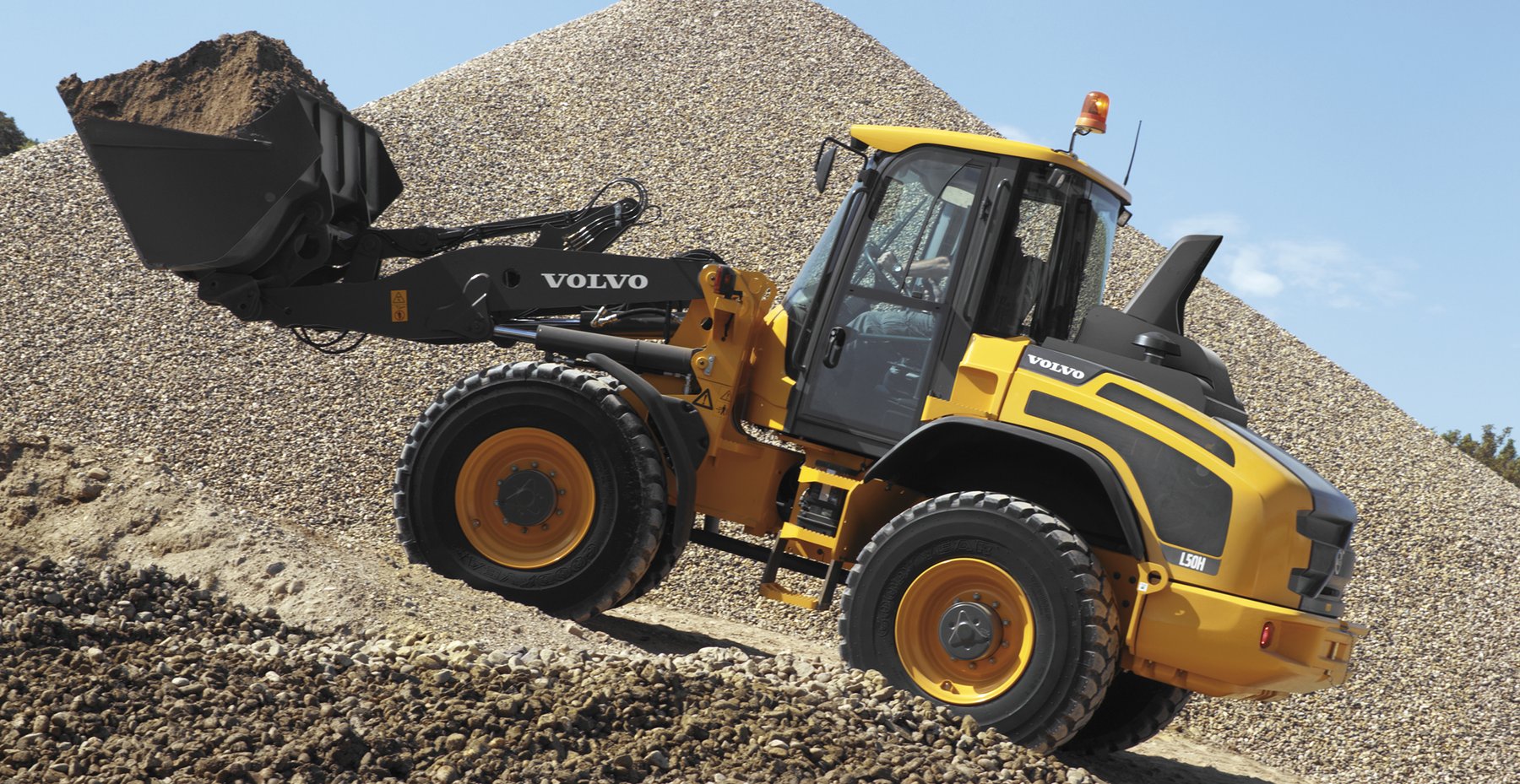

Volvo L45H

Series: Volvo Wheel Loader

Source: https://www.volvoce.com/deutschland/de-de/products/wheel-loa

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo Wheel Loader series from Volvo includes the L45H. The engine delivers 101.4 hp (73 kW), has 4 cylinders, with a displacement of 4,000.1 cm³. Rated speed is 2,200 rpm. The wheelbase measures 2,651.8 mm. Ground clearance is 396.2 mm. The tank holds 150.3 litres. Maximum torque is reached at 1,450 rpm. The pump delivers 132.1 l/min. The hydraulic tank holds 95 litres. The cooling system holds 20.1 litres. The engine fitted is the Volvo D4J. The Volvo Wheel Loader series covers 83 models. Rated output within it ranges from 31.4 to 539.4 hp; the L45H sits at the bottom of that range with 101.4 hp. Its immediate neighbours are the L45B below it with 98.3 hp and the L45G above it with 102.4 hp. 5366 Volvo models across 29 series are on record. The model is listed under Wheel loaders. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine modelVolvo D4Jcorrect
Power101.4 hp (73 kW)correct
Rated speed2,200 rpmcorrect
Speed at max. torque1,450 rpmcorrect
Cylinders4correct
Displacement4,000.1 cm³correct
Aspirationturbochargedcorrect
Coolant capacity20.1 lcorrect

Dimensions and weights

Wheelbase2,651.8correct
Ground clearance396.2correct

Working data

Pump flow132.1 l/mincorrect
Hydraulic oil capacity95 lcorrect
Fuel tank capacity150.3 lcorrect

Other data

Height2,950.5correct

Frequently asked questions

How much power does the Volvo L45H have?

The Volvo L45H delivers 101 hp.

What engine does the Volvo L45H have?

4 cylinders, 4,000 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
