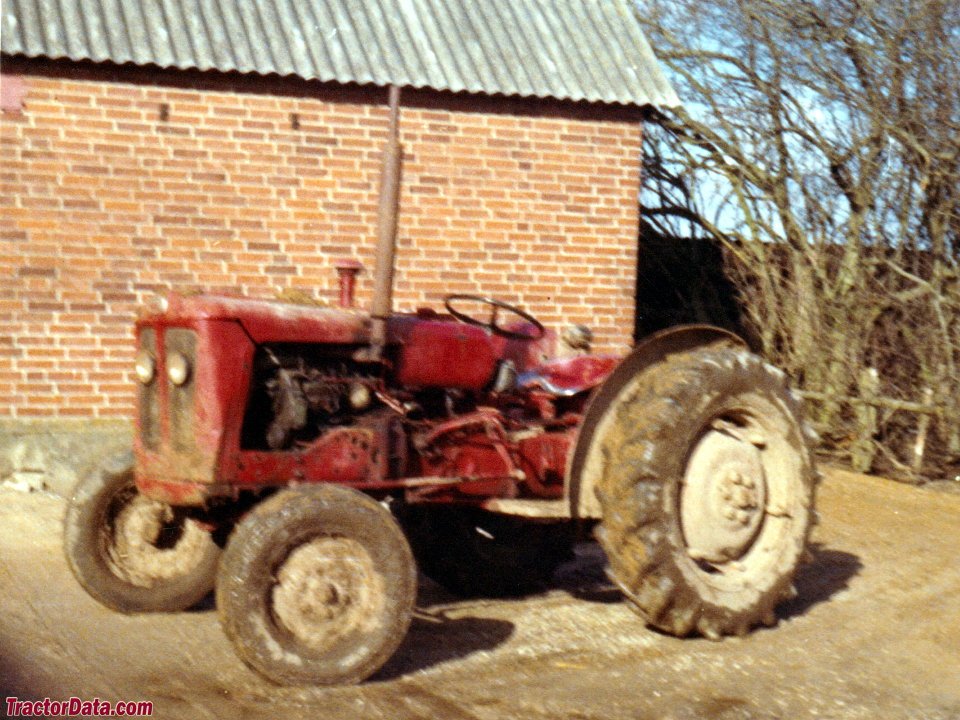

Volvo Bm T320
Built: 1961-1961 · Series: Other models
More machines from model year 1961
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Volvo Bm T320 rolled off the line in 1961 as a tractor. 27 kW is what the three-cylinder engine gets out of 2.5 litres.
Dimensions are 3.10 m by 2.24 m. Unladen, it tips the scales at 1,700 kg.
Within the range, rated power spans from 21 to 103 kW; with 27 kW, the T320 sits at the bottom end. Directly alongside are the 230 Victor with 24 kW below and the BM Volvo BM-320 B Buster with 28 kW above.
Volvo BM – other models: collective page of Swedish tractors outside the named ranges, from the Buster and Boxer to the Victor and Bison, 21 to 103 kW, Volvo and Perkins engines
This page gathers the Volvo BM tractors the register could not assign to a named range, with the animal-named ranges Buster, Boxer, Victor and Bison as well as numerous T types. Volvo BM was formed in 1950 from the merger of Volvo's tractor operations with the Swedish farm-machinery maker Bolinder-Munktell of Eskilstuna; the agricultural division passed to the Finnish group Valmet in 1979. The T numbers such as the T 650 or T 814 give roughly the engine power in hp, while the Buster, Boxer or Victor suffix denotes the respective model range.
Read on 3 more paragraphs
The register lists here 39 versions with 21 to 103 kW from two- to six-cylinder engines of 1,800 to 5,483 cm³, unladen weights of 1,570 to 7,500 kg, gross weights up to 8,440 kg, lengths of 2,750 to 4,650 mm, widths of 1,249 to 2,450 mm and heights of 2,250 to 3,050 mm; torque ranges from 218 to 485 Nm at rated speeds of 2,200 to 2,300 rpm. Engines came from Volvo, Volvo BM, Perkins and Bolinders.
Until its sale to Valmet, Volvo BM was one of the leading Scandinavian tractor makers, with a strong position in Sweden, Norway and Finland; the rugged models were particularly sought after for forestry and municipal work in the Nordic climate.
When buying used, rust on the frame and cab, the condition of the hydraulic pump and clutch, and on the larger T models the front-axle bearings all matter. Parts partly overlap with later Valmet and Valtra stock, but are increasingly only found through specialists.
Technical data
Engine
| Power | 27 kWcorrect |
|---|---|
| Cylinders | 3correct |
| Displacement | 2,500 cm³correct |
Dimensions and weights
| Length | 3,100 mmcorrect |
|---|---|
| Width | 2,240 mmcorrect |
| Unladen weight | 1,700 kgcorrect |
Drivetrain and chassis
| Gears | 5correct |
|---|
Where this model stands
Power-to-weight ratio: 15.9 kW/t (27 kW / 1.7 t)
Power class: Compact (< 40 hp)
Stronger than 22% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Volvo Bm T320 have?
The Volvo Bm T320 delivers 27 kW.
How much does the Volvo Bm T320 weigh?
The unladen weight is 1,700 kg.
What engine does the Volvo Bm T320 have?
3 cylinders, 2,500 cm³ displacement.
What are the dimensions of the Volvo Bm T320?
3,100 mm × 2,240 mm.
When was the Volvo Bm T320 built?
Production years: 1961.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
