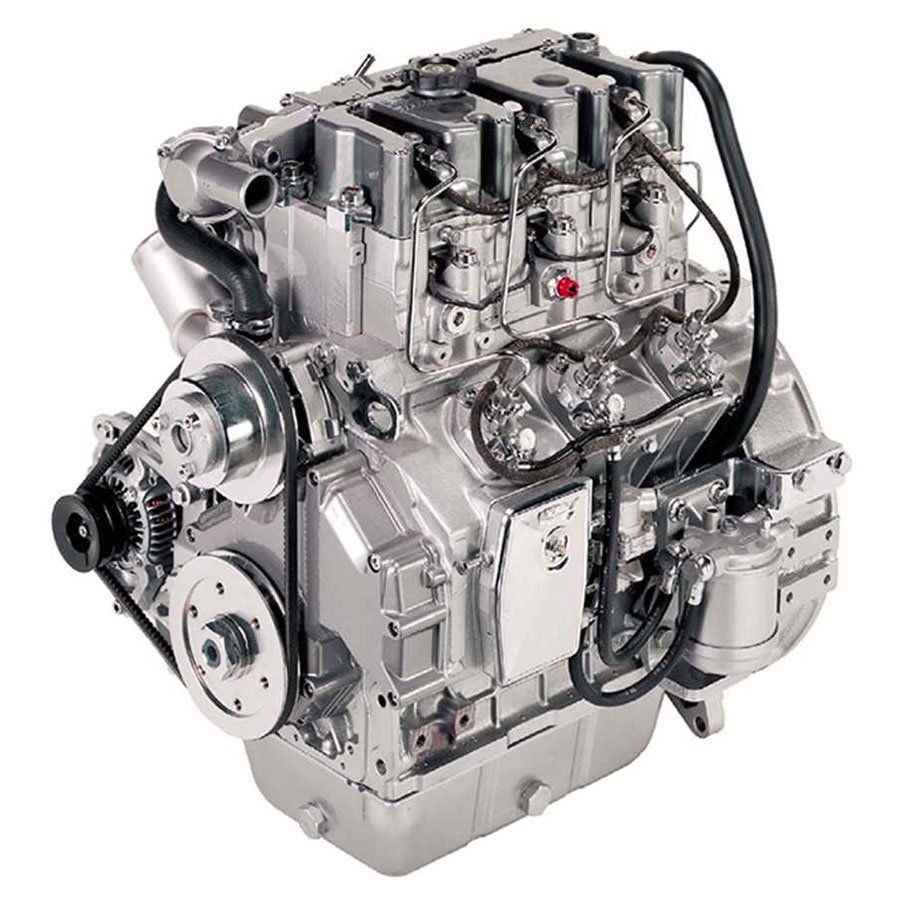

VM Motori 50D – three-cylinder diesel engine from Cento, model year 2014: EPA nonroad certification, 34 to 50 kW, around 2.2 litres, Tier 4 Final, direct injection
VM Motori of Cento, Emilia-Romagna, builds small and medium diesel engines for farm machinery, construction equipment and stationary applications such as generator sets and compressors. This page gathers the versions of the 50D range under the EPA certification spelling VM Motori, a three-cylinder unit in the lower nonroad power class.
Read on 3 more paragraphs
The register lists here five versions (50D/1 to 50D/6) with 34 to 50 kW rated output at 2,500 to 2,600 rpm, as a three-cylinder inline engine with 94 mm bore and 107 mm stroke, equal to a displacement of around 2.2 litres. The turbocharger runs a fixed wastegate geometry, injection is direct, and the specified fuel is low-sulphur diesel at 7 to 15 ppm sulphur. The engine is certified to Tier 4 (Final or Phase-in), in the 37 to under 56 kW power category, model year 2014; maximum torque ranges from 160 to 250 Nm at 1,800 rpm.
The compact three-cylinder suits mini excavators, compact loaders, generator sets and smaller compressors; VM Motori here chiefly supplies equipment makers with no small-diesel production of their own, competing with Kubota, Yanmar and Perkins.
On a used purchase, operating hours and service history count, the condition of the turbocharger, the tightness of charge-air hoses and cooler, the condition of the injector nozzles, and the fuel filter and water separator when running on low-sulphur diesel; rough idling or excessive smoke on cold start points to wear in the injection system. Spares run through VM Motori's Italian distribution.
Sources: SpecCodex register, model data: VM Motori 50D
Technical data
Engine
| Engine code | 50D/2correct |
|---|---|
| Engine family | EV5XL02.2R3Ncorrect |
| Engine families | EV5XL02.2R3Ncorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 49 kWcorrect |
| Power band | 37<=kW<56correct |
| Rated speed | 2,600 rpmcorrect |
| Maximum torque | 220 N·mcorrect |
| Speed at max. torque | 1,800 rpmcorrect |
| Cylinders | 3correct |
| Cylinder layout | in linecorrect |
| Bore | 94 mmcorrect |
| Stroke | 107 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | Fixed waste gate turbochargercorrect |
| Charge-air cooling | aircorrect |
| Emissions stage | Tier 4 (Final or Phase In)correct |
Origin and approval
| Version | 50D/2correct |
|---|---|
| Built from | 2014correct |
| Built to | 2014correct |
| Model year from | 2014correct |
| Model year to | 2014correct |
Frequently asked questions
How much power does the VM Motori 50D/2 have?
The VM Motori 50D/2 delivers 49 kW.
When was the VM Motori 50D/2 built?
Production years: 2014.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
