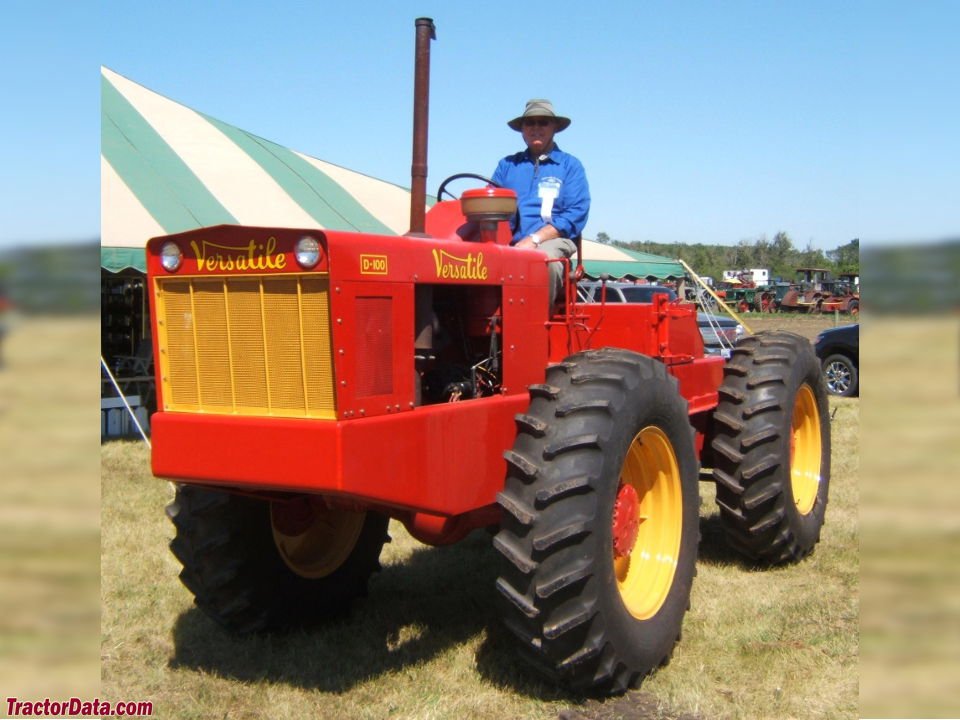

Versatile D100
Built: 1966-1966 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Versatile D100 rolled off the line in 1966 as a tractor. The six-cylinder engine, displacing 5.9 litres, produces 75 kW.
It runs on diesel; the engine is water-cooled. It was replaced by the Versatile D-118. Within the range, rated power spans from 75 to 451 kW; with 75 kW, the D100 sits at the bottom end. The next one up is the D-118 with 88 kW.
Technical data
Engine
| Engine make | Fordcorrect |
|---|---|
| Engine model | 2,074 Ecorrect |
| Fuel | dieselcorrect |
| Power | 100 hp (75 kW)correct |
| Cylinders | 6correct |
| Displacement | 5,948.5 cm³ (363 ci)correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 198 in (5029,2 mm)correct |
|---|---|
| Width | 69 in (1752,6 mm)correct |
| Wheelbase | 108 in (2743,2 mm)correct |
| Turning circle | 13 ftcorrect |
| Unladen weight | 14,000 lbs (6350,3 kg)correct |
Drivetrain and chassis
| Drive | four-wheel driveWDcorrect |
|---|---|
| Gearbox type | Spicer 5852correct |
| Forward gears | 12correct |
| Reverse gears | 4correct |
| Forward gears | 4correct |
| Tyre size | 16.9x30correct |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 83.3 l/mincorrect |
|---|---|
| Hydraulic pressure | 122correct |
Origin and approval
| Plant | Winnipeg, Manitoba, Canadacorrect |
|---|---|
| Predecessor | new modelcorrect |
| Successor | Versatile D-118correct |
Frequently asked questions
How much power does the Versatile D100 have?
The Versatile D100 delivers 100 hp.
What engine does the Versatile D100 have?
6 cylinders, 5,948 cm³ displacement, Diesel.
When was the Versatile D100 built?
Production years: 1966.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
