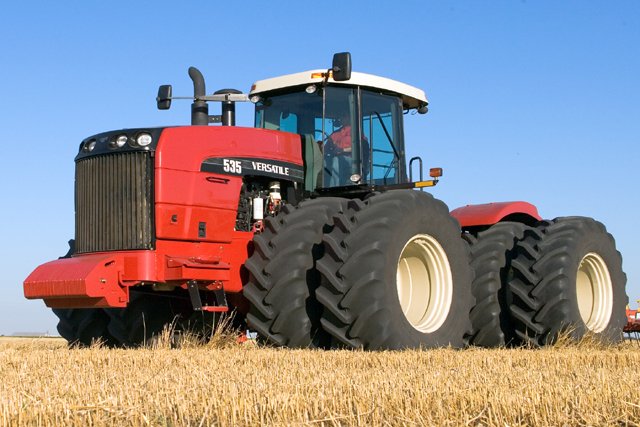

Versatile 535
Built: 2008-2011 · Series: Other models
The Versatile 535 is a tractor built in 2008-2011. It is powered by a six-cylinder engine producing 398.9 kW.
Power is transmitted through a Quadshift (12F/4R) and Caterpillar full power shift (16F/4R) gearbox, drive type: 4WD (articulated).
It runs on diesel; the engine is water-cooled. As standard, it runs on 710/70R42 tyres at the front and 710/70R42 at the rear. Within the range, rated power spans from 75 to 451 kW; with 399 kW, the 535 sits at the top. Directly alongside are the 520 with 388 kW below and the 570 with 425 kW above.
Technical data
Engine
| Engine make | Cumminscorrect |
|---|---|
| Engine model | QSX15correct |
| Fuel | dieselcorrect |
| Power | 535 hp (398.9 kW)correct |
| Cylinders | 6correct |
| Displacement | 14.9 lcorrect |
| Bore | 137 mmcorrect |
| Stroke | 169 mmcorrect |
| Turbocharger | yescorrect |
| Cooling | liquid-cooledcorrect |
Dimensions and weights
| Length | 759 cmcorrect |
|---|---|
| Height | 344 cmcorrect |
| Wheelbase | 391 cmcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | Quadshift (12F/4R) or Caterpillar full power shift (16F/4R)correct |
| Forward gears | 12correct |
| Reverse gears | 4correct |
| Front tyres | 710/70R42correct |
| Rear tyres | 710/70R42correct |
Origin and approval
| Plant | Winnipeg, Manitoba, Canadacorrect |
|---|---|
| Cab | Enclosed, air-conditionedcorrect |
Frequently asked questions
How much power does the Versatile 535 have?
The Versatile 535 delivers 535 hp.
What engine does the Versatile 535 have?
6 cylinders, Diesel.
When was the Versatile 535 built?
Production years: 2008-2011.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 25 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
