Valmet 805 – specifications
Series: Other models
Build year not documented · Data origin: Official register, Reference work (Wikipedia/Wikibooks) · sources

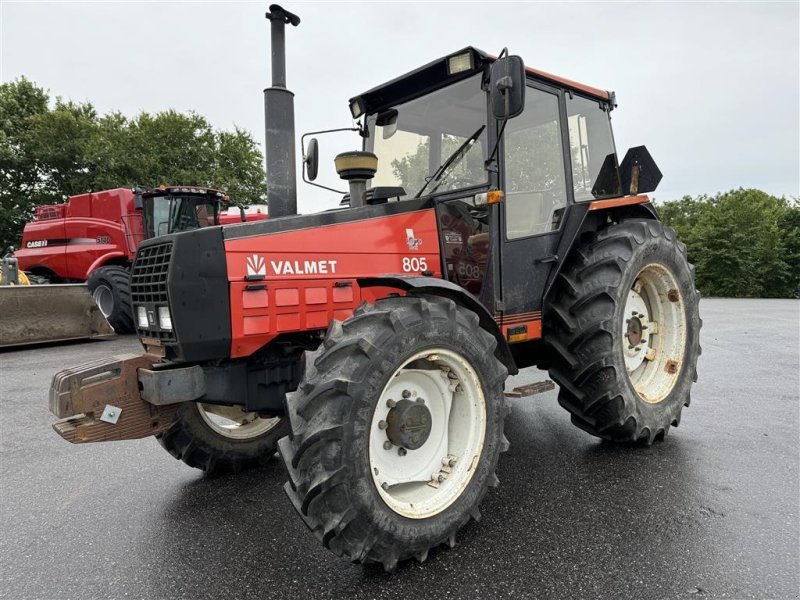

The Valmet 805 is an agricultural tractor produced in Finland in 1983. As a model of the 805 series, this tractor is positioned in the mid-power segment. The design follows a half-frame construction, ensuring a compact and stable structure. The vehicle is equipped with a selectable four-wheel drive system, which improves traction on various surfaces. The dimensions, with a length of 4,515 mm and a width of 2,130 mm, define the space requirements during operation and transport.
The installed Valmet diesel engine features four cylinders and a displacement of 4,397 cm³. At a rated speed of 2,100 rpm, it delivers an output of 95 hp. The maximum torque of 366 Nm provides sufficient pulling force for heavy implements. A torque rise of 16% allows the engine to absorb load peaks without immediate downshifting. Water cooling stabilizes the operating temperature even under prolonged stress. The transmission offers various gear counts depending on the version, with the top speed limited to 30 km/h. The tank holds 180 l of diesel fuel, allowing for long operating times without refueling.
The power take-off shaft delivers speeds of 540 or 1,000 rpm, suitable for different implements. The Category II rear linkage lifts rear-mounted implements. With a ground clearance of 475 mm, the tractor can be used on uneven terrain. The turning radius of 4,000 mm affects maneuverability on small field plots. The design and technical specifications are aligned with the requirements of typical field work in this power class.
Valmet – other models: the collective page of the Finnish and Brazilian tractors outside the named ranges, from the Valmet 15 and 20 of the 1950s through the 361 D, 502 and 705 to the Brazilian 65
This page gathers the Valmet tractors the register could not assign to a named range – the Finnish state group Valtion Metallitehtaat that built Finland's first tractor in 1951 in Tourula near Jyväskylä with the Valmet 15, moved tractor production to Suolahti in 1969 and in 1960 founded a second tractor plant in Mogi das Cruzes near São Paulo, which still produces today as Valtra do Brasil. The type logic: the early models 15, 20 and 33 give the hp class, the three-digit 359, 361, 502, 565, 702 and 705 of the 1960s and 1970s the size in the first digit and the generation in the following ones, D the diesel, -4 four-wheel drive; the Brazilian 65, 85, 118 and 148 give the hp class, and the 118 Alcool is a tractor with ethanol engine from the Brazilian alcohol programme of the 1980s – noted in the register as fuel Alcohol. The engines are Valmet's own from Linnavuori, in Brazil MWM diesels built under licence; in 1997 the name passed to Valtra with the sale to Sisu.
Read on 3 more paragraphs
The register lists here 179 versions with 11 to 140 kW from three- to six-cylinders of 1,400 to 7,400 cm³, torque from 157 to 691 Nm, unladen weights from 780 to 12,000 kg, gross weights from 1,250 to 20,000 kg, lengths from 2,500 to 5,720 mm, widths from 1,120 to 2,680 mm and heights from 1,350 to 3,100 mm.
Valmet was the tractor of Finnish farming and forestry and is still one of the big brands in Brazil today; the 6000s and 8000s of the 1990s laid the foundation for Valtra's success in Western Europe.
On used tractors, originality and engine condition count on the classics, clutch, gearbox and hydraulics on the 500s and 700s, HiShift shuttle and electronics on the 6000s; parts run through Valtra and AGCO, in Brazil through Valtra do Brasil.
Sources: SpecCodex register, model data: Valmet (weitere Modelle), Valtra (AGCO, Rechtsnachfolger Valmet)
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| ● 805 | — | 69.9 | — | Official register |
| 805 4WD | — | — | — | Official register |
Technical data
Engine
| Engine make | Valmet Dieselcorrect |
|---|---|
| Fuel | dieselcorrect |
| Fuel | dieselcorrect |
| Power | 95 hp (69.9 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Rated speed | 2.100/mincorrect |
| Torque | 366 Nmcorrect |
| Cylinders | 4correct |
| Cylinders | 4 Hubraumcorrect |
| Displacement | 4,397 cm³correct |
| Cooling | water-cooledcorrect |
| Cooling system | water-cooledcorrect |
| Torque rise | 16 %correct |
Dimensions and weights
| Length | 4,515 mmcorrect |
|---|---|
| Width | 2,130 mmcorrect |
| Height | 2,705 mmcorrect |
| Wheelbase | 2,385 mmcorrect |
| Ground clearance | 475 mmcorrect |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/4 R, 14 V/8 R and 16 V/8 Rcorrect |
| Top speed | 30 km/hcorrect |
| Turning radius | 4,000 mmcorrect |
| Drive type | Heck-correct |
| Construction type | semi-frame constructioncorrect |
Working data
| Fuel tank capacity | 180 lcorrect |
|---|
Origin and approval
| Plant | Finlandcorrect |
|---|---|
| Production period | 1,983correct |
| Type | PEScorrect |
| Series/Model | 805/correct |
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
How much power does the Valmet 805 have?
The Valmet 805 delivers 95 hp.
What engine does the Valmet 805 have?
4 cylinders, 4,397 cm³ displacement, Diesel.
How fast does the Valmet 805 go?
Top speed is 30 km/h.
What are the dimensions of the Valmet 805?
4,515 mm × 2,130 mm × 2,705 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
