V16 Powered Big Bud 747 – specifications
Built: 1977 · Series: Other models
Data for the version built 1977 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1977
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

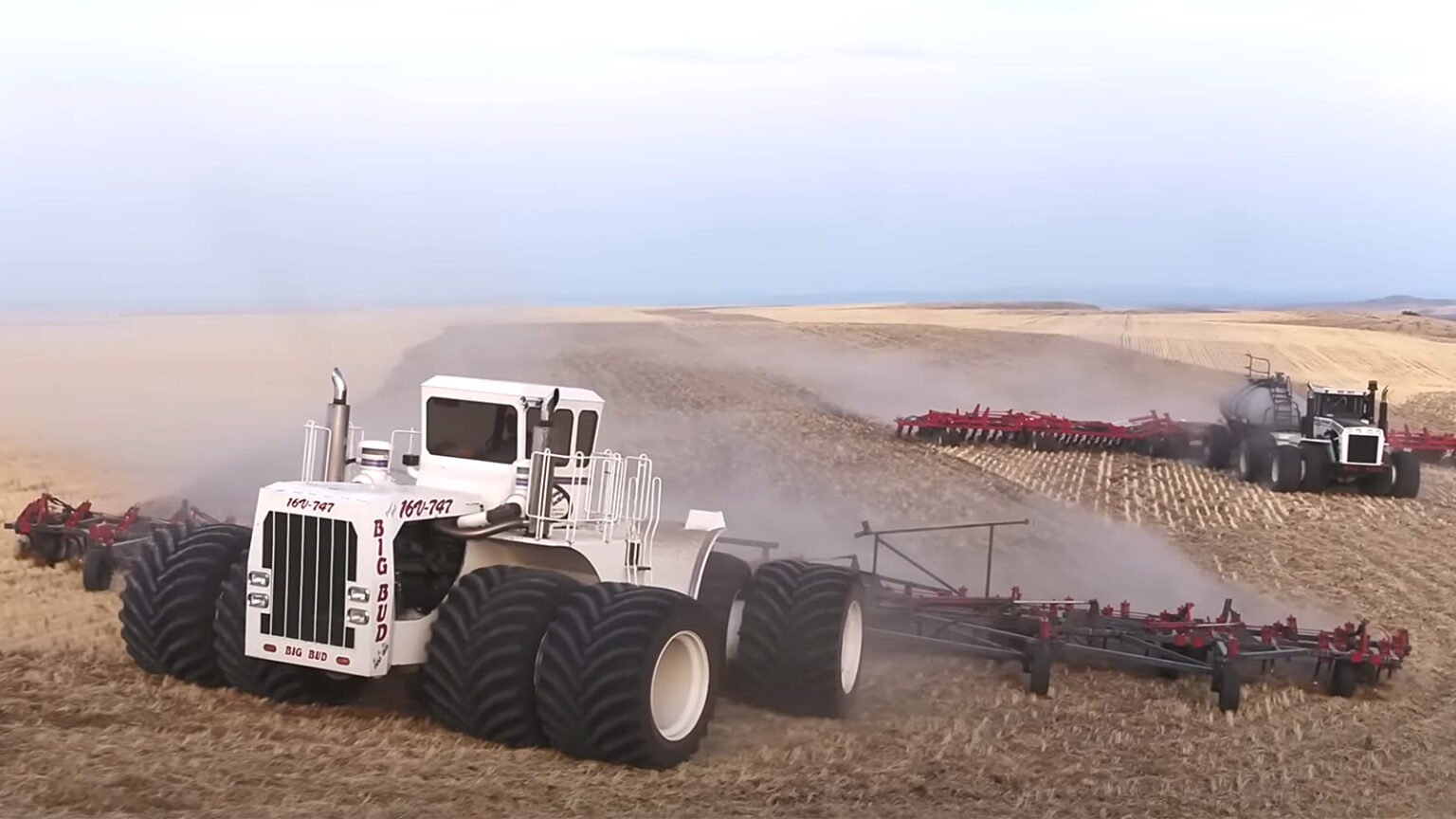

The Big Bud 747 is an extreme tractor built by V16 Powered in 1977 in Havre, Montana, USA. This model belongs to the tractor category and represents an exception in agricultural machinery engineering due to its dimensions. The manufacturer focused on designing a machine intended for use under extreme conditions. The production period was limited to this single year, underscoring the model's uniqueness.
The tractor is powered by a Detroit Diesel Series 92 16V92T engine with 16 cylinders and a displacement of 1,472 cu in. The output of 760 hp at a rated speed of 1,900 rpm enables the pulling of the heaviest implements. The curb weight of 100,000+ lbs ensures high traction but requires special transport permits. With six forward gears and one reverse gear, gear selection for field work is limited, concentrating its use on large, contiguous areas. All-wheel drive supports power transmission to the ground.
Within the model range, the Big Bud 747 stands as a one-off unit without direct sibling models. Due to its enormous dimensions of 28.5 ft in length, 20.9 ft in width, and 14 ft in height, this machine is typically suited for work on very large fields, where maneuverability is less of a priority than pure pulling power. The fuel tank capacity of 1,000 gal allows for long working intervals without refueling. The design is optimized for maximum pulling power at low speeds, making it predestined for specific large-scale field management applications.
Technical data
Engine
| Engine make | Detroit Dieselcorrect |
|---|---|
| Engine model | Series 92 16V92Tcorrect |
| Fuel | dieselcorrect |
| Power | 760 hpcorrect |
| Rated speed | 1,900 rpmcorrect |
| Cylinders | 16correct |
| Displacement | 1472 cu incorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 28.5 ftcorrect |
|---|---|
| Width | 20.9 ftcorrect |
| Height | 14 ftcorrect |
| Wheelbase | 16.25 ftcorrect |
| Unladen weight | 100, 000+ lbscorrect |
Drivetrain and chassis
| Drive | four-wheel driveWDcorrect |
|---|---|
| Forward gears | 6correct |
| Reverse gears | 1correct |
Working data
| Fuel tank capacity | 1,000 galcorrect |
|---|
Origin and approval
| Plant | Havre, Montana, USAcorrect |
|---|
Frequently asked questions
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
