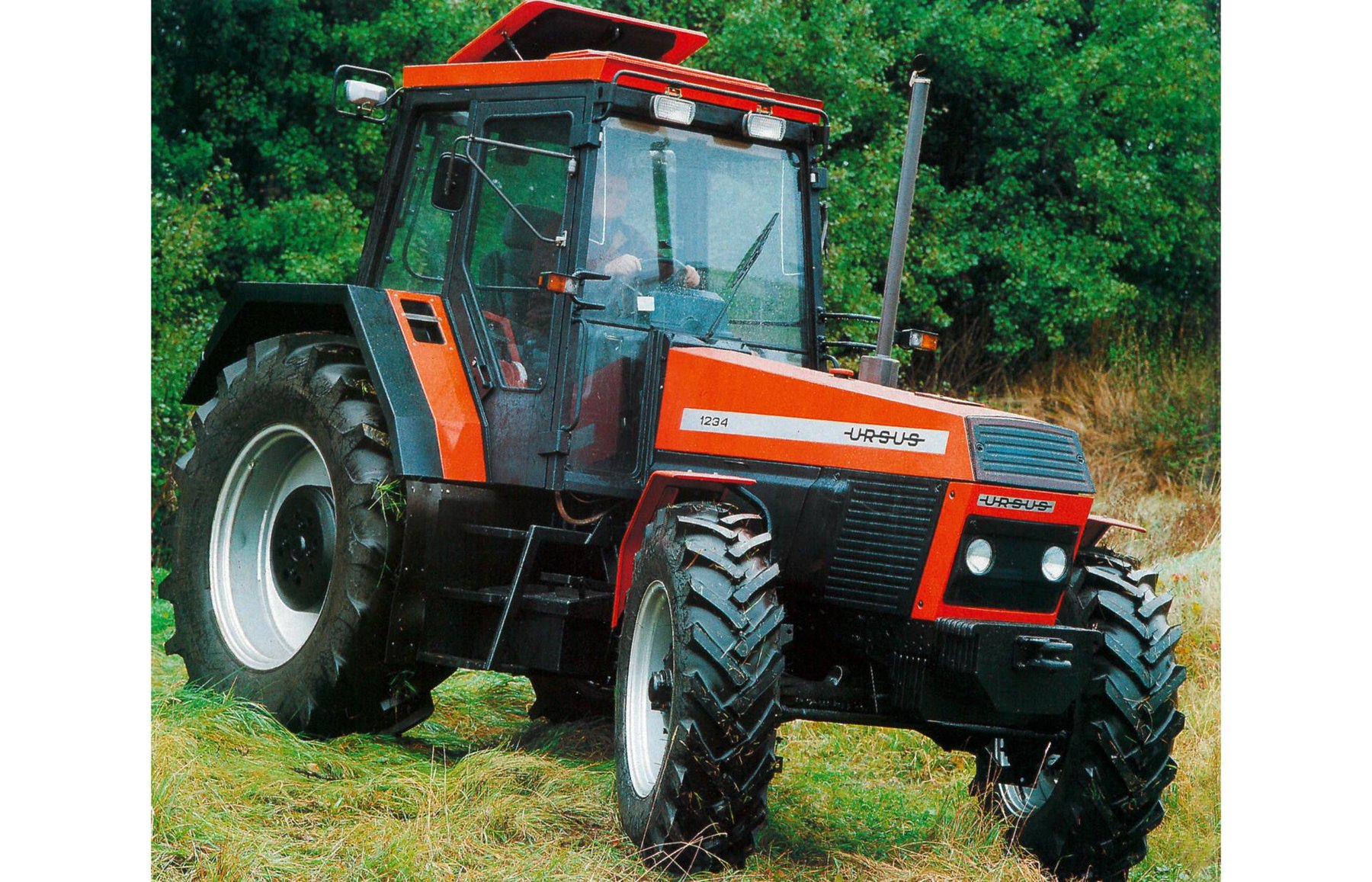

Ursus 1234 (85.3 kW)

Built: 1990–2009 · Series: 30 er-Serie

More machines from model year 1990

Source: https://www.profi.de/panorama/profi-damals/profi-damals-fahr

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 30er series from Ursus includes the 1234. Production: 1990–2009. The engine delivers 116 hp (85.3 kW), has 6 cylinders, with a displacement of 6,842 cm³. The engine comes from Ursus. Torque is 376 Nm. Rated speed is 2,200 rpm. The machine is 4,490 mm long, 2,280 mm wide and 2,980 mm high. The unladen weight is 6,555 kg. The wheelbase measures 2,710 mm. Ground clearance is 385 mm. Top speed is 30 km/h. The tank holds 120 litres. Transmission: 16 V/8 R. The engine is water-cooled. Tyres: front 14.9-24 AS, rear 18.4-38 AS. The model was built in Poland. The fuel is diesel. The bore measures 110 mm. The stroke is 120 mm. The compression ratio is 17:1. The gearbox offers 16 forward gears. There are also 8 reverse gears. The linkage is category II. The PTO runs at 540/1000 rpm. The 30 er-Serie series covers 5 models. Rated output within it ranges from 80 to 190 hp; the 1234 sits in the lower part of that range with 116 hp. Its immediate neighbours are the 1134 below it with 98 hp and the 1734 above it with 170 hp. Unladen weight within it ranges from 4,240 to 6,555 kg; here the 1234 sits at the top of that range with 6,555 kg. 221 Ursus models across 12 series are on record.

Ursus 30 series – the big farm tractors from Warsaw: 932/934 to 1934, 59 to 140 kW from four- and six-cylinder Ursus and ZTS Martin engines

The Ursus 30 series from Warsaw bundles the Polish maker's big four- to six-cylinder farm tractors. The type designations 932/934, 1134, 1234, 1734 and 1934 span the medium to big power class; the engines come from Ursus itself and from the Slovak engine maker ZTS Martin.

Read on 3 more paragraphs

The register lists here 5 versions with 58.8 to 139.7 kW or 80 to 190 hp from four- to six-cylinders of 4,562 to 7,299 cc, unladen weights from 4,240 to 6,555 kg, lengths from 4,130 to 4,580 mm, widths from 1,966 to 2,365 mm and heights from 2,920 to 3,550 mm, torque from 254 to 722 Nm at a rated speed of 2,200 rpm.

The 30 series formed, in Poland and the export markets of the Eastern Bloc, the upper power class of the Ursus programme for large farms and heavy draft work, above the more widespread smaller ranges of the brand. The shared use of Ursus and ZTS Martin engines reflects the close cooperation between tractor makers within the Eastern Bloc in building large farm machinery for collectivised agriculture across the region.

On the big Ursus tractors, what counts is the condition and compression of the four- or six-cylinder diesel, the condition of clutch and gearbox, the tightness of the hydraulics and lift, and rust on the cab and mudguards; parts are partly still available through Polish and Eastern European dealers.

Sources: SpecCodex register, model data: Ursus 30er-Serie, Ursus (manufacturer)

Technical data

Engine

Engine make	Ursuscorrect
Engine	Z 8701.12, 86 kW (117 KM)correct
Fuel	dieselcorrect
Power	116 hp (85.3 kW)correct
Rated speed	2,200 rpmcorrect
Torque	376 Nmcorrect
Cylinders	6correct
Displacement	6,842 cm³correct
Bore	110 mmcorrect
Stroke	120 mmcorrect
Compression ratio	17correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,490 mmcorrect
Width	2,280 mmcorrect
Height	2,980 mmcorrect
Wheelbase	2,710 mmcorrect
Ground clearance	385 mmcorrect
Unladen weight	6,555 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	16 V/8 Rcorrect
Forward gears	16correct
Reverse gears	8correct
Front tyres	14.9-24 AScorrect
Rear tyres	18.4-38 AScorrect
Top speed	30 km/hcorrect

Working data

Fuel tank capacity	120 lcorrect

Origin and approval

Plant	Polandcorrect

Other data

Linkage category	Cat IIcorrect
PTO speed	540/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 13 kW/t (85 kW / 6.6 t)

Power class: Large (100–180 hp)

Stronger than 73% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Ursus 1234 have?

The Ursus 1234 delivers 116 hp.

How much does the Ursus 1234 weigh?

The unladen weight is 6,555 kg.

What engine does the Ursus 1234 have?

6 cylinders, 6,842 cm³ displacement, Diesel.

How fast does the Ursus 1234 go?

Top speed is 30 km/h.

What are the dimensions of the Ursus 1234?

4,490 mm × 2,280 mm × 2,980 mm.

When was the Ursus 1234 built?

Production years: 1990–2009.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
