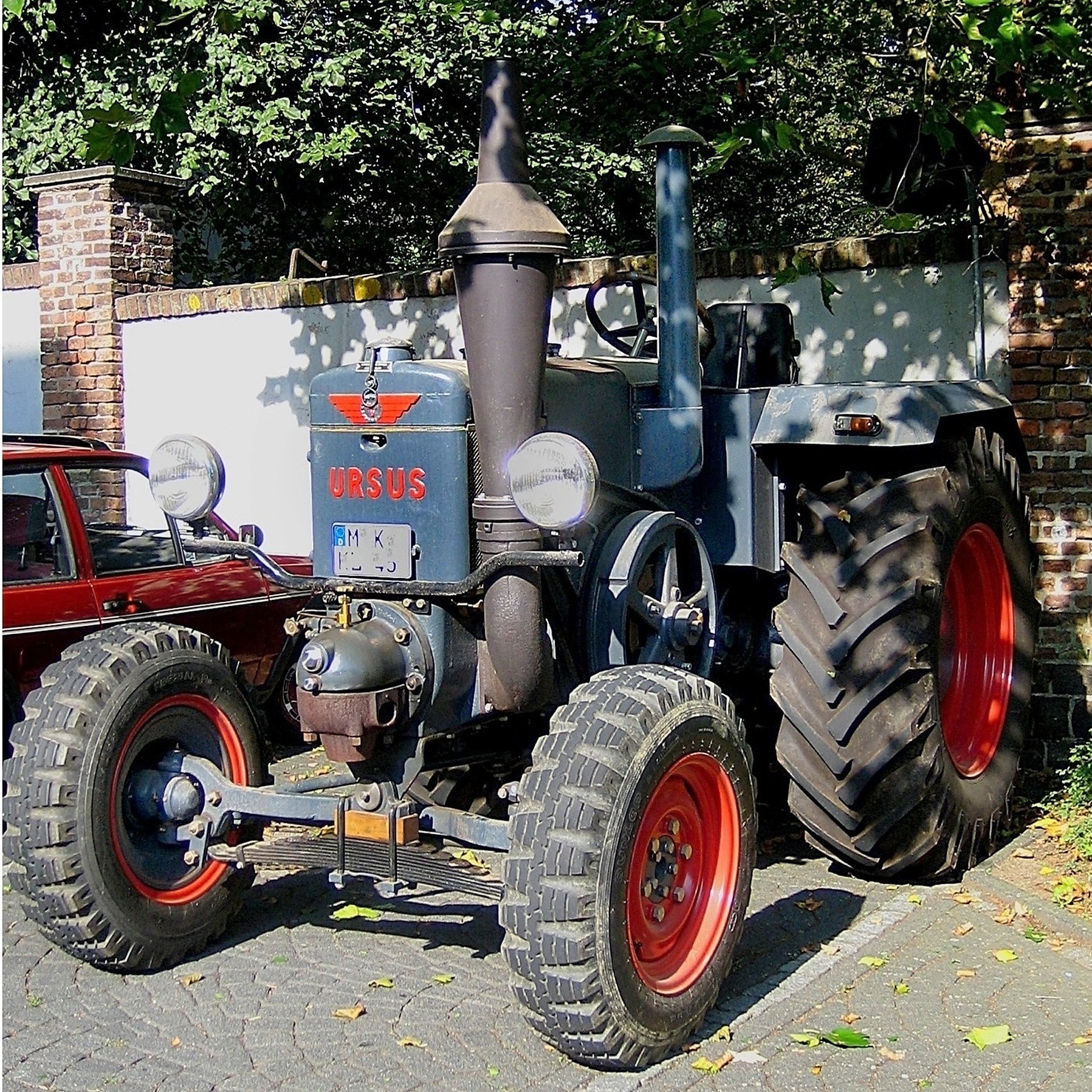

Ursus 1934 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Ursus 1934 is a tractor from the Ursus 4WD Tractor series. Power comes from a six-cylinder engine; from 7.3 litres it draws 193 hp (141.7 kW). Rated speed is 2,200 rpm.
Top speed is 30 km/h. Unladen weight is 6,180 kg.
Within the range, rated power spans from 53.7 to 193 hp; with 193 hp, the 1934 sits at the top. Below it ranks the 1654 with 162 hp.
Ursus — one brand, two licences, many relatives
Anyone looking at an Ursus rarely sees a purely in-house design. The brand's history is a history of licences — and that is precisely why parts are often easier to find than the production figures would suggest.
Read on 4 more paragraphs
In 1965 the Warsaw plant began building the C-4011 under a licence agreement with Zetor in Brno. At its heart sat the S-4001 engine, the Polish version of Zetor's Z-4001. That kinship runs through the ranges: the later C-360, built from 1976 and in the programme until the end of 1994, used the S-4003, the strongest engine of that family.
In 1974 a second licence followed — the British one from Massey Ferguson, together with the associated production plant. Models such as the MF 235, MF 255 and MF 265 were then built in Poland with Perkins engines and became a fixture on many farms. The higher Ursus ranges with four-digit numbers descend from this line.
One remarkable long-runner stands out: the C-325 and its revised versions C-328 and C-330 — popularly the "thirties" — plus the C-335 export version, ran without interruption for 34 years until 1993.
When buying used it is therefore worth establishing the range's ancestry first. An Ursus from the Zetor line shares engine parts with Czech machines, one from the Massey Ferguson line with British ones. That decides where to look for components.
Sources: warzywa.pl, Wiadomości Rolnicze Polska, ursus.info.pl
Technical data
Engine
| Engine model | Z 8604.020 TURBOcorrect |
|---|---|
| Power | 192.6 hp (141.7 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 7,300.4 cm³correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 29.1 lcorrect |
| Engine oil capacity | 24.2 lcorrect |
Dimensions and weights
| Unladen weight | 6,180 kgcorrect |
|---|
Drivetrain and chassis
| Gearbox type | mechanical gearbox, synchromeshcorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 8correct |
| Tyre size | front 16.9R28 rear 20.8R38correct |
| Top speed | 29.5 km/hcorrect |
| System voltage | 14 Vcorrect |
Working data
| Pump flow | 55.3 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 63.2 lcorrect |
| Hydraulic pressure | 160correct |
| Fuel tank capacity | 355.1 lcorrect |
Where this model stands
Power-to-weight ratio: 22.9 kW/t (142 kW / 6.2 t)
Power class: Heavy (> 180 hp)
Stronger than 91% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ursus 1934 have?
The Ursus 1934 delivers 193 hp.
How much does the Ursus 1934 weigh?
The unladen weight is 6,180 kg.
What engine does the Ursus 1934 have?
6 cylinders, 7,300 cm³ displacement.
How fast does the Ursus 1934 go?
Top speed is 29.5 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 20 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
