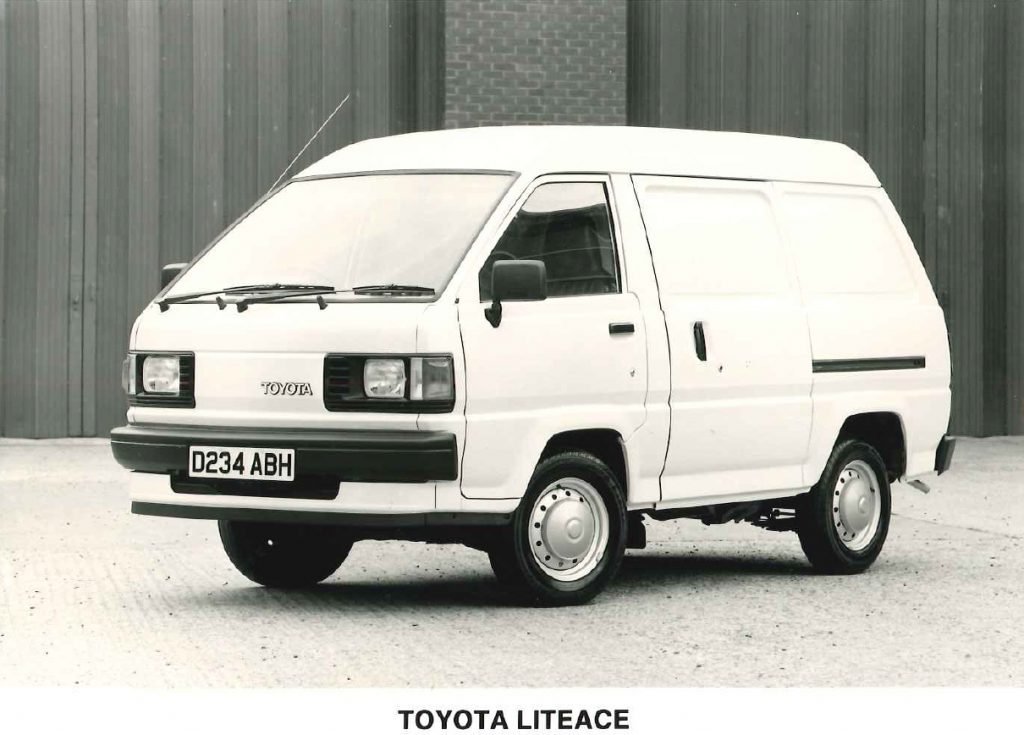

Toyota LITEACE
Built: 1986-1992 · Series: LITE ACE
More machines from model year 1986
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Toyota Lite Ace – small cab-over van below the HiAce, petrol and diesel engines from 1,290 to 1,975 cm³, 47 to 51 kW, unladen weights of 1,040 to 1,260 kg
The Lite Ace is Toyota's small cab-over van, introduced in 1970 as a compact addition below the HiAce and built since then across several generations as a panel van, minibus and pickup. The range largely shares its platform with the near-identical TownAce, sold in Japan through a different dealer channel; chassis codes such as KM on the generation captured here denote a diesel engine from Toyota's C series. Some of the vehicles recorded in the register carry Dutch designations such as Gesloten Bestel, meaning closed cargo body, pointing to vehicles imported from the Netherlands. The COMM or Commercial designations are pure cargo versions without a rear bench, D in the model name marks the diesel engine.
Read on 3 more paragraphs
The register lists here 16 versions with outputs from 47 to 51 kW, displacements from 1,290 to 1,975 cm³ from four-cylinders, unladen weights from 1,040 to 1,260 kg, gross weights from 1,810 to 2,205 kg, lengths from 3,900 to 4,000 mm and widths from 1,630 to 1,690 mm.
For decades the Lite Ace was one of Japan's best-selling small vans, important for trades, delivery services and families wanting a compact load carrier with high payload; in Europe it arrived mainly through grey imports and the Dutch and British markets.
On used examples of the cab-over generations, rust on the floor pan, sills and wheel arches, the condition of the front axle under the driver's seat, the clutch and automatic transmission on the relevant versions, and parts supply, which for this generation runs through specialist importers, count.
Sources: Kennwerte der Modelle Toyota Lite Ace, Toyota (Hersteller)
Technical data
Engine
| Power | 51 kWcorrect |
|---|---|
| Cylinders | 4correct |
| Displacement | 1,480 cm³correct |
Dimensions and weights
| Length | 4,000 mmcorrect |
|---|---|
| Width | 1,650 mmcorrect |
| Wheelbase | 2,070 mmcorrect |
| Unladen weight | 1,180 kgcorrect |
| Gross vehicle weight | 1,985 kgcorrect |
Drivetrain and chassis
| Gears | 4correct |
|---|---|
| Wheels | 4correct |
Where this model stands
Power-to-weight ratio: 43.2 kW/t (51 kW / 1.2 t)
Stronger than 6% of the vans in the register — out of 7,145 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Toyota LITEACE have?
The Toyota LITEACE delivers 51 kW.
How much does the Toyota LITEACE weigh?
The unladen weight is 1,180 kg.
What is the gross vehicle weight of the Toyota LITEACE?
1,985 kg.
What engine does the Toyota LITEACE have?
4 cylinders, 1,480 cm³ displacement.
What are the dimensions of the Toyota LITEACE?
4,000 mm × 1,650 mm.
When was the Toyota LITEACE built?
Production years: 1986-1992.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
