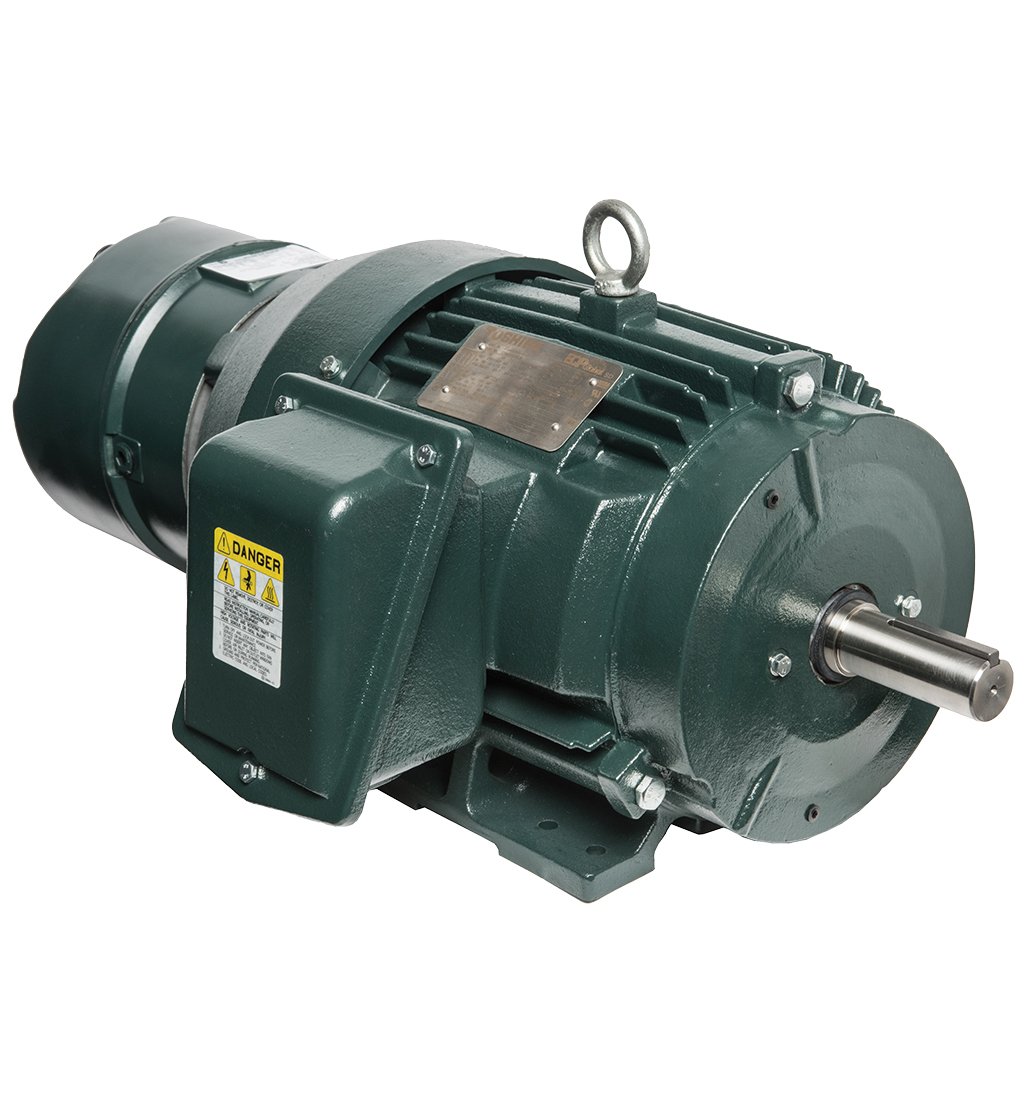

Toshiba TKKH FBK8
Series: TKKH
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Toshiba TKKH – three-phase motor from Taiwanese manufacturing: frame sizes 160 to 315, two- to six-pole, 18.5 to 110 kW, IP54, efficiency up to 95.78%
TKKH is a register code under which Toshiba has registered a range of higher-output three-phase motors to Australia's GEMS/MEPS energy efficiency standard. The five versions listed carry the suffixes FBK8, FBKW, FCK8, FCKW and FCKW8, referring to different frame-size or winding variants within the range.
Read on 3 more paragraphs
The register lists five versions with 18.5 to 110 kW rated output, two to six poles, and an efficiency span of 92.8 to 95.78% at full load and 93 to 95.86% at 75% load. Frame size ranges from 160 to 315, protection is IP54 throughout, and the voltage entry is 415 V. Manufacturing takes place in Taiwan, tested under the AS/NZS 1359.5:2004 standard, using test method B throughout. Under GEMS classification, the motors partly reach High Efficiency Level 2005. The mounting code covers practically the whole IEC spectrum across all five versions, from foot forms B3 to B8, through flange forms B14, B34 and B35, to vertical forms V1 to V36.
With outputs up to 110 kW and efficiencies close to 96%, the TKKH range covers the upper band of classic industrial drives, for example large pumps, compressors, conveyors and fans in commercial and industrial plant.
When buying used or swapping, check bearing condition, insulation resistance of the winding, visible overheating traces on the terminal box and fan cover, and a legible nameplate showing frame size, pole count and efficiency class. Given the wide choice of mounting codes, it is worth checking before purchase which of the many bolt patterns actually fits the installation point. Spare parts and support run through the Toshiba sales network.
Sources: SpecCodex register, model data: Toshiba TKKH
Technical data
Engine
| Rated output | 110 kWcorrect |
|---|
Electrical data
| Rated voltage | 415 Vcorrect |
|---|---|
| Number of poles | 6correct |
| Protection class | IP54correct |
| Frame size | 315 M (foot)correct |
| Mounting (IEC 60034-7) | B3, B5, B6, B7, B8, B14, B34, B35, V1, V3, V5, V6, V15, V18, V19, V36correct |
| Efficiency at full load | 95.5 %correct |
| Efficiency at 75 % load | 95.8 %correct |
| Efficiency at half load | 95.6 %correct |
Origin and approval
| Country of manufacture | Taiwancorrect |
|---|
Other data
| Standard applied | AS/NZS 1359.5:2004correct |
|---|---|
| Test method | AS 1359.102.1:1997correct |
Frequently asked questions
How much power does the Toshiba TKKH FBK8 have?
The Toshiba TKKH FBK8 delivers 110 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
