Toolcarrier Lanz Alldog – specifications

Built: 1953-1954 · Series: Other models

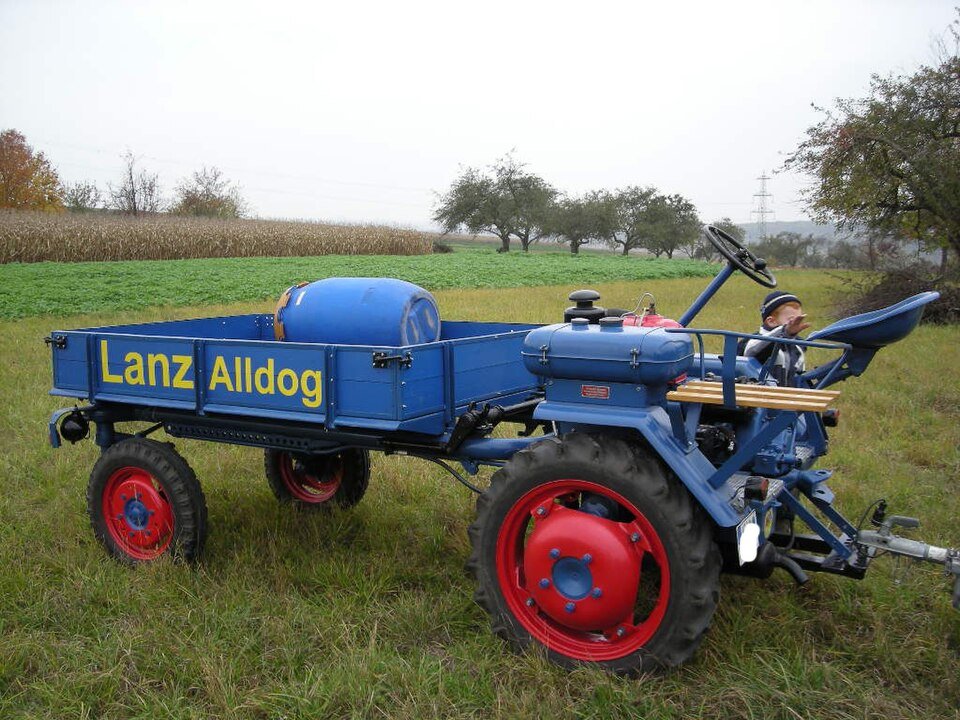

The Lanz Alldog is a compact agricultural tractor manufactured by Toolcarrier in Germany. Production of this model took place in 1953 and 1954. The vehicle is powered by a single-cylinder diesel unit installed as a built-in engine with water cooling. With an output of 12 PS and a displacement of 533 cm³, this tractor is positioned in the segment of light-duty tractors. The curb weight of 960 kg ensures low ground pressure, enabling use on sensitive arable land or in confined stable areas. The design, with a length of 3,750 mm and a variable width between 1,620 and 2,180 mm, underscores its orientation toward flexible application scenarios.

Data for the version built 1953-1954 · Data origin: Reference work (Wikipedia/Wikibooks) · sources

More machines from model year 1953

Source: wikiwand.com

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The technical equipment includes five forward gears and one reverse gear, allowing for differentiated adaptation of speed to various working speeds. Rear-wheel drive with a WD option provides additional traction on uneven terrain when required. The tire configuration, with 5.50-16 tires at the front and 7-24 tires at the rear, is matched to the low output of 8.8 kW. This configuration ensures stable power transmission, while the engine's water cooling maintains a constant operating temperature even during extended periods of use. The dimensions of 1,700 mm in height and a wheelbase of 2,234 to 2,306 mm provide good visibility for the driver.

A total of 2,115 units of this model were manufactured. The combination of low weight and manageable output makes the Lanz Alldog a suitable machine for light transport tasks and simple field work. The five forward gears allow for adjustment of tractive effort to different soil conditions without overloading the machine. The narrow design enables maneuvering in confined environments. The simple mechanics and clear operation meet the requirements for robust commercial vehicles in this size class.

Technical data

Engine

Fueldieselcorrect
Power12 hp (8.8 kW)correct
Cylinders1correct
Displacement533 cm³correct
Coolingwater-cooledcorrect

Dimensions and weights

Length3,750 mmcorrect
Width1620-2180 mmcorrect
Height1,700 mmcorrect
Wheelbase2234-2306 mmcorrect
Unladen weight960 kgcorrect

Drivetrain and chassis

Driverear-wheel driveWDcorrect
Forward gears5correct
Reverse gears1correct
Front tyres5.50-16correct
Rear tyres7-24correct

Origin and approval

PlantGermanycorrect
Units built2,115correct

Frequently asked questions

How much power does the Toolcarrier Lanz Alldog have?

The Toolcarrier Lanz Alldog delivers 12 hp.

What engine does the Toolcarrier Lanz Alldog have?

The Toolcarrier Lanz Alldog has 1 cylinders. Fuel: Diesel.

When was the Toolcarrier Lanz Alldog built?

The Toolcarrier Lanz Alldog was built from 1953 to 1954.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
