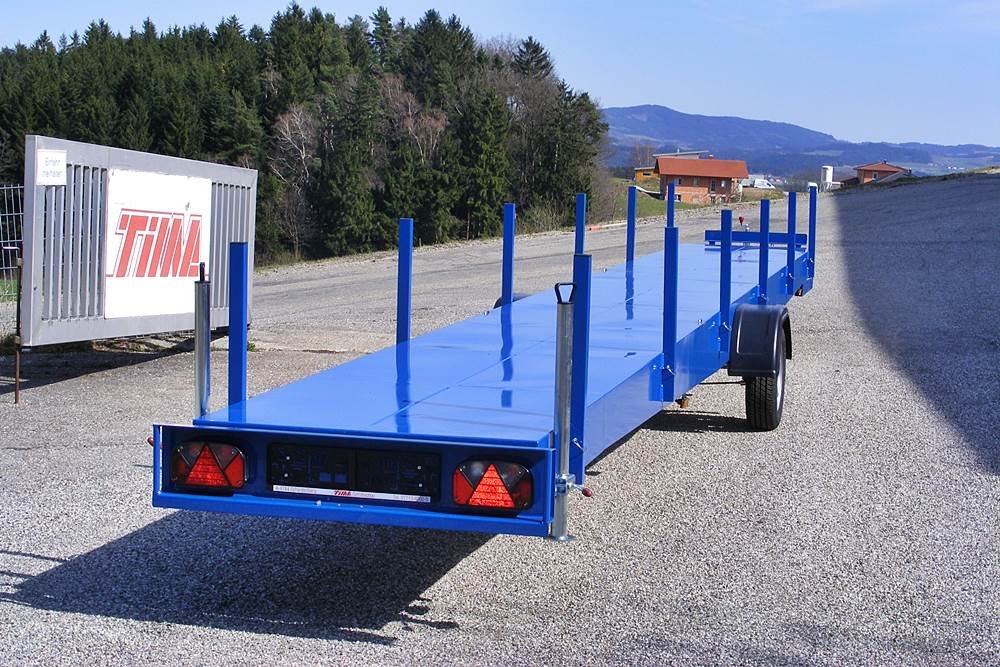

Tima GTAL 159/150/3,5
Built: 2024 · Series: GTAL
More machines from model year 2024
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Tima GTAL – 3.5-tonne class trailers with load dimensions in the type name: GTAL 150 to GTAL 400, 3.5 t gross weight throughout, 440 to 596 kg unladen weight, up to 7.60 m length
On Tima trailers the GTAL type designation states the load dimensions and gross weight of each version directly: the first number gives the load length in decimetres, the second on the larger types the load width, and the closing 3.5 throughout the gross weight of 3.5 tonnes. GTAL 400/165/3.5 thus denotes a load area of around 4.00 by 1.65 m at a gross weight of 3.5 t, GTAL 150/3.5 a considerably shorter version in the same weight class. With an unladen weight under 600 kg against a 3.5 t gross weight, every version keeps a payload of roughly 3 tonnes.
Read on 3 more paragraphs
The register lists here 10 versions with unladen weights from 440 to 596 kg, a gross weight of 3,500 kg throughout, lengths from 5,660 to 7,600 mm and widths from 1,820 to 2,330 mm.
Trailers of this size – lightly built, with payloads around 3 tonnes and without the restrictions of driving licence category B96/BE – are common among tradesmen, landscaping firms and in the transport of machinery and vehicles, where a large load area combined with a low unladen weight matters.
On a used example, the condition of the load bed (warping, corrosion on the cross members), the axle and suspension given the high payload relative to unladen weight, brakes and wheel bearings, the tow eye and jockey wheel, and, on trailers with ramps, their function and wear all count.
Sources: SpecCodex register, model data: Tima GTAL
Technical data
Dimensions and weights
| Length | 7,000 mmcorrect |
|---|---|
| Width | 2,070 mmcorrect |
| Wheelbase | 5,130 mmcorrect |
| Unladen weight | 458 kgcorrect |
| Gross vehicle weight | 3,500 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|---|
| Top speed | 140 km/hcorrect |
Frequently asked questions
How much does the Tima GTAL 159/150/3,5 weigh?
The unladen weight is 458 kg.
What is the gross vehicle weight of the Tima GTAL 159/150/3,5?
3,500 kg.
Up to what speed is the Tima GTAL 159/150/3,5 approved?
Approved up to 140 km/h.
What are the dimensions of the Tima GTAL 159/150/3,5?
7,000 mm × 2,070 mm.
When was the Tima GTAL 159/150/3,5 built?
Production years: 2024.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
