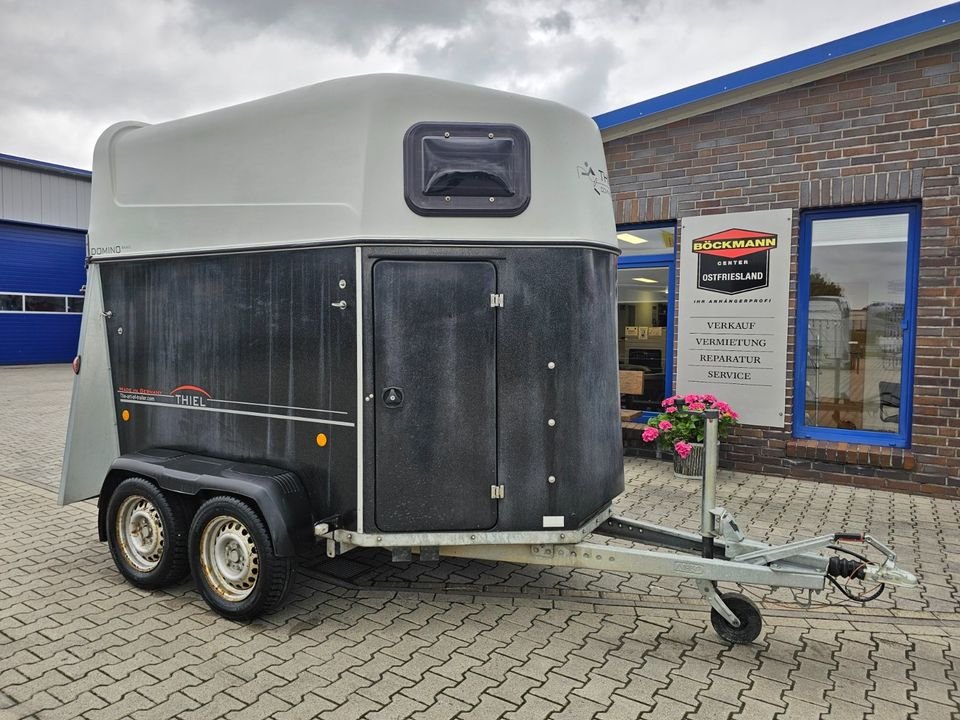

Thiel Pferdeanhanger MEXX
Built: 2010-2024 · Series: Other models
More machines from model year 2010
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Thiel Pferdeanhänger – other models: the collective page of horse and livestock trailers outside the named ranges, from Alpina and Domino to Sinus and Ultra, 610 to 1,350 kg unladen weight, 1,500 to 3,500 kg gross weight
This page gathers the Thiel horse and livestock trailers the register could not assign to a named range. The models carry no numbers but their own names: Alpina, Compact, Domino, Explorer, Matrix, Mexx, Mikado, Pico, Sinus and Ultra, plus the equipment variant Ultra/Primus; each name marks a separate body and trim line within the maker's range.
Read on 3 more paragraphs
The register lists here 12 versions with unladen weights from 610 to 1,350 kg, gross weights from 1,500 to 3,500 kg, lengths from 4,350 to 5,980 mm and widths from 2,000 to 2,460 mm.
Horse and livestock trailers of this size carry one or two horses or a corresponding number of smaller animals and are towed behind cars, four-wheel drives and light commercial vehicles by riders, breeders and vets; the span of just under 1.5 to 3.5 tonnes gross weight covers simple single trailers as well as larger twin trailers with a tack compartment. Up to 3.5 tonnes combination gross weight, a BE driving licence is sufficient in most European countries.
When buying used, what counts on horse trailers is above all the condition of the floor and partitions, corrosion on the frame, drawbar and axles, the function of the overrun brake, ramps and latches, and the weathertightness of the roof and vents; wear parts such as lighting, brake pads, tyres and floor mats are available through the general trailer trade.
Sources: SpecCodex register, model data: Thiel Pferdeanhänger
Technical data
Dimensions and weights
| Length | 5,980 mmcorrect |
|---|---|
| Width | 2,340 mmcorrect |
| Wheelbase | 4,400 mmcorrect |
| Unladen weight | 1,350 kgcorrect |
| Gross vehicle weight | 3,500 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Thiel Pferdeanhanger MEXX weigh?
The unladen weight is 1,350 kg.
What is the gross vehicle weight of the Thiel Pferdeanhanger MEXX?
3,500 kg.
Up to what speed is the Thiel Pferdeanhanger MEXX approved?
Approved up to 100 km/h.
What are the dimensions of the Thiel Pferdeanhanger MEXX?
5,980 mm × 2,340 mm.
When was the Thiel Pferdeanhanger MEXX built?
Production years: 2010-2024.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: RDW — Dutch national vehicle register (retrieved August 2026) · How we check the data
