Start › Trucks › MAN › TGX › TGX 35.440

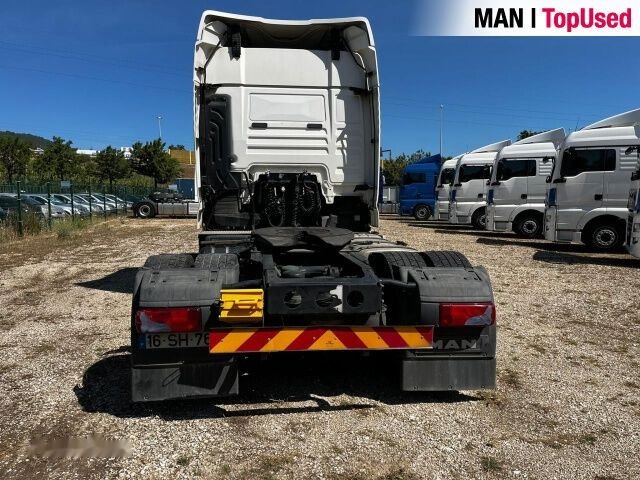

MAN TGX 35.440 – specifications

Built: 2016 · Series: TGX

Data for the version built 2016 · Data origin: Directory data · sources

More machines from model year 2016

Source: truck1.eu

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The MAN TGX 35.440 belongs to the TGX series; it rolled off the line as a heavy truck in 2016.

MAN TGX – long-haul flagship from Munich since 2007, successor to the TGA: type number built from weight class and horsepower, D20/D26/D38 engines, 265 to 500 kW, tractor units up to 49 t

The TGX replaced the TGA in 2007 as MAN's top-of-range long-haul series and is built among other places at the home plant in Munich and at Niepołomice in Poland; a second generation followed in 2020 with a new cab and Euro 6d engines. The type number follows fixed MAN logic: the first two digits name the weight class in tonnes (18, 22, 24, 26, 28), the next three roughly the engine output in horsepower – an 18.440 has around 440 hp. The axle formula (4X2, 6X2, 6X4) describes drive and axle count, BL marks, under MAN's own naming, the construction version, LL the long-haul version, and EEV the voluntary pre-Euro-6 'Enhanced Environmentally Friendly Vehicle' emission standard. Engines are MAN's own in-line six- and eight-cylinder D20, D26 and D38 units.

Read on 3 more paragraphs

The register lists 322 versions with 265 to 500 kW output, 10,500 to 16,162 cm³ displacement across 6 to 8 cylinders, unladen weights of 7,010 to 22,035 kg and lengths of 5,600 to 12,000 mm; gross weight runs up to 49 t.

As a long-haul tractor unit the TGX competes with the Mercedes-Benz Actros, Scania R/S, Volvo FH and DAF XF; MAN positions it above the lighter TGS series as its flagship for long distances and high mileage in articulated operation.

On used examples, check the condition of the AdBlue/SCR system and exhaust gas recirculation, wear on the TipMatic gearbox and clutch, rust on the frame and cab mounts at high mileage, function of the intarder retarder, and an unbroken service history through MAN's dense workshop network.

Sources: SpecCodex register, model data: MAN TGX, MAN Truck & Bus (manufacturer)

Technical data

Drivetrain and chassis

Axle configuration8 x4correct
SuspensionLuftcorrect
Tyre size385 /65R22,5correct

Other data

Colourwhitecorrect
EmissionsklasseEuro6correct
EquipmentABS, Bordcomputer, Differentialsperre, Klimaanlage, Nebelscheinwerfer, Servolenkung, Sitzheizung, Tempomat, Zentralverriegelung, elektrisch verstellbarer Spiegel, elektrische Fensterheberregelungcorrect
FahrerkabineSchlafkabinecorrect
Gesamtbreite2,550 mmcorrect
Gesamthöhe3,900 mmcorrect
Gesamtlänge8,900 mmcorrect
GetriebetypAutomatischcorrect
Kraftstoffdieselcorrect
Kraftstofftypdieselcorrect
Laderaumvolumen16,777 m³correct
Leistung324 kW (440,52 PS)correct
Radstand3,700 mmcorrect

Used listings – figures from public listings

Between May and November 2026, speccodex recorded 7 public used-machine listings for MAN TGX 35.440 on one platform. Asking prices ranged from €31,900 to €33,900 (median €31,900), years of manufacture between 2016 and 2026.

Offered mainly in Germany (100%); shares refer to listings that state a location.

Asking prices are sellers' demands, not achieved sale prices. Basis: public listings, recorded and analysed by speccodex. As of: 22 Nov 2026. Sellers usually do not state whether prices are net or gross.

How much does a used MAN TGX 35.440 cost? Asking prices from public listings

Frequently asked questions

When was the MAN TGX 35.440 built?

Production years: 2016.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
