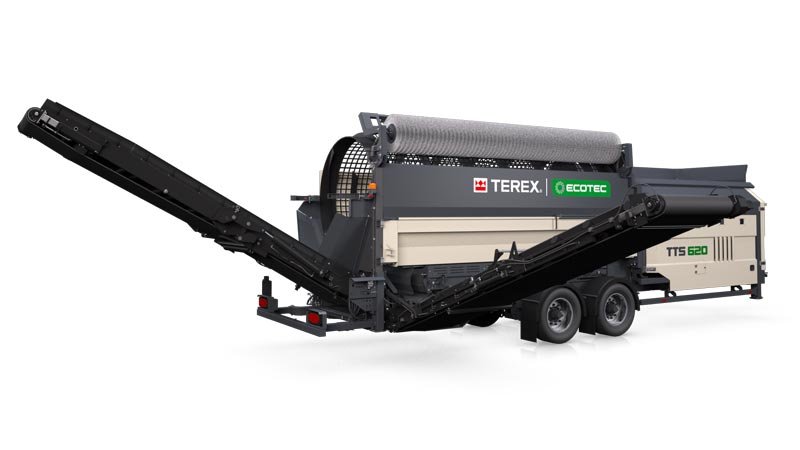

Terex TTS 620
Built: 2018-2020 · Series: Other models
More machines from model year 2018
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Terex TTS 620: EU class O4 trailer with a 19,000 kg gross weight, 12,000 mm length, a 6,310 mm wheelbase, four wheels and a top speed limited to 80 km/h
Terex is an internationally active manufacturer of construction machinery, cranes and earthmoving equipment, whose range also includes trailers for transporting machines and equipment. The TTS 620 belongs to this group of utility trailers and was built between 2018 and 2020. With a gross weight of 19,000 kg the vehicle sits in EU trailer class O4, the group of heavy trailers above 10 tonnes.
Read on 3 more paragraphs
The trailer is 12,000 mm long, 2,550 mm wide and runs on four wheels. Its wheelbase measures 6,310 mm, spreading the axles over a considerable part of the vehicle's length, which helps keep it tracking steadily. Unlike most trailers in this class, rated for 100 km/h, the TTS 620 is limited to 80 km/h, pointing to a design meant for slower site or works traffic rather than fast long-haul transport.
As an O4-class vehicle, the TTS 620 carries a dual-line compressed-air braking system, mandatory from class O3 upward. Trailers of this kind typically carry construction machinery, containers or heavy equipment between building sites, depots and works yards, where the lower top speed takes a back seat to a sturdy build and a high payload.
When buying one secondhand, check the loading deck and the lashing points for wear, since transporting construction machinery creates high localised loads. The braking system and its lines should be checked for corrosion and leaks, the four wheels for even wear, and the chassis around the axle suspension for cracks caused by repeated loading and unloading of machines.
Sources: SpecCodex-Register: Kennwerte des Modells Terex TTS 620, Terex
Technical data
Dimensions and weights
| Length | 12,000 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 6,310 mmcorrect |
| Unladen weight | 19,000 kgcorrect |
| Gross vehicle weight | 19,000 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|---|
| Top speed | 80 km/hcorrect |
Frequently asked questions
How much does the Terex TTS 620 weigh?
The unladen weight is 19,000 kg.
What is the gross vehicle weight of the Terex TTS 620?
19,000 kg.
Up to what speed is the Terex TTS 620 approved?
Approved up to 80 km/h.
What are the dimensions of the Terex TTS 620?
12,000 mm × 2,550 mm.
When was the Terex TTS 620 built?
Production years: 2018-2020.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
