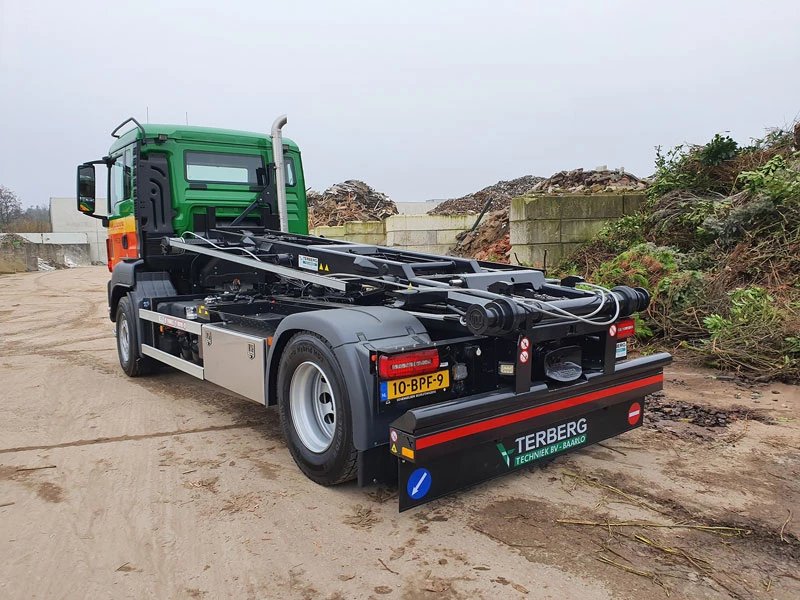

Terberg Techniek URBIN
Built: 2011-2012 · Series: Other models
More machines from model year 2011
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Terberg Techniek – further models: the collective page of the Dutch special-vehicle manufacturer from Benschop beyond the named series, from the URBIN terminal tractor to the Volvo FM-based body
Terberg Techniek is a Dutch manufacturer of terminal tractors and special vehicles based in Benschop. This collective page gathers the models the register could not assign to a named series: the FM 420 8X4 VOLVO (S), a body built on a Volvo FM chassis with 420 hp and an eight-wheel drive configuration, and the URBIN. The FM 420 8X4 designation follows the nomenclature of the underlying Volvo chassis.
Read on 3 more paragraphs
The register lists 2 versions here with six-cylinder engines of 5,880 to 12,780 cc displacement, kerb weights of 8,150 to 16,650 kg, permissible gross weights of 28,000 to 43,000 kg, and lengths of 8,720 to 9,450 mm with widths of 2,000 to 2,540 mm.
Terberg Techniek operates in the market for terminal and on-site traffic, where the vehicles shunt containers and swap bodies on port and logistics premises, as well as in building special vehicles on the basis of well-known truck chassis such as the Volvo FM; the span of roughly 28,000 to 43,000 kg permissible gross weight shows the difference between lighter and heavier configurations.
When buying a used special vehicle of this type, check the condition of the frame and axle suspension, the function of the coupling and lifting mechanism in terminal operation, the condition of the engine and gearbox on the Volvo basis, the brake system, and the operating hours accumulated during often intensive shift work on company premises; spare parts are available through Terberg and, for the chassis basis, through Volvo Trucks.
Sources: SpecCodex register, model data: Terberg Techniek (weitere Modelle), Terberg Techniek (manufacturer)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 5,880 cm³correct |
Dimensions and weights
| Length | 9,450 mmcorrect |
|---|---|
| Width | 2,000 mmcorrect |
| Wheelbase | 4,670 mmcorrect |
| Unladen weight | 8,150 kgcorrect |
| Gross vehicle weight | 28,000 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|
Frequently asked questions
How much does the Terberg Techniek URBIN weigh?
The unladen weight is 8,150 kg.
What is the gross vehicle weight of the Terberg Techniek URBIN?
28,000 kg.
What engine does the Terberg Techniek URBIN have?
6 cylinders, 5,880 cm³ displacement.
What are the dimensions of the Terberg Techniek URBIN?
9,450 mm × 2,000 mm.
When was the Terberg Techniek URBIN built?
Production years: 2011-2012.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
Sources: RDW — Dutch national vehicle register (retrieved August 2026) · How we check the data
Truck in 3D section
Turn the model, look inside and click an assembly — each one is explained.
