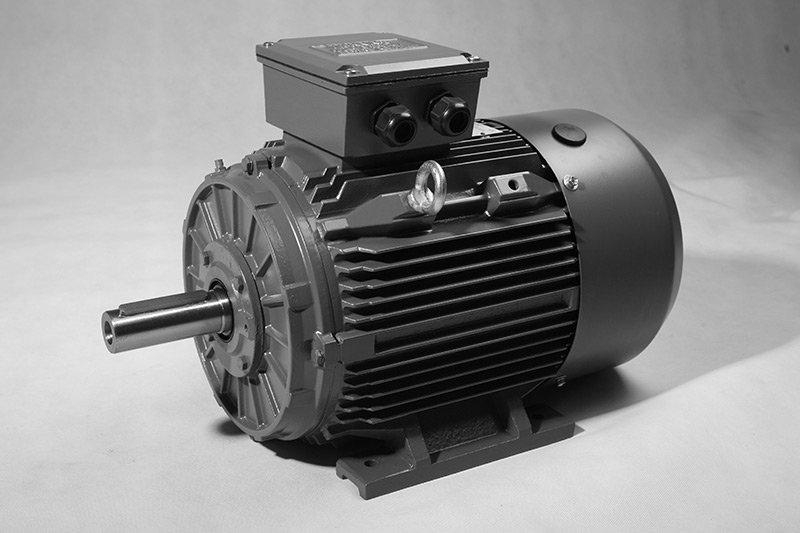

Techtop TCD YBX3-200LA-2

Series: TCD

Source: https://techtop.com.au/products/tci-200/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The TCD YBX3-200LA-2 belongs to the TCD series from Techtop. The rated output is 30 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 400 V. The housing is frame size 200L. The protection class is IP66. The efficiency is 93.3 per cent at full load, 92.9 per cent at 75 per cent load and 91.8 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5, B35 and V1. The motor is built in China. The values are recorded in the Australian MEPS registration under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). The TCD series covers 13 models. Rated output within it ranges from 2.2 to 30 kW; the TCD YBX3-200LA-2 sits at the top of that range with 30 kW. Its immediate neighbours are the TCD YBX3-180M-2P below it with 22 kW. 204 Techtop models across 6 series are on record.

Techtop TCD YBX3 – other models: the collective page of MEPS-registered IP66 three-phase motors outside the named versions, consistently High Efficiency Level 2018, frame sizes 112 to 200, 2.2 to 30 kW

This page gathers the TCD YBX3-range three-phase motors from Techtop the Australian energy-efficiency register could not assign to a named model. Model designations such as TCD YBX3-160MA-2P combine the IEC frame size (112 to 200) with the build length (S, M, L, MA, MB) and the pole count at the end; all 13 motors are fully enclosed to IP66 protection.

Read on 3 more paragraphs

The register lists here 13 versions with 2.2 to 30 kW, two- to six-pole, full-load efficiencies from 84.3 to 93.7% and at 75% load from 83.8 to 93.7%. Voltage is uniformly 400 V, testing followed the 2019 GEMS determination with test method 2-1-1B; all 13 motors reach the 2018 High Efficiency Level.

The consistent IP66 enclosure and the across-the-board 2018 High Efficiency Level position Techtop in the market segment for motors in dusty or wet environments, such as food, washing and cleaning technology and outdoor use, where competitors often carry a lower protection rating as standard.

When buying used, on the high IP66 protection rating especially the seals at the terminal box, shaft lead-through and fan cover, plus bearing condition and a checked insulation resistance of the winding, the condition of shaft and key, and a legible nameplate with frame size and efficiency class all matter; spares run through Techtop's distribution.

Sources: SpecCodex register, model data: Techtop Tcd (weitere Modelle, MEPS-Registrierungen)

Technical data

Engine

Rated output30 kWcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles2correct
Protection classIP66correct
Frame size200Lcorrect
Mounting (IEC 60034-7)B3, B5, B35, V1correct
Efficiency at full load93.3 %correct
Efficiency at 75 % load92.9 %correct
Efficiency at half load91.8 %correct

Origin and approval

Country of manufactureChinacorrect

Other data

Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the Techtop TCD YBX3-200LA-2 have?

The Techtop TCD YBX3-200LA-2 delivers 30 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
