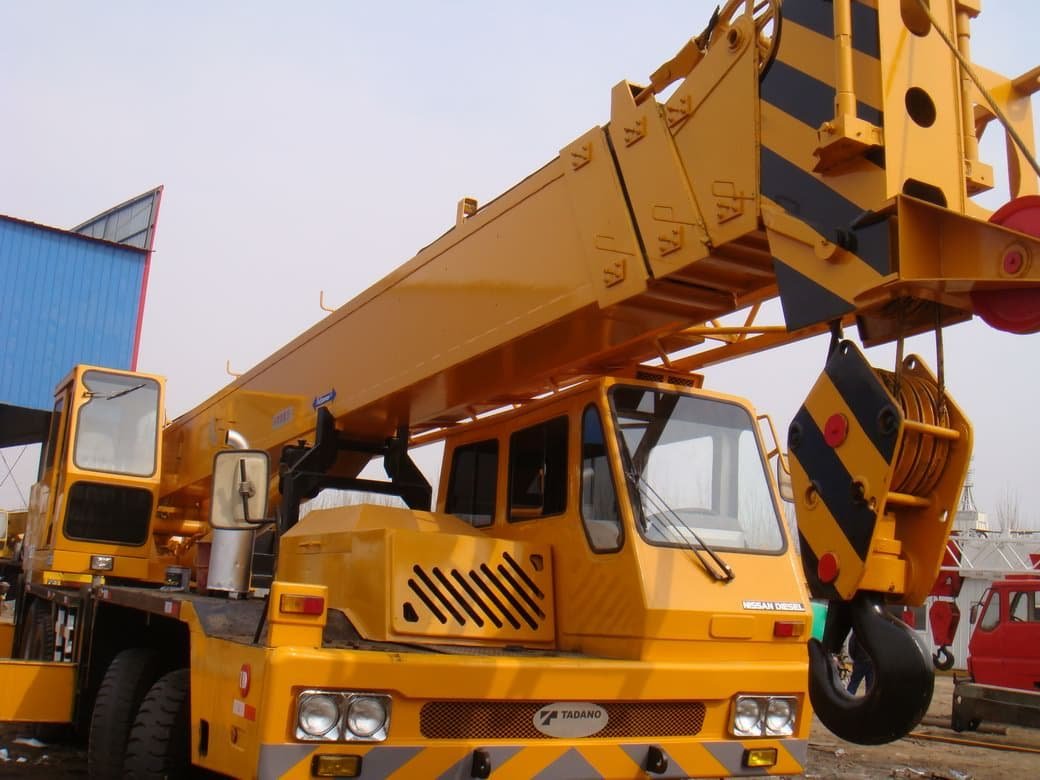

Tadano TT600XL

Series: Tadano Hydraulic Truck Crane

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Tadano Hydraulic Truck Crane series from Tadano includes the TT600XL. The engine delivers 390.3 hp (287.1 kW), with a displacement of 10,815.5 cm³. Torque is 1,776.1 Nm. Rated speed is 1,800 rpm. The unladen weight is 37,099.3 kg. Ground clearance is 310.9 mm. The gearbox has 12 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,400 rpm. The electrical system runs on 24 V. Tyre size: FRONT 445/65R22,5 REAR 315/80R22,5 Dual. The Tadano Hydraulic Truck Crane series covers 6 models. Rated output within it ranges from 340 to 496.8 hp; the TT600XL sits in the lower part of that range with 390.3 hp. Its immediate neighbours are the TG500E below it with 340 hp and the GT900XL above it with 496.8 hp. Unladen weight within it ranges from 37,099.3 to 40,483.1 kg; here the TT600XL sits at the bottom of that range with 37,099.3 kg. 108 Tadano models across 7 series are on record.

Tadano Hydraulic Truck Crane – the GS300XL, GT900XL, TG500E and the TT range to the TT800XXL, 250 to 365 kW, 25 to 40 tonnes crane vehicle weight

Tadano was founded in 1919 as the Tadano Iron Works in Takamatsu, Japan, and in 1955 built Japan's first hydraulic truck crane; today the company is one of the largest crane makers in the world. The GS, GT, TG and TT ranges denote different sizes and generations of Tadano's truck-crane programme, the following number roughly orders the capacity class, and XL and XXL mark versions with a longer telescopic boom.

Read on 3 more paragraphs

The register lists here 6 versions with 250 to 365.4 kW from eight-cylinder engines, crane vehicle weights from 25,129 to 40,483 kg, torque from 1,176 to 2,200 Nm and rated speeds from 1,800 to 2,200 rpm. Displacement runs from 7,201 to 16,992 cm³.

Truck cranes of this size are used in building and industrial construction, in wind-turbine and plant assembly and in civil engineering, where their own chassis lets them move quickly between sites. Alongside Liebherr and the Chinese makers XCMG, Zoomlion and Sany, Tadano ranks among the world's leading truck-crane suppliers and is market leader in Japan.

On a used crane of this make, the condition of the telescopic boom and its wear pads, the hoist winch and wire ropes, the hydraulic cylinders of boom and outriggers, the chassis and axles, and the inspection history of the crane superstructure, which must be periodically examined by a qualified inspector, all count. Spare parts and service run through Tadano's international dealer network.

Sources: SpecCodex register, model data: Tadano Hydraulic Truck Crane, Tadano Ltd. (manufacturer)

Technical data

Engine

Power	390.3 hp (287.1 kW)correct
Rated speed	1,800 rpmcorrect
Torque	1,776.1 Nmcorrect
Speed at max. torque	1,400 rpmcorrect
Displacement	10,815.5 cm³correct

Dimensions and weights

Ground clearance	310.9 mmcorrect
Unladen weight	37,099.3 kgcorrect

Drivetrain and chassis

Gearbox type	ZF AS Tronic 12AS2301correct
Forward gears	12correct
Reverse gears	2correct
Tyre size	FRONT 445/65R22.5 REAR 315/80R22.5 Dualcorrect

Other data

System voltage	24 Vcorrect

Where this model stands

Power-to-weight ratio: 7.7 kW/t (287 kW / 37.1 t)

Stronger than 65% of the mobile & rough terrain cranes in the register — out of 723 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Tadano TT600XL have?

The Tadano TT600XL delivers 390 hp.

How much does the Tadano TT600XL weigh?

The unladen weight is 37,099 kg.

What engine does the Tadano TT600XL have?

10,816 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
