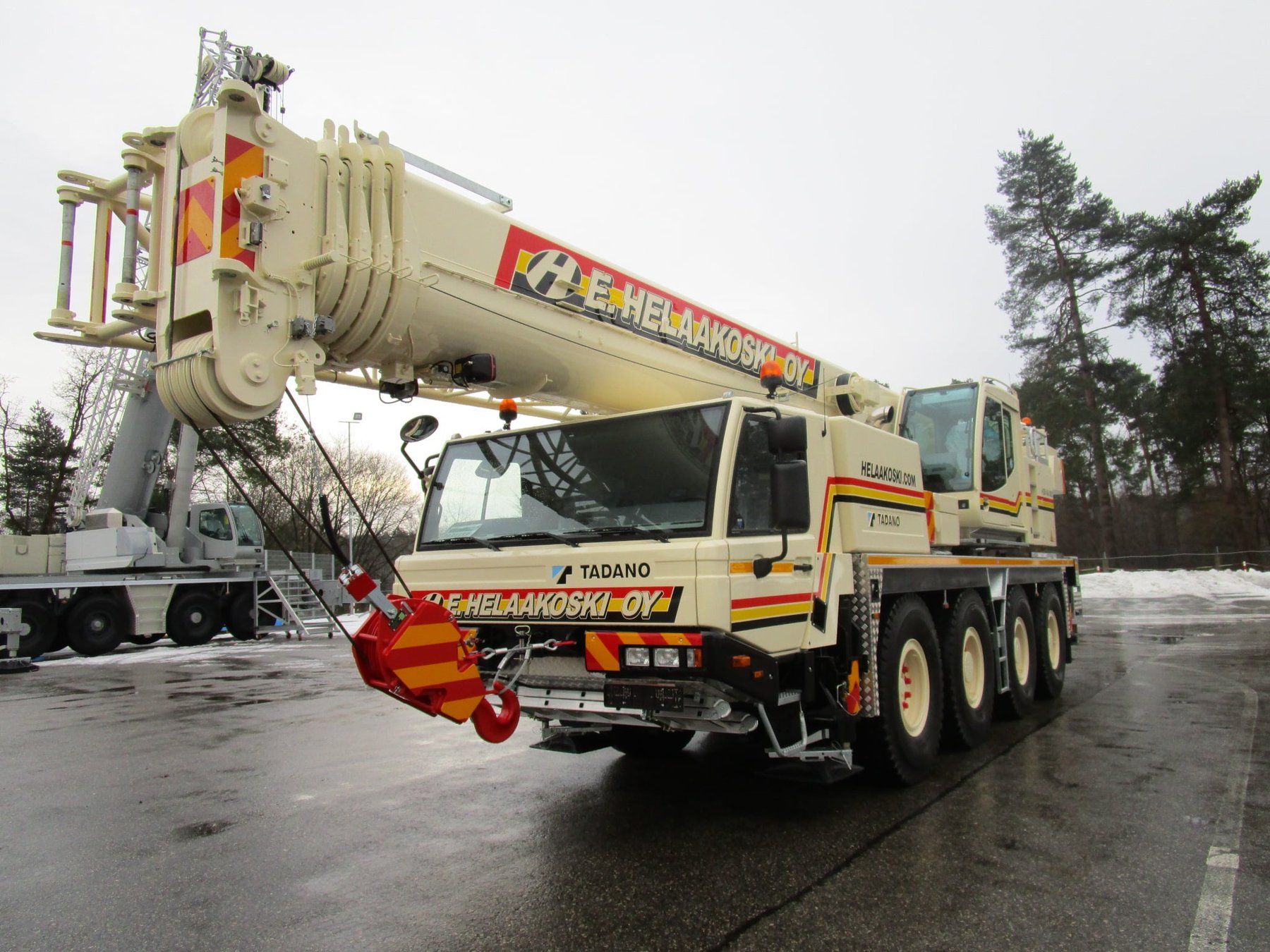

Tadano ATF 70G-4
Built: 2012-2014 · Series: ATF
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Tadano ATF – all-terrain cranes from the Japanese crane maker: 320 to 405 kW, six- to eight-cylinders of 10.7 to 15.9 litres displacement, 47.75 to 71.75 t vehicle weight
Tadano ATF denotes the all-terrain cranes of the Japanese crane maker Tadano, headquartered in Takamatsu, founded in 1919 and today one of the world's largest crane manufacturers. Since taking over FAUN's crane division in 1990, Tadano has built its European all-terrain cranes at the site in Lauf an der Pegnitz in Bavaria. The ATF cranes run on multi-axle chassis with all axles steered and driven, allowing them to move both in public road traffic and on the unpaved ground of a construction site.
Read on 3 more paragraphs
The register lists here 6 versions with 320 to 405 kW from six- to eight-cylinders of 10,677 to 15,928 cm³, vehicle weights from 47,750 to 71,750 kg, lengths from 12,650 to 15,121 mm and widths from 2,660 to 3,000 mm.
Alongside Liebherr and Grove, Tadano is one of the world's leading makers of mobile cranes, and with the ATF ranges covers the segment of all-terrain cranes for industrial, wind-power and construction use, where reach, lifting capacity and off-road capability are equally required.
On used Tadano ATF cranes, operating hours of the drivetrain and the crane works counted separately, the condition of the telescopic boom and winches, the sealing of the hydraulic cylinders, the function of the outriggers and the electronic load-moment limiter, and the inspection history under the regulations for lifting equipment count; spare parts run through Tadano service.
Sources: SpecCodex register, model data: Tadano ATF, Tadano (manufacturer)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 11,946 cm³correct |
Dimensions and weights
| Length | 12,650 mmcorrect |
|---|---|
| Width | 2,660 mmcorrect |
| Wheelbase | 5,300 mmcorrect |
| Unladen weight | 47,750 kgcorrect |
| Gross vehicle weight | 48,000 kgcorrect |
Drivetrain and chassis
| Wheels | 8correct |
|---|---|
| Top speed | 80 km/hcorrect |
Frequently asked questions
How much does the Tadano ATF 70G-4 weigh?
The unladen weight is 47,750 kg.
What is the gross vehicle weight of the Tadano ATF 70G-4?
48,000 kg.
What engine does the Tadano ATF 70G-4 have?
6 cylinders, 11,946 cm³ displacement.
How fast does the Tadano ATF 70G-4 go?
Top speed is 80 km/h.
What are the dimensions of the Tadano ATF 70G-4?
12,650 mm × 2,660 mm.
When was the Tadano ATF 70G-4 built?
Production years: 2012-2014.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
