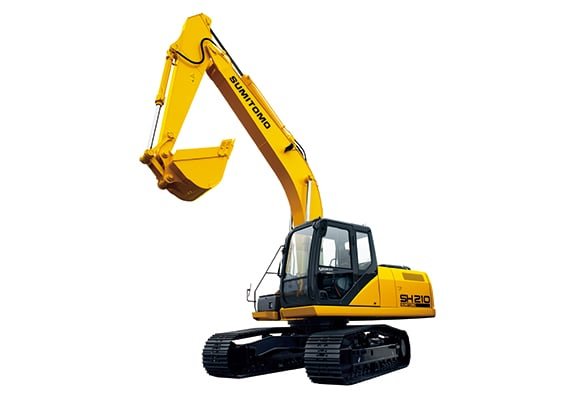

Sumitomo SH210-5
Series: Sumitomo Hydraulic Excavator
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Sumitomo Hydraulic Excavator: reading the SH number and the dash generation
The "Sumitomo Hydraulic Excavator" bucket on SpecCodex covers 40 live-listed models from the Japanese crawler-excavator family. The code follows a clear pattern: "SH" plus a number (100, 120, 130, 160, 200, 220…) names the size class, while a hyphenated digit such as "-2", "-3" or "-5" marks the production generation, referred to by the maker as the "dash" level.
Read on 4 more paragraphs
Each new dash generation at Sumitomo lines up with a new emissions tier: older dash levels met EU Stage IIIA or EPA Tier III, while current lines (dash-6/-7) reach EPA Tier 4 Final and EU Stage V with a diesel particulate filter and SCR aftertreatment. Models without a dash digit, such as the plain SH200 in this bucket, are usually older or export-market versions outside that scheme.
The recorded spread: engine output 60 to 397 kW, operating weight 11,480 to 80,100 kg, displacement 2,900 to 15,700 cm³. For a subset of models, 4- to 6-cylinder engines and torque figures of 294 to 539 Nm are also on file.
For a used machine, the dash generation drives the service checklist: newer dash generations with DPF/SCR need their regeneration cycles and AdBlue system checked, while older dash-2/3 machines call for a closer look at the hydraulic pump, valve block, and undercarriage for leaks and wear.
In short: the SH number is the size class, the dash digit is the generation and, indirectly, the emissions tier. Only the nameplate confirms it — the model name alone does not.
Sources: Kennwerte der Modelle Sumitomo Hydraulic Excavator, — Sumitomo SH330-5/SH350-5 Datenblatt, — Sumitomo SH145X-6 Datenblatt (Tier 4), — KHL Group: The latest excavator generation
Technical data
Engine
| Engine model | A1-4HK1Xcorrect |
|---|---|
| Power | 159.6 hp (117.4 kW)correct |
| Rated speed | 1,800 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 5,191.4 cm³correct |
Dimensions and weights
| Ground clearance | 442correct |
|---|---|
| Unladen weight | 20,000 kgcorrect |
Working data
| Pump flow | 422.1 l/mincorrect |
|---|---|
| Hydraulic pressure | 375 barcorrect |
Where this model stands
Power-to-weight ratio: 5.9 kW/t (117 kW / 20 t)
Stronger than 54% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Sumitomo SH210-5 have?
The Sumitomo SH210-5 delivers 160 hp.
How much does the Sumitomo SH210-5 weigh?
The unladen weight is 20,000 kg.
What engine does the Sumitomo SH210-5 have?
4 cylinders, 5,191 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
