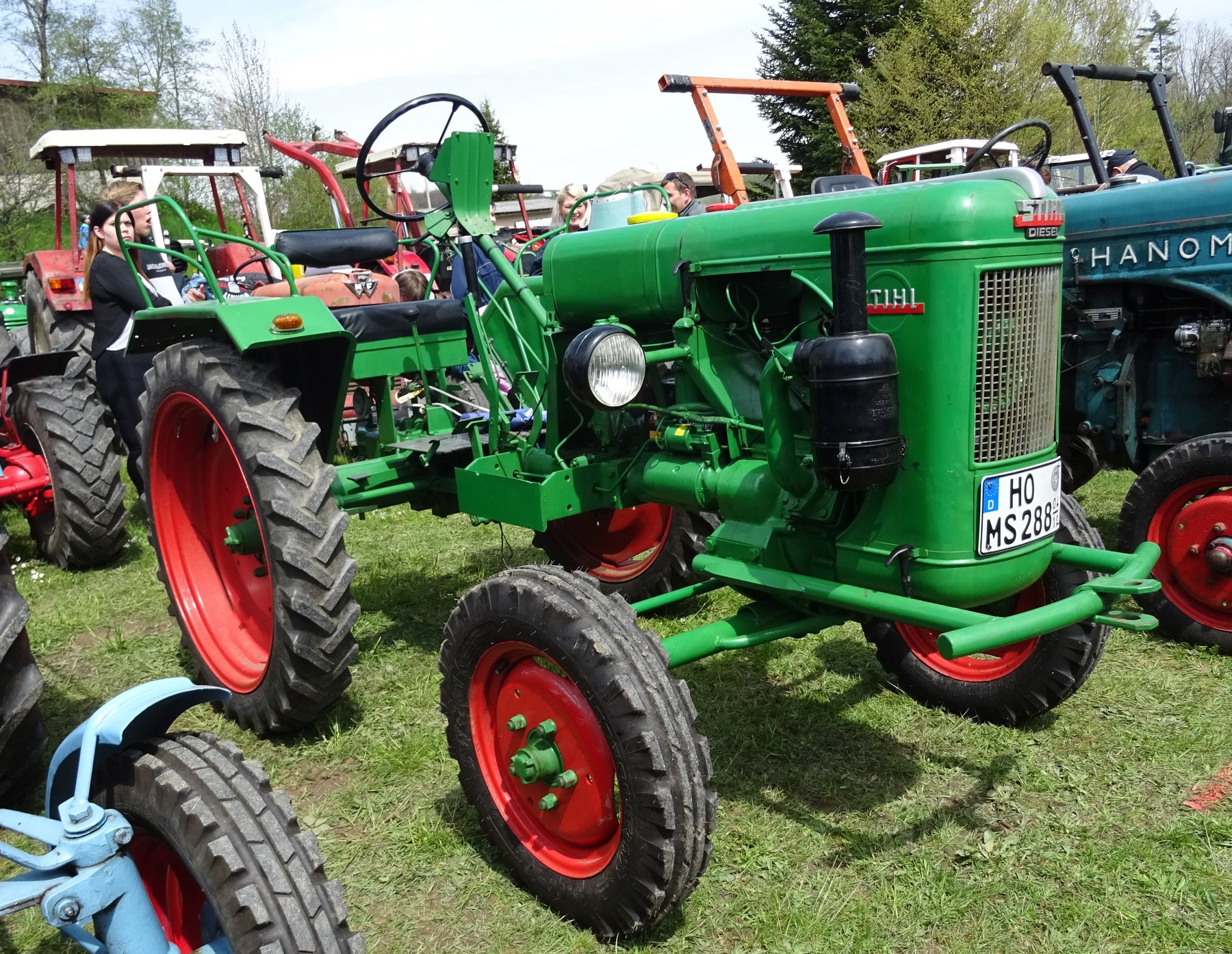

Stihl 140
Built: 1949–1954 · Series: Other models
More machines from model year 1949
Stihl – other models: the small single-cylinder collective page with the 140 and 144 types, 8.8 to 10.2 kW (around 14 hp), 633 to 763 cc diesel, under 800 kg
This collective page brings together two small single-cylinder diesel tractors designated 140 and 144, which sit outside the named ranges in the register. With under 800 cc displacement and kerb weights under 800 kg, both count among the smallest motorised tractors in the register, of the kind used on small agricultural plots, in orchards and vineyards, or as yard tractors for manoeuvring. Their compact dimensions made them easy to turn in tight rows and confined yards where larger machines could not work.
Read on 3 more paragraphs
The register lists 2 variants at 8.8 to 10.2 kW (around 14 hp) from a single-cylinder diesel of 633 to 763 cc, kerb weights of 700 to 795 kg, lengths of 2,600 to 2,660 mm, widths of 1,500 to 1,570 mm, heights of 1,560 to 1,600 mm and a rated 1,850 to 2,000 rpm.
In this power class, such small tractors competed with similarly sized single-cylinder models from other makers offered in the 1950s and 1960s specifically for small holdings, specialist crops and steep terrain, where large standard tractors were too unwieldy.
On these small single-cylinder machines, compression and the condition of the injection pump matter, along with the clutch and gearbox, rust on wings and sheet metal, and – for use on slopes – brakes and steering; parts for such low production numbers are usually only available through specialist vintage dealers and custom remanufacture.
Sources: SpecCodex register, model data: Stihl (weitere Modelle)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 12 hp (8.8 kW)correct |
| Rated speed | 2000-1850 rpmcorrect |
| Cylinders | 1correct |
| Displacement | 633 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 2,600 mmcorrect |
|---|---|
| Width | 1,500 mmcorrect |
| Height | 1,560 mmcorrect |
| Wheelbase | 1,400 mmcorrect |
| Unladen weight | 700 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 3/1 und 4/1-Getriebecorrect |
| Front tyres | 4.50-16, 5.00-16correct |
| Rear tyres | 8-20, 8-24, 7-30correct |
| Top speed | 14.5 km/hcorrect |
Origin and approval
| Construction | central tube framecorrect |
|---|---|
| Units built | 860correct |
Other data
| PTO speed | 540/900 rpmcorrect |
|---|
Where this model stands
Power-to-weight ratio: 12.6 kW/t (9 kW / 0.7 t)
Power class: Compact (< 40 hp)
Stronger than 2% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Stihl 140 have?
The Stihl 140 delivers 12 hp.
How much does the Stihl 140 weigh?
The unladen weight is 700 kg.
What engine does the Stihl 140 have?
1 cylinders, 633 cm³ displacement, Diesel.
How fast does the Stihl 140 go?
Top speed is 14.5 km/h.
What are the dimensions of the Stihl 140?
2,600 mm × 1,500 mm × 1,560 mm.
When was the Stihl 140 built?
Production years: 1949–1954.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
