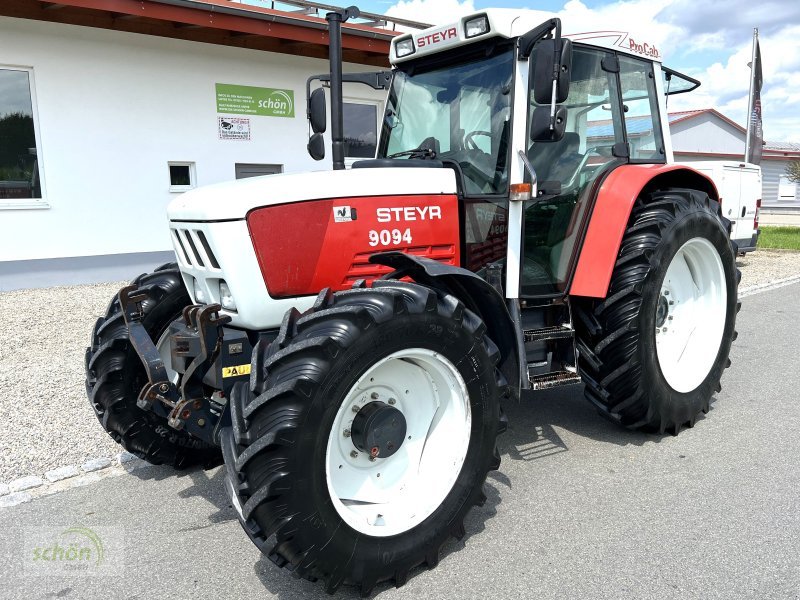

Steyr Case IH M 9094
Built: 1994–2003 · Series: M 9000er-Reihe
More machines from model year 1994
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
M 9094 (M 9000er-Reihe series) by Steyr Case IH: four-cylinder diesel engine rated at 69 kW (94 hp), built between 1994 and 2003.
The M 9000er-Reihe emerged in the 1990s, as Steyr grew more closely tied to Case IH and model names and technology began to merge across the two brands. The series covered the mid-power class for mixed arable and grassland farms.
Read on 3 more paragraphs
The M 9094 is powered by a four-cylinder diesel engine of 4,156 cm³ displacement, delivering 69 kW (94 hp) at 2,300 rpm. At an unladen weight of 3,900 kg, a wheelbase of 2,477 mm and a top speed of 30 km/h, the tractor is a solid representative of the mid-power class of its era, at a ratio of just over 56 kg of weight per kW.
Approval for rapeseed diesel alongside regular diesel fuel was common on Steyr models of the 1990s and let farmers run the tractor on their own fuel. Tractors of this class handled the full range of field work through the three-point linkage to ISO 730 and the 540 or 1,000 rpm power take-off, from soil cultivation to driving forage wagons and disc harrows.
On a used M 9094 from a near-decade-long production run, it is worth pinning down the exact build year from the chassis number, since details such as the electrics and hydraulics could change noticeably over such a long production run. The fuel system and injection pump should also be checked more closely if the tractor previously ran on rapeseed diesel for extended stretches of its working life.
Sources: SpecCodex-Register: Kennwerte des Modells M 9094
Technical data
Engine
| Fuel | Diesel/Rapsdieselcorrect |
|---|---|
| Power | 94 hp (69 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,156 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,175 mmcorrect |
|---|---|
| Width | 2,160 mmcorrect |
| Height | 2,710 mmcorrect |
| Wheelbase | 2,477 mmcorrect |
| Unladen weight | 3,900 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 16V / 8Rcorrect |
| Front tyres | 14.9R24correct |
| Rear tyres | 16.9-38 (ab 1998: 18.4R34)correct |
| Top speed | 30 km/hcorrect |
Where this model stands
Power-to-weight ratio: 17.7 kW/t (69 kW / 3.9 t)
Power class: Universal (40–100 hp)
Stronger than 63% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Steyr Case IH M 9094 have?
The Steyr Case IH M 9094 delivers 94 hp.
How much does the Steyr Case IH M 9094 weigh?
The unladen weight is 3,900 kg.
What engine does the Steyr Case IH M 9094 have?
4 cylinders, 4,156 cm³ displacement, Diesel/Rapsdiesel.
How fast does the Steyr Case IH M 9094 go?
Top speed is 30 km/h.
What are the dimensions of the Steyr Case IH M 9094?
4,175 mm × 2,160 mm × 2,710 mm.
When was the Steyr Case IH M 9094 built?
Production years: 1994–2003.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
