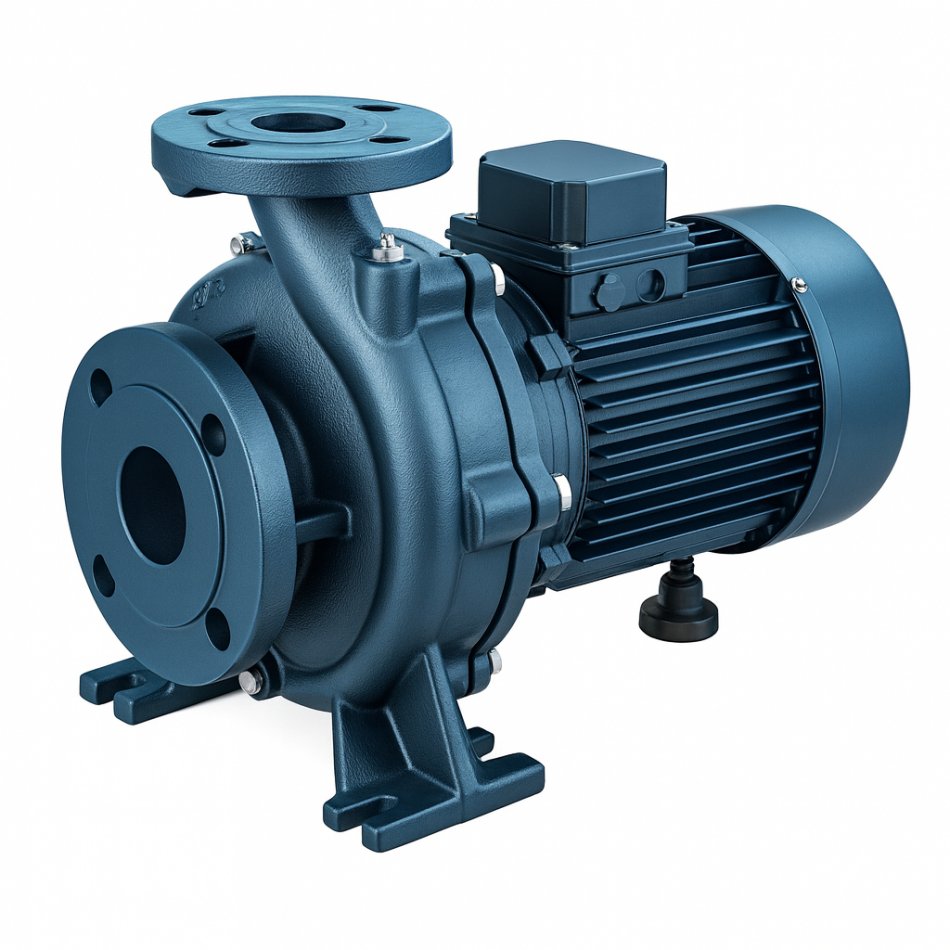

Stalker Pumps 65X40-250

With a rated output of 15 kilowatts, the motor sits in the range that drives larger centrifugal pumps for conveying tasks in industry and water supply. Motors of this power class must withstand the continuous running common in pump duty and are built correspondingly robust. Where the motor is coupled directly to the pump, the alignment of motor and pump shafts largely determines bearing life on both sides.

Under IEC 60072 the frame size sets the shaft centre height and therefore the foot and flange dimensions, so that motors of the same frame size from different makers stay mechanically interchangeable. The squirrel-cage rotor is standard in industrial motors of this kind, while slip-ring rotors are reserved for high starting torque. Protection ratings follow IEC 60529, mounting arrangements IEC 60034-7, for example IM B3, IM B5 or a vertical V1 version. Running it from a frequency inverter raises the demands on winding insulation.

When buying such a pump motor secondhand, the rating plate is worth checking first, along with whether output, voltage and frequency match the intended pump. Turning the shaft by hand shows whether the bearings run smoothly, without play, while an insulation test reveals damp or damaged windings. On directly coupled versions the coupling deserves particular attention, since misalignment otherwise leads to premature bearing wear on both sides.
