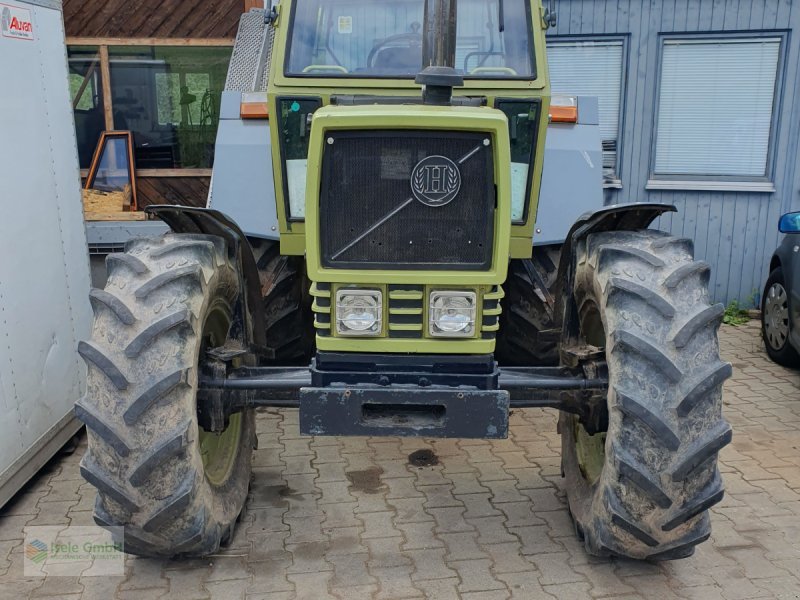

Slh Hürlimann H-481 XF
Built: 1992–2000 · Series: XF-Baureihe
More machines from model year 1992
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hürlimann H-481 XF: water-cooled four-cylinder tractor rated at 58.9 kW and 2,700 kg weight from the XF range built between 1992 and 2000
Hürlimann was an independent Swiss tractor brand that became part of the same corporate group as SAME, Deutz-Fahr and Lamborghini and continued under its own name. The XF range, with the H-481 XF model, occupied a mid-power segment within it, aimed at mixed farms.
Read on 3 more paragraphs
The H-481 XF is powered by a water-cooled four-cylinder engine of 4,000 cc, producing 58.9 kW (80 hp) at 2,350 rpm with 258 Nm of torque. At a weight of 2,700 kg, a wheelbase of 2,082 mm and a width of 1,560 mm, the tractor reaches a design top speed of 40 km/h. Height stands at 2,430 mm and length at 3,797 mm. The engine runs on diesel.
A four-cylinder of four litres at a comparatively light weight of 2,700 kg marks a light-to-medium field tractor, the kind used for tillage and drawbar work of moderate force. The 40 km/h top speed requires the German T driving licence category, the power take-off runs at the standard 540 or 1,000 rpm, and the three-point hitch follows ISO 730, typically fitted with category 1 or 2 implements at this weight.
Buying a used four-cylinder this old, the injection system, the cooling system and hydraulic tightness deserve particular attention. Also worth checking at inspection are the sheet metal for rust damage, the condition of the PTO bearings, the clutch and weighing recorded hours against overall condition.
Sources: SpecCodex-Register: Kennwerte des Modells H-481 XF
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 80 hp (58.9 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Torque | 258 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,000 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 17correct |
| Injection pressure | 181 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,797 mmcorrect |
|---|---|
| Width | 1,560 mmcorrect |
| Height | 2,430 mmcorrect |
| Wheelbase | 2,082 mmcorrect |
| Ground clearance | 350 mmcorrect |
| Unladen weight | 2,700 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 16V/16Rcorrect |
| Front tyres | 9.5 R 20 AScorrect |
| Rear tyres | 14.9 R 28 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 21.8 kW/t (59 kW / 2.7 t)
Power class: Universal (40–100 hp)
Stronger than 55% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Slh Hürlimann H-481 XF have?
The Slh Hürlimann H-481 XF delivers 80 hp.
How much does the Slh Hürlimann H-481 XF weigh?
The unladen weight is 2,700 kg.
What engine does the Slh Hürlimann H-481 XF have?
4 cylinders, 4,000 cm³ displacement, Diesel.
How fast does the Slh Hürlimann H-481 XF go?
Top speed is 40 km/h.
What are the dimensions of the Slh Hürlimann H-481 XF?
3,797 mm × 1,560 mm × 2,430 mm.
When was the Slh Hürlimann H-481 XF built?
Production years: 1992–2000.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
