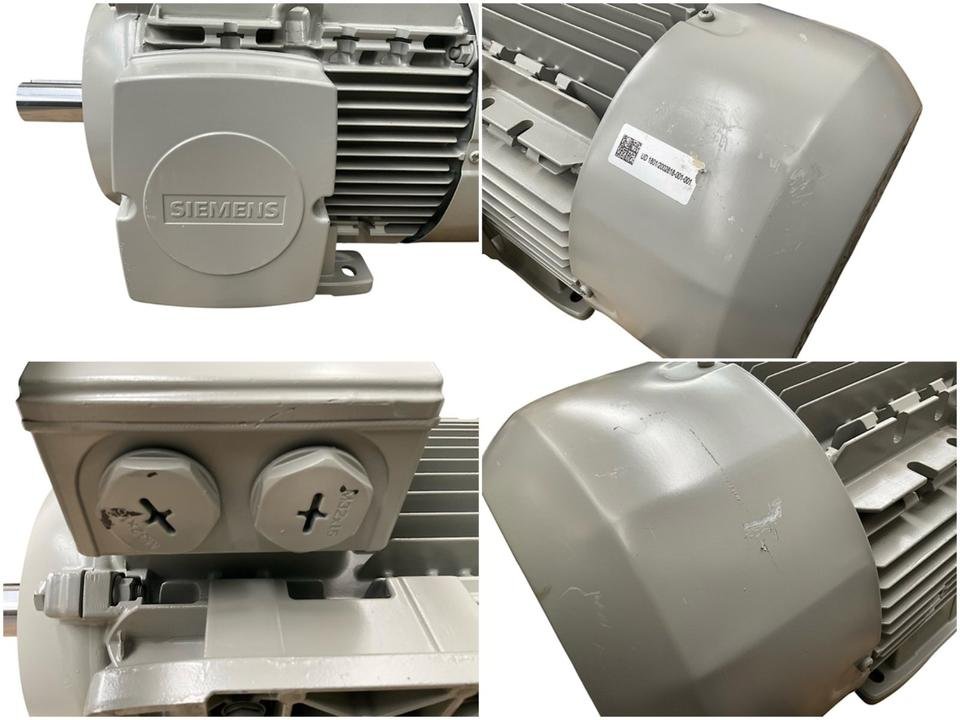

Siemens 1LA52232AA94

Series: 1LA

Source: kleinanzeigen.de

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Siemens 1LA52232AA94 is a three-phase induction motor from the Siemens range. The rated output is 39 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 415 V. The housing is frame size 225 M. The protection class is IP56 and IP55. The efficiency is 92.5 per cent at full load, 92.7 per cent at 75 per cent load and 91.9 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5, B35, B14, V1, V5 and V6. The motor is built in Germany. The values are recorded in the Australian MEPS registration under the GEMS Determination 2012; measured to AS/NZS 1359.102.3:2000. Rated output across the Siemens range ranges from 0.75 to 200 kW; the 1LA52232AA94 sits in the lower part of that range with 39 kW. Its immediate neighbours are the 7.6701.0 below it with 37 kW and the 1AV3206A above it with 45 kW. 569 Siemens models across 4 series are on record.

Siemens – 1LA series at a glance

The 1LA series from Siemens comprises 17 models in the register, in the Electric motors group. Rated power ranges from 2 to 39 kW. Listed in the register: 1 LA5 207-2, 1 LA5 209-2, 1LA, 1LA5189-2AA61-2AA-Z.

Sources: SpecCodex-Register (eigene Daten)

Technical data

Engine

Rated output39 kWcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles2correct
Protection classIP56, IP55correct
Frame size225 M (foot or flange)correct
Mounting (IEC 60034-7)B3, B5, B35, B14, V1, V5, V6correct
Efficiency at full load92.5 %correct
Efficiency at 75 % load92.7 %correct
Efficiency at half load91.9 %correct

Origin and approval

Country of manufactureGermanycorrect

Other data

Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the Siemens 1LA52232AA94 have?

The Siemens 1LA52232AA94 delivers 39 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
