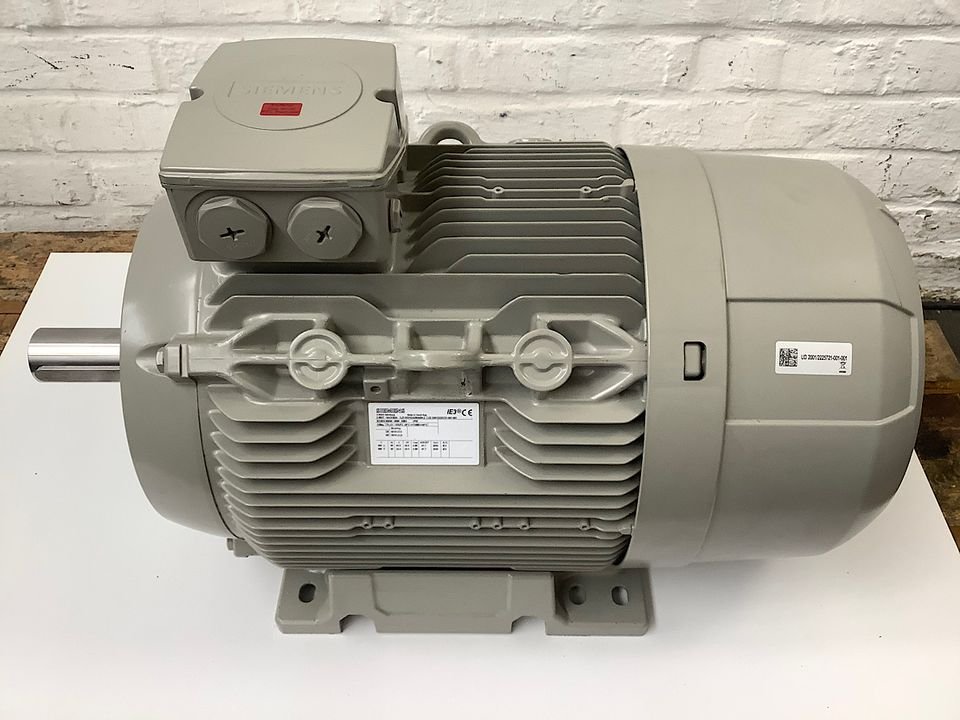

Siemens 1CV3186A

Series: 1CV3

Source: kleinanzeigen.de

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 1CV3186A from Siemens is a three-phase induction motor. The rated output is 30 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The housing is frame size 180 L in foot-mounted form. The protection class is IP55. The efficiency is 93.7 per cent at full load, 94.3 per cent at 75 per cent load and 94.4 per cent at half load. The motor weighs 120 kg. Stated countries of manufacture: Germany and Czechia. The values are recorded in the Australian MEPS registration under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the Siemens range ranges from 0.75 to 200 kW; the 1CV3186A sits at the bottom of that range with 30 kW. Its immediate neighbours are the 1PC31041-DA70-0FA0 below it with 26 kW and the 1CE3222B above it with 36 kW. 569 Siemens models across 4 series are on record.

Siemens – 1CV3 series at a glance

The 1CV3 series from Siemens comprises 82 models in the register, in the Electric motors group. Rated power ranges from 1 to 160 kW. Listed in the register: 1CV2182A, 1CV2222B, 1CV2252B, 1CV2280B.

Sources: SpecCodex-Register (eigene Daten)

Technical data

Engine

Rated output30 kWcorrect

Dimensions and weights

Weight120 kgcorrect

Electrical data

Number of poles2correct
Protection classIP55correct
Frame size180 L (foot)correct
Mounting (IEC 60034-7)B3, B5, B6, B7, B8, B9, B10, B14, B15, B20, B25, B30, B34, B35, V1, V2, V3, V4, V5, V6, V8, V9, V10, V14, V15, V16, V18, V19, V30, V31, V36correct
Efficiency at full load93.73 %correct
Efficiency at 75 % load94.35 %correct
Efficiency at half load94.36 %correct

Origin and approval

Country of manufactureGermany, Czechiacorrect

Other data

Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the Siemens 1CV3186A have?

The Siemens 1CV3186A delivers 30 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
