Siemens 1AV4204A

Series: 1AV

Source: snab-region.ru

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

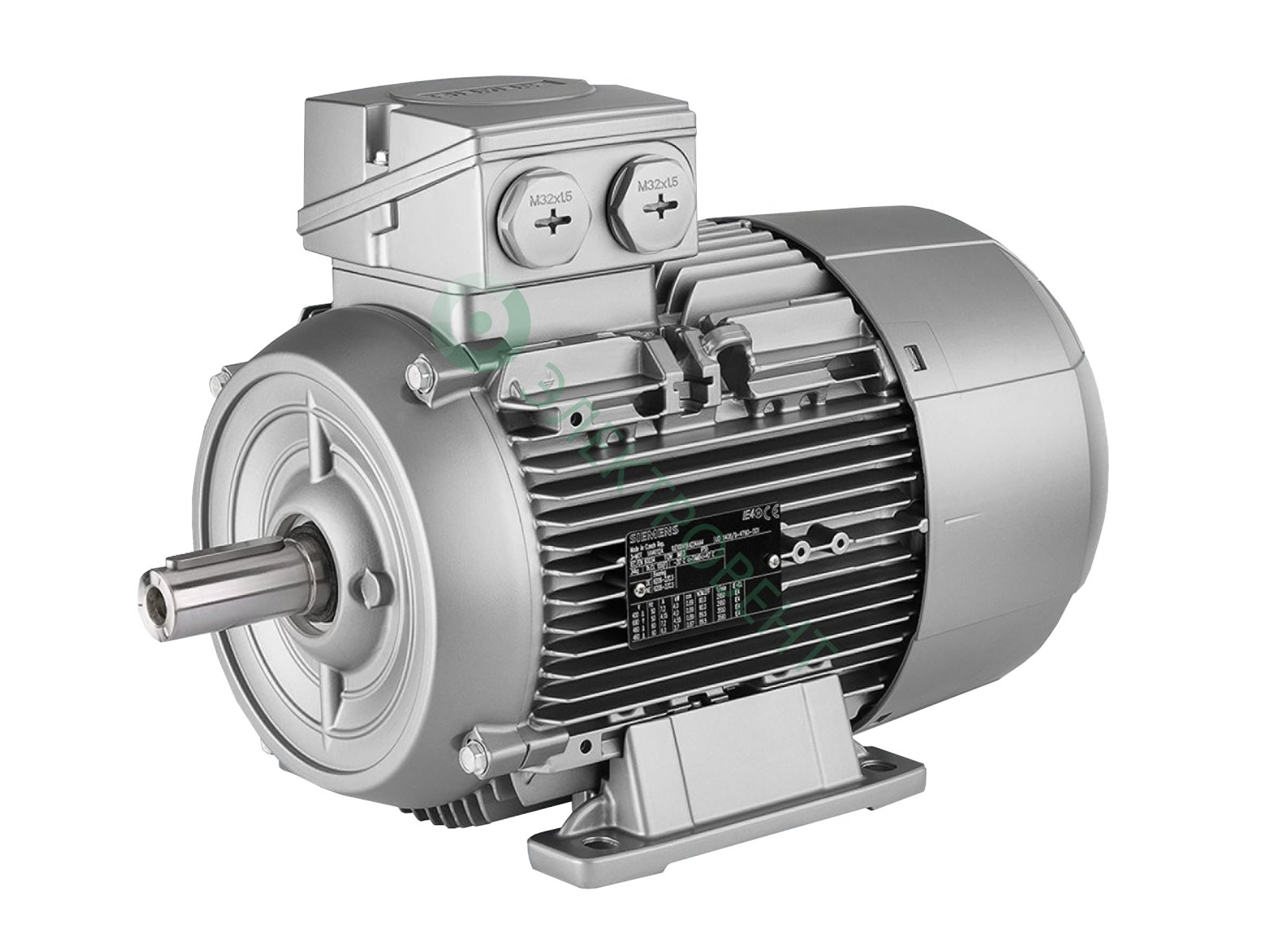

The Siemens 1AV4204A is a three-phase induction motor built by Siemens. The rated output is 30 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The housing is frame size 200 L in foot-mounted form. The protection class is IP55. The efficiency is 94.7 per cent at full load, 94.9 per cent at 75 per cent load and 94.4 per cent at half load. The motor weighs 169 kg. At full load it delivers 96.8 Nm. Stated countries of manufacture: Czechia and Germany. The figures come from the Australian MEPS register under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the Siemens range ranges from 0.75 to 200 kW; the 1AV4204A sits at the bottom of that range with 30 kW. Its immediate neighbours are the 1PC31041-DA70-0FA0 below it with 26 kW and the 1CE3222B above it with 36 kW. 569 Siemens models across 4 series are on record.

Siemens – 1AV series at a glance

The 1AV series from Siemens comprises 71 models in the register, in the Electric motors group. Rated power ranges from 1 to 45 kW. Listed in the register: 1AV2162C, 1AV2166A, 1AV2166B, 1AV2167B.

Sources: SpecCodex-Register (eigene Daten)

Technical data

Engine

Rated output30 kWcorrect

Dimensions and weights

Weight169 kgcorrect

Electrical data

Number of poles2correct
Protection classIP55correct
Frame size200 L (foot)correct
Mounting (IEC 60034-7)B3, B5, B6, B7, B8, B9, B10, B14, B15, B20, B25, B30, B34, B35, V1, V2, V3, V4, V5, V6, V8, V9, V10, V14, V15, V16, V18, V19, V30, V31, V36correct
Efficiency at full load94.7 %correct
Efficiency at 75 % load94.9 %correct
Efficiency at half load94.4 %correct

Origin and approval

Country of manufactureCzechia, Germanycorrect

Other data

Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the Siemens 1AV4204A have?

The Siemens 1AV4204A delivers 30 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
