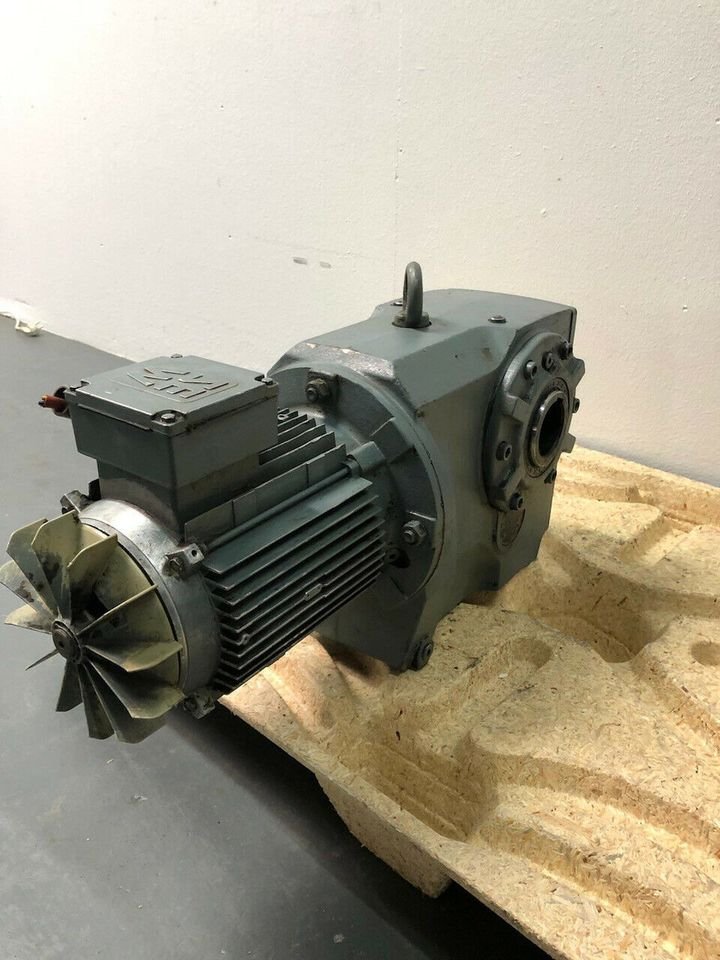

SEW-EURODRIVE EDRN280M4
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
SEW-Eurodrive – other models: the collective page of three-phase motors outside the named ranges from the Australian GEMS/MEPS register, 0.75 to 160 kW, 2- to 6-pole, IP54 to IP66, efficiencies up to 96.5%
This page gathers the SEW-Eurodrive three-phase motors the register could not assign to a named range, from the Australian GEMS/MEPS registration database for electric motors. SEW-Eurodrive is headquartered in Bruchsal and is best known for geared motors, the combination of an electric motor with an attached gearbox; the motors recorded here, however, are the manufacturer's standalone motor ranges. The register lists several manufacturing countries at once for a number of models – for instance Germany, France, the USA, Brazil, China, New Zealand and Australia in varying combinations – reflecting SEW-Eurodrive's international plant network, though a single country of manufacture per model cannot be reliably determined from it. The type codes recognisably follow the pattern DRE-frame size-pole count, for example DRE100L4; at SEW-Eurodrive the prefix DR denotes the three-phase motor range, and the additional E marks an energy-efficient version.
Read on 3 more paragraphs
The register lists here 210 versions from 0.75 to 160 kW, 2- to 6-pole, with efficiencies from 74.6 to 96.5% at both full load and 75% load, protection classes mostly between IP54 and IP66, and frame sizes from 80 to 315 (IEC). Of the 177 models with a GEMS classification recorded, 82 reach the "2005 High Efficiency Level" and one model the "2018 High Efficiency Level"; the rest carry no such classification.
SEW-Eurodrive is one of the leading drive manufacturers for machine and plant construction; the standalone motors gathered here cover the range outside the large, separately maintained series and are typically also used detached from the gearbox, for instance as a replacement motor or for direct drives.
For used SEW motors, alongside the usual checkpoints – winding insulation resistance, bearing running noise and play, free running of the shaft, condition of the fan and fan cowl – it is especially worth matching frame size, pole count, protection class and efficiency class on the rating plate against the original geared-motor fitment, if the motor came from such a combination. For inverter operation, winding insulation and bearings should be checked separately.
Sources: SpecCodex register, model data: SEW-Eurodrive – weitere Modelle, SEW-Eurodrive, GEMS-Register (Greenhouse and Energy Minimum Standards, Australien)
Technical data
Engine
| Engine family | DRN280M4correct |
|---|---|
| Engine families | DRN280M4correct |
| Rated output | 90 kWcorrect |
Electrical data
| Rated voltage | 400 Vcorrect |
|---|---|
| Number of poles | 4correct |
| Protection class | IP54, IP55, IP56, IP65, IP66correct |
| Frame size | 280correct |
| Mounting (IEC 60034-7) | B3, B5, B6, B7, B8, B9, B34, B35, V1, V3, V5, V6, V8, V9correct |
| Efficiency at full load | 95.5 %correct |
| Efficiency at 75 % load | 95.8 %correct |
| Efficiency at half load | 95.7 %correct |
Origin and approval
| Country of manufacture | United States of America, New Zealand, Germany, China, Australiacorrect |
|---|
Other data
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
How much power does the SEW-EURODRIVE EDRN280M4 have?
The SEW-EURODRIVE EDRN280M4 delivers 90 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
