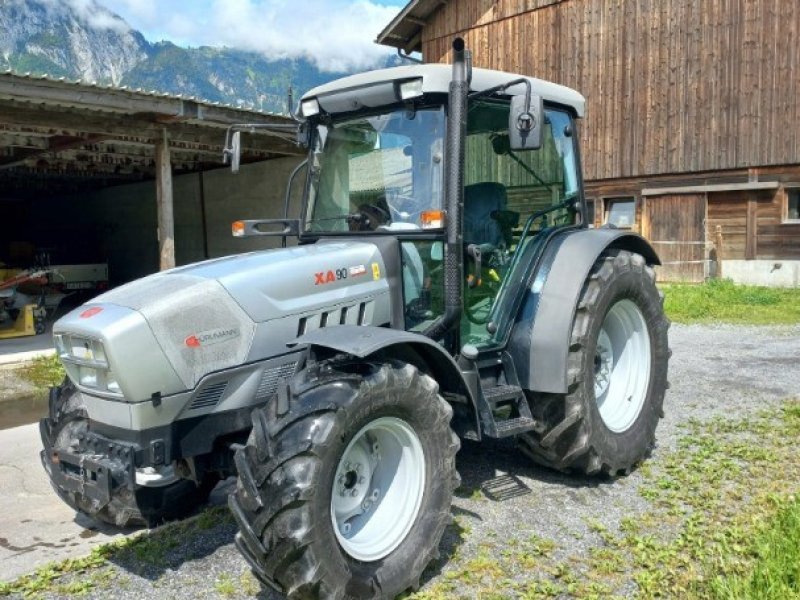

Sdf Hürlimann XA-90 T4i-Tradition

Built: 2014 · Series: XA-Tradition

More machines from model year 2014

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Sdf Hürlimann XA-90 T4i-Tradition belongs to the XA-Tradition series. Production: 2014. The engine delivers 84 hp (61.8 kW), has 3 cylinders, with a displacement of 2,887 cm³. Torque is 354 Nm. Rated speed is 2,200 rpm. The machine is 3,430 mm long, 1,920 mm wide and 2,460 mm high. The unladen weight is 3,200 kg. The wheelbase measures 2,100 mm. Ground clearance is 360 mm. Top speed is 40 km/h. Transmission: 10V/10R or 30V/15R. The engine is water-cooled. Tyres: front 320/70 R 20 AS, rear 420/70 R 30 AS. The fuel is diesel. The bore measures 103 mm. The stroke is 115.5 mm. Maximum torque is reached at 1,600 rpm. Construction: unit construction (no separate frame). The XA-Tradition series covers 3 models. Rated output within it ranges from 75 to 84 hp; the XA-90 T4i-Tradition sits at the top of that range with 84 hp. Its immediate neighbours are the XA-80 T4i Tradition below it with 75 hp. Unladen weight within it ranges from 3,200 to 3,300 kg; here the XA-90 T4i-Tradition sits at the bottom of that range with 3,200 kg. 18 Sdf Hürlimann models across 7 series are on record.

Hürlimann XA-Tradition – three- and four-cylinder diesels to Tier 4i emissions, XA-80 to XA-90.4, 2,887 to 3,849 cc, 55 to 62 kW

Hürlimann's XA-Tradition series continues the brand's classic styling and belongs to the compact class of the SDF group, headquartered in Treviglio, Italy. The register lists the types XA-80 T4i Tradition, XA-90 T4i-Tradition and XA-90.4 T4i-Tradition here; the abbreviation T4i refers to the Tier 4 interim emissions standard to which these models' engines are certified. The Tradition name marks the trim line within the XA series aimed at classic styling.

Read on 3 more paragraphs

The register lists 3 versions here with 55.2 to 61.8 kW from three- and four-cylinder diesel engines of 2,887 to 3,849 cc, torque of 341 to 354 Nm at a constant 2,200 rpm, kerb weights of 3,200 to 3,300 kg, lengths of 3,430 to 3,560 mm, widths of 1,920 to 2,005 mm and heights of 2,460 to 2,485 mm.

With its combination of modern emissions technology and classic styling, the XA-Tradition targeted holdings looking for a currently certified yet visually conservative all-rounder in the mid power class.

When buying a used XA-Tradition model, the key points are the condition of the engine and exhaust aftertreatment, as Tier 4i technology reacts more sensitively to maintenance neglect than earlier stages, plus wear on clutch and gearbox, tightness of the hydraulics and corrosion on cab and chassis; spare parts run through the SDF group's parts channels.

Sources: SpecCodex register, model data: Hürlimann XA-Tradition, Hürlimann (Hersteller, SDF-Gruppe)

Technical data

Engine

Fuel	dieselcorrect
Power	84 hp (61.8 kW)correct
Rated speed	2,200 rpmcorrect
Torque	354 Nmcorrect
Speed at max. torque	1,600 rpmcorrect
Cylinders	3correct
Displacement	2,887 cm³correct
Bore	103 mmcorrect
Stroke	115.5 mmcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,430 mmcorrect
Width	1,920 mmcorrect
Height	2,460 mmcorrect
Wheelbase	2,100 mmcorrect
Ground clearance	360 mmcorrect
Unladen weight	3,200 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	10V/10R or 30V/15Rcorrect
Front tyres	320/70 R 20 AScorrect
Rear tyres	420/70 R 30 AScorrect
Top speed	40 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 19.3 kW/t (62 kW / 3.2 t)

Power class: Universal (40–100 hp)

Stronger than 58% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Sdf Hürlimann XA-90 T4i-Tradition have?

The Sdf Hürlimann XA-90 T4i-Tradition delivers 84 hp.

How much does the Sdf Hürlimann XA-90 T4i-Tradition weigh?

The unladen weight is 3,200 kg.

What engine does the Sdf Hürlimann XA-90 T4i-Tradition have?

3 cylinders, 2,887 cm³ displacement, Diesel.

How fast does the Sdf Hürlimann XA-90 T4i-Tradition go?

Top speed is 40 km/h.

What are the dimensions of the Sdf Hürlimann XA-90 T4i-Tradition?

3,430 mm × 1,920 mm × 2,460 mm.

When was the Sdf Hürlimann XA-90 T4i-Tradition built?

Production years: 2014.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
