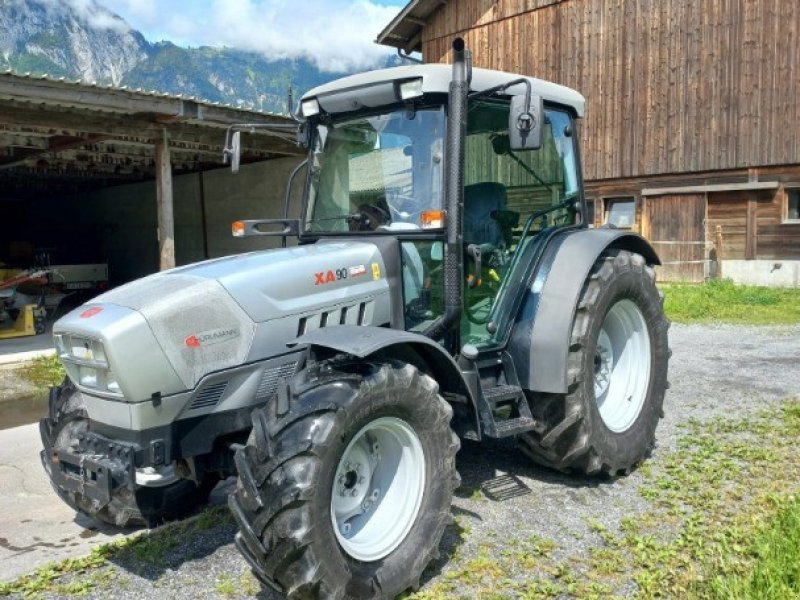

Sdf Hürlimann XA-90 T4i

Built: 2014 · Series: XA/T4i

More machines from model year 2014

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The XA/T4i series from Sdf Hürlimann includes the XA-90 T4i. Production: 2014. The engine delivers 84 hp (61.7 kW), has 3 cylinders, with a displacement of 2,887 cm³. Torque is 354 Nm. Rated speed is 2,200 rpm. The machine is 3,430 mm long, 1,920 mm wide and 2,460 mm high. The unladen weight is 3,200 kg. The wheelbase measures 2,140 mm. Ground clearance is 360 mm. Top speed is 40 km/h. Transmission: 30V/15R or 45V/45R. The engine is water-cooled. Tyres: front 320/70 R 20 AS, rear 420/70 R 30 AS. The fuel is diesel. The bore measures 103 mm. The stroke is 115.5 mm. Maximum torque is reached at 1,600 rpm. Construction: unit construction (no separate frame). The XA/T4i series covers 4 models. Rated output within it ranges from 75 to 97 hp; the XA-90 T4i sits in the middle of that range with 84 hp. Its immediate neighbours are the XA-80 T4i below it with 75 hp and the XA-100.4 T4i above it with 97 hp. Unladen weight within it ranges from 3,200 to 3,300 kg; here the XA-90 T4i sits at the bottom of that range with 3,200 kg. 18 Sdf Hürlimann models across 7 series are on record.

SDF Hürlimann XA T4i – four-cylinder field tractors from SDF's Treviglio plant: types XA-80 to XA-100.4 T4i, 2,887 to 3,849 cm³, 55.2 to 71.4 kW, torque of 341 to 408 Nm

The XA T4i range lists Hürlimann tractors built by the Same Deutz-Fahr Group (SDF), which has run the Hürlimann brand since the 1990s and builds the tractors at its Treviglio plant in Italy. The type designations XA-80 T4i, XA-90 T4i, XA-90.4 T4i and XA-100.4 T4i reflect the approximate power class in horsepower, while the T4i suffix denotes the Tier 4 interim emissions standard to which this engine generation is certified.

Read on 3 more paragraphs

The register lists 4 versions with 55.2 to 71.4 kW from three- and four-cylinder diesel engines of 2,887 to 3,849 cm³ displacement, torque from 341 to 408 Nm and a rated speed of 2,200 rpm throughout; lengths range from 3,430 to 3,560 mm, widths from 1,920 to 2,005 mm, heights from 2,460 to 2,485 mm, and unladen weight falls in the range of 3,200 to 3,300 kg.

The XA T4i range sits in the mid-power segment of the SDF model line-up and is aimed at mixed operations with field, grassland and transport work that need a manoeuvrable but adequately powerful standard tractor, competing with comparable ranges from Deutz-Fahr, Same and Lamborghini within the same group.

On a used XA T4i tractor, the condition of the exhaust-gas recirculation and diesel particulate filter of the Tier 4i engines, the tightness of the hydraulics and lift linkage, the condition of the clutch and gearbox, and the service history of the operating hours all count; parts run through the SDF dealer network for the Hürlimann, Deutz-Fahr and Same brands.

Sources: SpecCodex register, model data: SDF Hürlimann XA/T4i

Technical data

Engine

Fuel	dieselcorrect
Power	84 hp (61.7 kW)correct
Rated speed	2,200 rpmcorrect
Torque	354 Nmcorrect
Speed at max. torque	1,600 rpmcorrect
Cylinders	3correct
Displacement	2,887 cm³correct
Bore	103 mmcorrect
Stroke	115.5 mmcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,430 mmcorrect
Width	1,920 mmcorrect
Height	2,460 mmcorrect
Wheelbase	2,140 mmcorrect
Ground clearance	360 mmcorrect
Unladen weight	3,200 kgcorrect

Drivetrain and chassis

Drive	rear- and four-wheel drivecorrect
Gearbox	30V/15R or 45V/45Rcorrect
Front tyres	320/70 R 20 AScorrect
Rear tyres	420/70 R 30 AScorrect
Top speed	40 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 19.3 kW/t (62 kW / 3.2 t)

Power class: Universal (40–100 hp)

Stronger than 58% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Sdf Hürlimann XA-90 T4i have?

The Sdf Hürlimann XA-90 T4i delivers 84 hp.

How much does the Sdf Hürlimann XA-90 T4i weigh?

The unladen weight is 3,200 kg.

What engine does the Sdf Hürlimann XA-90 T4i have?

3 cylinders, 2,887 cm³ displacement, Diesel.

How fast does the Sdf Hürlimann XA-90 T4i go?

Top speed is 40 km/h.

What are the dimensions of the Sdf Hürlimann XA-90 T4i?

3,430 mm × 1,920 mm × 2,460 mm.

When was the Sdf Hürlimann XA-90 T4i built?

Production years: 2014.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
