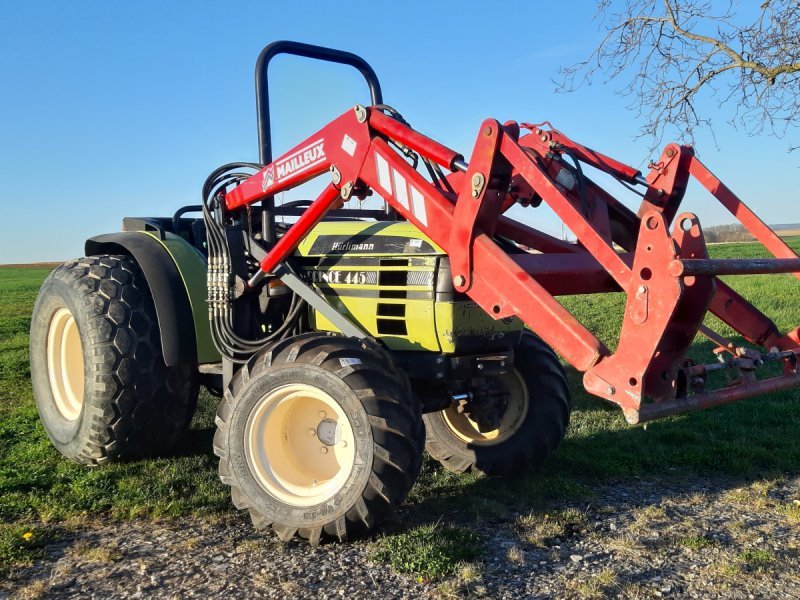

Sdf Hürlimann Prince-445 DT

Built: 1995–1999 · Series: Prince-Baureihe

More machines from model year 1995

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the Prince-445 DT, Sdf Hürlimann offers a model from the Prince series. Production: 1995–1999. The engine delivers 42 hp (30.9 kW), has 4 cylinders, with a displacement of 1,490 cm³. Rated speed is 3,000 rpm. The machine is 3,030 mm long, 1,260 mm wide and 2,030 mm high. The unladen weight is 1,240 kg. The wheelbase measures 1,700 mm. Ground clearance is 390 mm. Top speed is 30 km/h. Transmission: 12V/12R. The engine is water-cooled. Tyres: front 7.50-16 AS, rear 360/70 R 24 AS. The fuel is diesel. The bore measures 78 mm. The stroke is 78 mm. The compression ratio is 18:1. Construction: unit construction (no separate frame). The Prince-Baureihe series covers 3 models. Rated output within it ranges from 35 to 42 hp; the Prince-445 DT sits at the top of that range with 42 hp. Its immediate neighbours are the Prince 435 DT below it with 35 hp. Unladen weight within it ranges from 1,110 to 1,240 kg; here the Prince-445 DT sits at the top of that range with 1,240 kg. 18 Sdf Hürlimann models across 7 series are on record.

Hürlimann Prince series – compact three- and four-cylinder diesels with four-wheel drive, Prince 335 DT to 445 DT, 1,490 to 1,566 cc, up to 31 kW

Hürlimann's Prince series belongs to the compact class of the brand within the SDF group, headquartered in Treviglio, Italy. The register lists the types Prince 335 DT, Prince 435 DT and Prince-445 DT here; the abbreviation DT stands, in Italian tractor nomenclature, for Doppia Trazione, or four-wheel drive, fitted to all three models of the series. The compact three- and four-cylinder engines of the Prince series targeted holdings looking for a manoeuvrable yet four-wheel-drive all-rounder.

Read on 3 more paragraphs

The register lists 3 versions here with 25.8 to 30.9 kW from three- and four-cylinder diesel engines of 1,490 to 1,566 cc at a constant 3,000 rpm, kerb weights of 1,110 to 1,240 kg, lengths of 2,690 to 3,030 mm, widths of 1,020 to 1,260 mm and heights of 2,000 to 2,030 mm.

With its compact build and standard four-wheel drive, the Prince series positioned itself in the segment of small all-rounders for special crops, fruit growing and viticulture and municipal work, where manoeuvrability and traction mattered more than raw engine power.

When buying a used Prince model, the key points are the condition of the engine and injection pump, wear on the four-wheel-drive system and front-axle gearing, and tightness of the hydraulics, plus corrosion on cab and chassis; spare parts for the Prince series are available through the SDF group's parts channels.

Sources: SpecCodex register, model data: Hürlimann Prince-Baureihe, Hürlimann (Hersteller, SDF-Gruppe)

Technical data

Engine

Fuel	dieselcorrect
Power	42 hp (30.9 kW)correct
Rated speed	3,000 rpmcorrect
Cylinders	4correct
Displacement	1,490 cm³correct
Bore	78 mmcorrect
Stroke	78 mmcorrect
Compression ratio	18correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,030 mmcorrect
Width	1,260 mmcorrect
Height	2,030 mmcorrect
Wheelbase	1,700 mmcorrect
Ground clearance	390 mmcorrect
Unladen weight	1,240 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	12V/12Rcorrect
Front tyres	7.50-16 AScorrect
Rear tyres	360/70 R 24 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 24.9 kW/t (31 kW / 1.2 t)

Power class: Universal (40–100 hp)

Stronger than 27% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Sdf Hürlimann Prince-445 DT have?

The Sdf Hürlimann Prince-445 DT delivers 42 hp.

How much does the Sdf Hürlimann Prince-445 DT weigh?

The unladen weight is 1,240 kg.

What engine does the Sdf Hürlimann Prince-445 DT have?

4 cylinders, 1,490 cm³ displacement, Diesel.

How fast does the Sdf Hürlimann Prince-445 DT go?

Top speed is 30 km/h.

What are the dimensions of the Sdf Hürlimann Prince-445 DT?

3,030 mm × 1,260 mm × 2,030 mm.

When was the Sdf Hürlimann Prince-445 DT built?

Production years: 1995–1999.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
