Sdf Hürlimann Prince-325 DT
Built: 1995–1999 · Series: Erste Prince-Baureihe
More machines from model year 1995
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

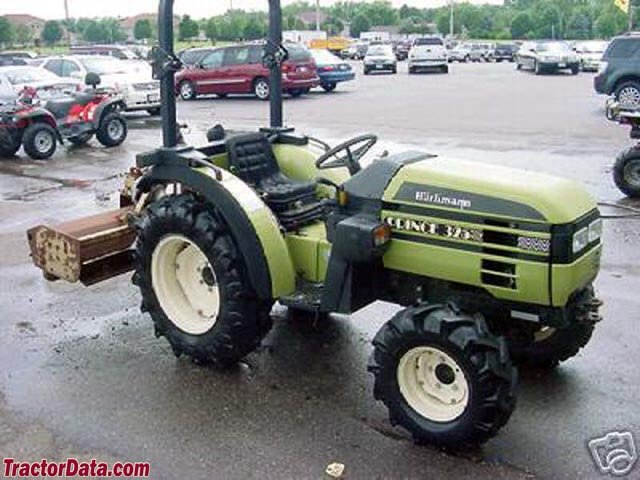

SDF Hürlimann Prince-325 DT: four-wheel-drive compact three-cylinder tractor rated at 18.4 kW, 1,118 cc displacement and 1,060 kg weight from the first Prince range
Hürlimann was an independent Swiss tractor brand that became part of the same corporate group as SAME, Deutz-Fahr and Lamborghini and continued under its own name. The first Prince range occupied a compact power segment within it, aimed at smaller farms, orchards and grassland upkeep.
Read on 3 more paragraphs
The Prince-325 DT is powered by a water-cooled three-cylinder engine of 1,118 cc, producing 18.4 kW (25 hp) at 3,000 rpm. The DT suffix, as usual with manufacturers from the same corporate group, stands for doppia trazione, meaning four-wheel drive. At a weight of 1,060 kg, a wheelbase of 1,540 mm and a width of 1,120 mm, the tractor reaches a design top speed of 25 km/h. Height stands at 1,960 mm and length at 2,690 mm. The engine runs on diesel.
A three-cylinder of this size with four-wheel drive and a weight of just over a tonne marks a compact all-purpose tractor, the kind used for grassland upkeep, orchard work and light drawbar tasks on smaller plots. The 25 km/h top speed falls within the L driving licence category, the power take-off runs at the standard 540 rpm, and the three-point hitch at this size typically takes category 1 implements.
Buying a used compact tractor this small, the engagement of the front axle for four-wheel drive deserves particular attention, as do the condition of the hydraulic hoses and the PTO bearings. Since such machines often worked in orchards with a tight turning radius, checking the steering and the front axle bearings also belongs at inspection.
Sources: SpecCodex-Register: Kennwerte des Modells Prince-325 DT
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 25 hp (18.4 kW)correct |
| Rated speed | 3,000 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,118 cm³correct |
| Bore | 78 mmcorrect |
| Stroke | 78 mmcorrect |
| Compression ratio | 18correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,690 mmcorrect |
|---|---|
| Width | 1,120 mmcorrect |
| Height | 1,960 mmcorrect |
| Wheelbase | 1,540 mmcorrect |
| Ground clearance | 320 mmcorrect |
| Unladen weight | 1,060 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 12V/12Rcorrect |
| Front tyres | 7.00-12 AScorrect |
| Rear tyres | 11.2 R 20 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 17.4 kW/t (18 kW / 1.1 t)
Power class: Compact (< 40 hp)
Stronger than 12% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Sdf Hürlimann Prince-325 DT have?
The Sdf Hürlimann Prince-325 DT delivers 25 hp.
How much does the Sdf Hürlimann Prince-325 DT weigh?
The unladen weight is 1,060 kg.
What engine does the Sdf Hürlimann Prince-325 DT have?
3 cylinders, 1,118 cm³ displacement, Diesel.
How fast does the Sdf Hürlimann Prince-325 DT go?
Top speed is 25 km/h.
What are the dimensions of the Sdf Hürlimann Prince-325 DT?
2,690 mm × 1,120 mm × 1,960 mm.
When was the Sdf Hürlimann Prince-325 DT built?
Production years: 1995–1999.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
