Sdf 5105G TB
Built: 2018 · Series: 5G TB
More machines from model year 2018
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

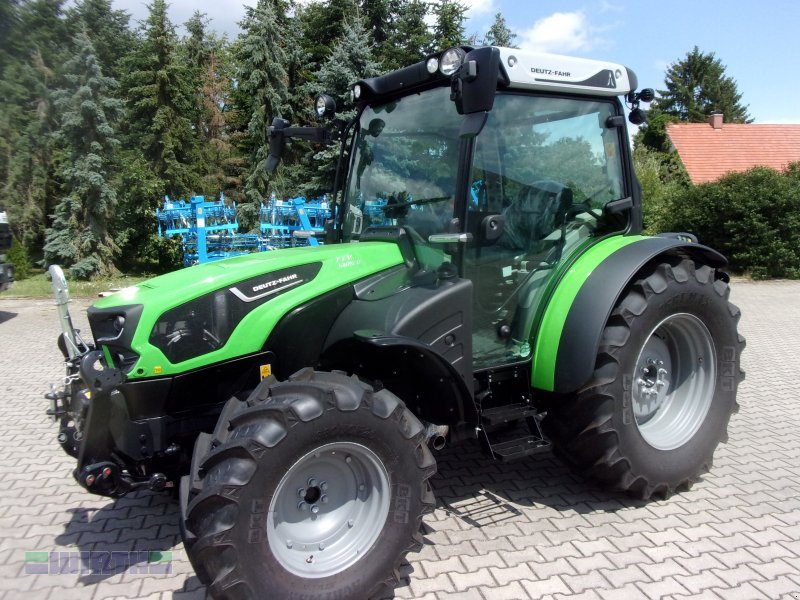

SDF 5105G TB: water-cooled four-cylinder narrow-track tractor rated at 72 kW with 290 mm ground clearance from the 5G TB range
SDF is the Italian corporate group headquartered in Treviglio, which brought together the tractor brands SAME, Deutz-Fahr, Lamborghini and Hürlimann. The 5G TB range in this programme denotes narrower, tall-standing versions, needed in orchards and vineyards and in crops with tight row spacing.
Read on 3 more paragraphs
The 5105G TB is powered by a water-cooled four-cylinder engine of 3,849 cc, producing 72 kW (97 hp) at 2,000 rpm. At a ground clearance of 290 mm, a wheelbase of 2,400 mm and a width of 1,939 mm, the tractor weighs 3,200 kg. The hydraulic lift capacity is 3,600 kg, the length 4,125 mm, with 420/70R24 tyres fitted at the rear. The engine runs on diesel.
A ground clearance of 290 mm combined with a width of 1,939 mm, narrow for this power class, marks a specialised tractor for row crops, where it must travel between planted rows without damaging branches or fruit. The power take-off runs at the standard 540 or 1,000 rpm, and the three-point hitch follows ISO 730.
Buying a used narrow-track tractor for orchard or vineyard work is worth a close check of the bodywork for damage from branch contact in tight rows, along with the condition of the hydraulic hoses and PTO bearings. Since such tractors are often fitted with implements for spraying or mulching, also worth checking at inspection are any mounting plates already fitted.
Sources: SpecCodex-Register: Kennwerte des Modells 5105G TB
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 97 hp (72 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,849 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,125 mmcorrect |
|---|---|
| Width | 1,939 mmcorrect |
| Wheelbase | 2,400 mmcorrect |
| Ground clearance | 290 mmcorrect |
| Unladen weight | 3,200 kgcorrect |
Drivetrain and chassis
| Rear tyres | 420/70R24correct |
|---|
Working data
| Lifting capacity | 3,600 kgcorrect |
|---|
Where this model stands
Power-to-weight ratio: 22.5 kW/t (72 kW / 3.2 t)
Power class: Universal (40–100 hp)
Stronger than 65% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Sdf 5105G TB have?
The Sdf 5105G TB delivers 97 hp.
How much does the Sdf 5105G TB weigh?
The unladen weight is 3,200 kg.
What engine does the Sdf 5105G TB have?
4 cylinders, 3,849 cm³ displacement, Diesel.
How much does the rear linkage of the Sdf 5105G TB lift?
The rear linkage lifts 3,600 kg.
What are the dimensions of the Sdf 5105G TB?
4,125 mm × 1,939 mm.
When was the Sdf 5105G TB built?
Production years: 2018.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: Wikibooks Traktorenlexikon (CC BY-SA 4.0) (retrieved August 2026) · How we check the data
