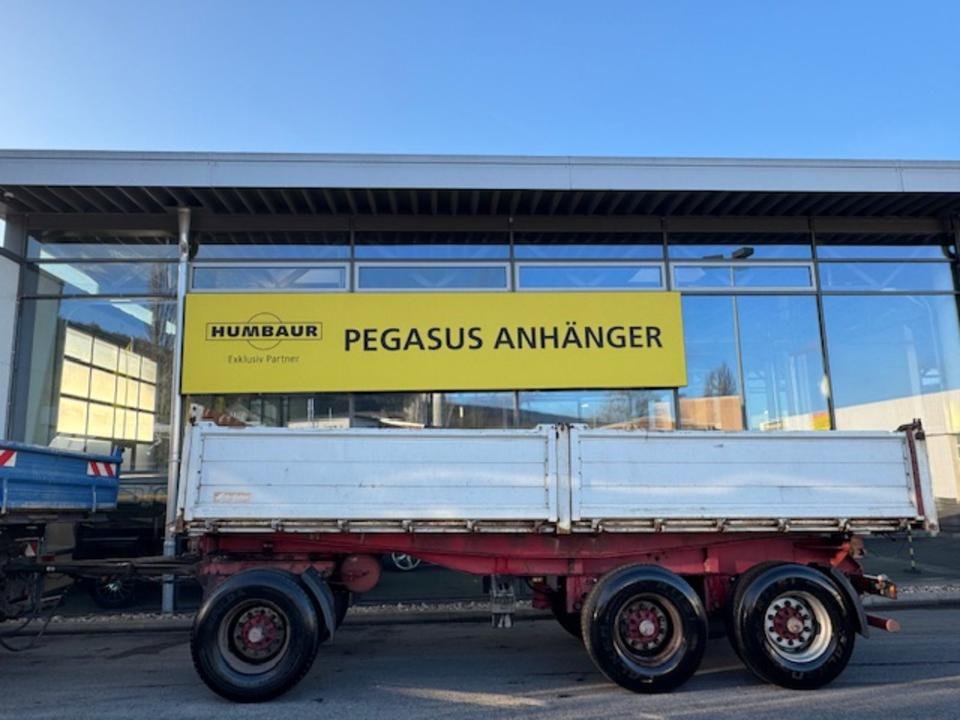

Schroder AZ12C8-9,0
Built: 2007-2007 · Series: Other models
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Schroder – other models: the collective page of trailers outside the named ranges, from ASCOT and AZ 12 through AZ 16/10 to T103 and XL, 660 to 4,200 kg unladen weight, 1,040 to 16,000 kg gross weight
This page gathers the Schroder trailers the register could not assign to a named range. The type designations follow no single scheme: alongside names such as ASCOT and XL stand letter-number combinations such as AZ 12, AZ 16/10, AZ12C8-9,0 and T103, with no model-year sequence or fixed size logic readable from them. As with many smaller trailer brands, the figures are drawn from registration data, in which each model is listed individually with its technical values.
Read on 3 more paragraphs
The register lists here 8 versions with unladen weights from 660 to 4,200 kg, gross weights from 1,040 to 16,000 kg, a length of 11,650 mm and widths from 1,950 to 2,550 mm.
The range thus runs from light single-axle trailers to versions close to the semi-trailer class, of the kind towed behind commercial vehicles. For registration, besides the trailer's gross weight the tow vehicle's rated towing capacity is always decisive too, since it sets the real limit of the combination.
On a used example, axle and wheel-bearing condition, the function of the overrun or service brake with its linkage, rust on frame and drawbar, the state of lighting and plug, and tyres and rims all count; on the heavier versions also the condition of the kingpin housing and air suspension. Parts for such small brands usually come through independent trailer workshops rather than a manufacturer network.
Technical data
Dimensions and weights
| Width | 2,540 mmcorrect |
|---|---|
| Wheelbase | 2,050 mmcorrect |
| Unladen weight | 4,020 kgcorrect |
| Gross vehicle weight | 12,500 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Schroder AZ12C8-9,0 weigh?
The unladen weight is 4,020 kg.
What is the gross vehicle weight of the Schroder AZ12C8-9,0?
12,500 kg.
Up to what speed is the Schroder AZ12C8-9,0 approved?
Approved up to 100 km/h.
When was the Schroder AZ12C8-9,0 built?
Production years: 2007.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 7 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
