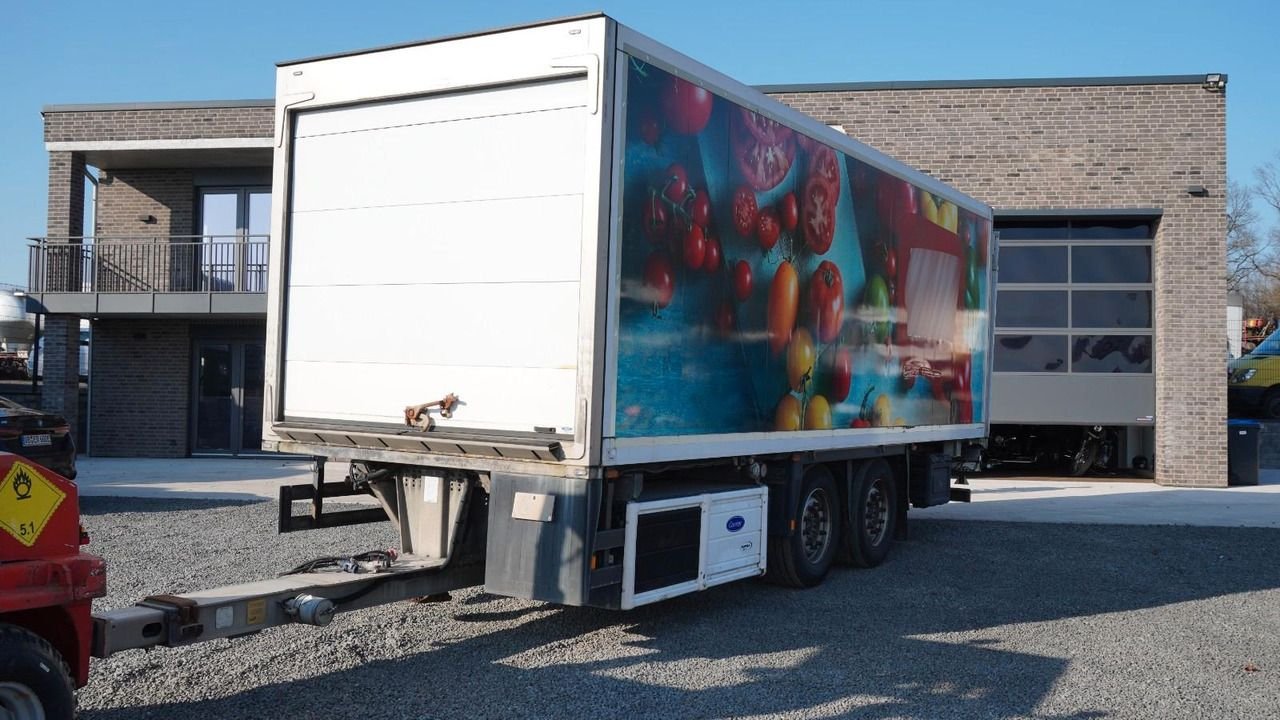

Schmitz ZKO 20
Built: 2002 · Series: ZKO
More machines from model year 2002
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Schmitz ZKO – reefer trailer range from Horstmar: eight versions with kerb weight 5,650 to 7,340 kg, gross weight 18,000 to 20,000 kg, width 2,600 mm
Schmitz Cargobull markets insulated box semi-trailers under the ZKO range, linked to its Horstmar plant. Several model names, such as ZKO 18/L 7.7 FP45 COOL and ZKO 20/L8.42FP45 COOL, carry the suffix COOL, marking the version as a refrigerated trailer; the combination of body length and the panel code FP45 or FP80/45 describes the specific equipment.
Read on 3 more paragraphs
The register lists 8 versions with kerb weights from 5,650 to 7,340 kg and gross vehicle weights from 18,000 to 20,000 kg. Lengths are 9,990 to 10,140 mm and the width is 2,600 mm throughout.
Reefer semi-trailers such as the ZKO range carry temperature-controlled goods such as food and pharmaceutical products, requiring insulated walls and their own cooling unit. Schmitz Cargobull is one of the largest European semi-trailer manufacturers and supplies hauliers across Europe from several plants, including Horstmar. Refrigerated semi-trailers such as these form an important segment of Schmitz Cargobull's overall semi-trailer production, alongside curtainsiders and tippers.
When buying a used reefer trailer, check the condition of the cooling unit, the tightness of the insulation panels and door seals, and the interior lining for damage. Add the usual points of frame, axle suspension, brakes and kingpin; spare parts are supplied through Schmitz Cargobull's own service network.
Sources: SpecCodex register, model data: Schmitz ZKO, Schmitz Cargobull (manufacturer)
Technical data
Dimensions and weights
| Length | 10,140 mmcorrect |
|---|---|
| Width | 2,600 mmcorrect |
| Wheelbase | 1,810 mmcorrect |
| Unladen weight | 6,780 kgcorrect |
| Gross vehicle weight | 20,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Schmitz ZKO 20 weigh?
The unladen weight is 6,780 kg.
What is the gross vehicle weight of the Schmitz ZKO 20?
20,000 kg.
Up to what speed is the Schmitz ZKO 20 approved?
Approved up to 100 km/h.
What are the dimensions of the Schmitz ZKO 20?
10,140 mm × 2,600 mm.
When was the Schmitz ZKO 20 built?
Production years: 2002.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
