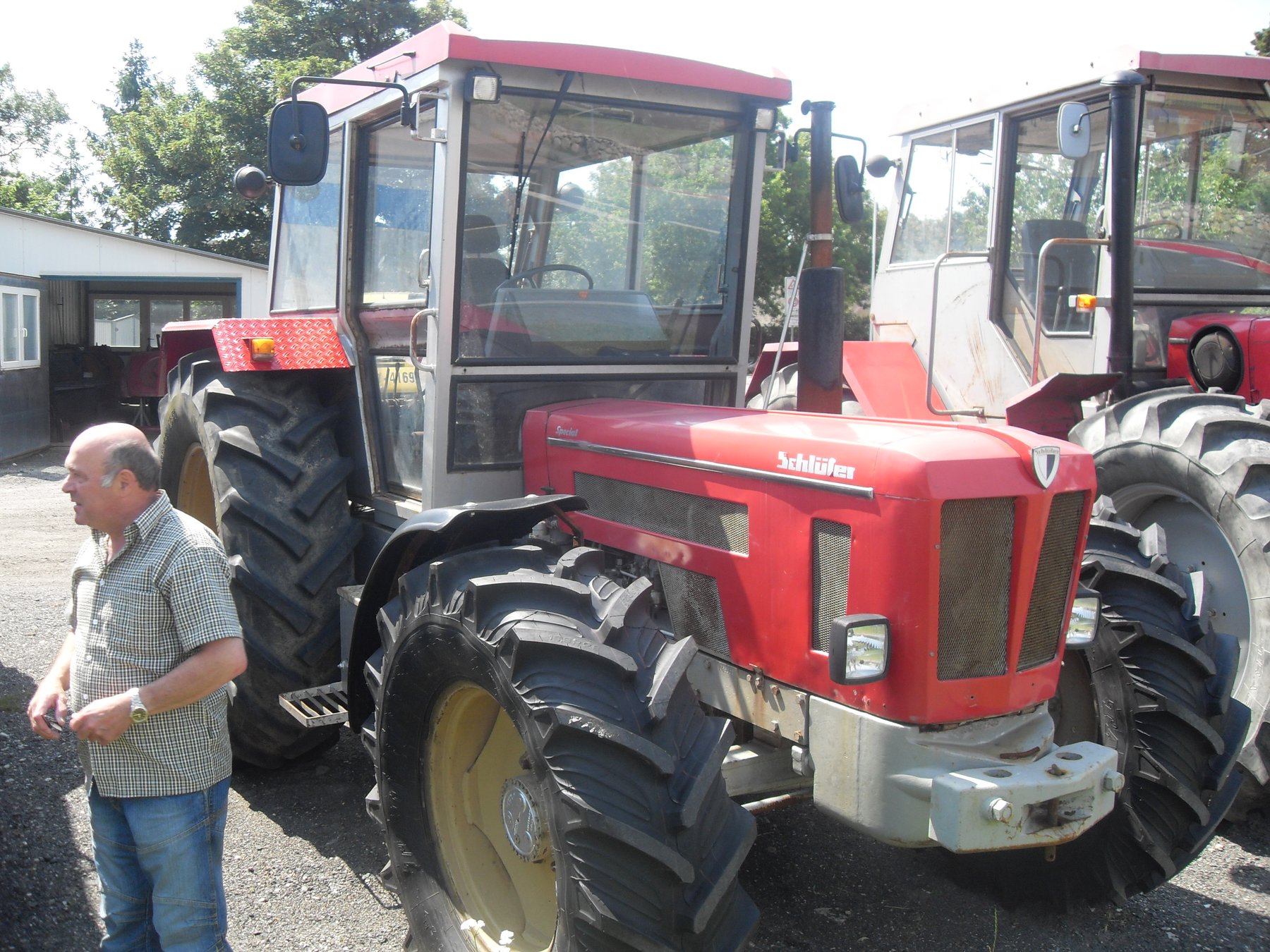

Schlüter 1050 V Special
Built: 12/1981–5/1987 · Series: Special - Serie
More machines from model year 1981
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Schlüter 1050 V Special: six-cylinder large tractor rated at 80.5 kW, 7.1-litre displacement and 5,300 kg weight from the Special range
Schlüter was a German tractor manufacturer based in Freising in Bavaria, building tractors from the 1930s until it ceased production in 1993, known during the 1980s chiefly for its high-output large tractors. The Special range, with the 1050 V Special model, belonged to this upper power segment.
Read on 3 more paragraphs
The 1050 V Special is powered by a water-cooled six-cylinder engine of 7,127 cc, producing 80.5 kW (110 hp) at 1,800 rpm with 452 Nm of torque. At a weight of 5,300 kg, a wheelbase of 2,720 mm and a width of 2,360 mm, the tractor reaches a design top speed of 33.5 km/h. Height stands at 2,845 mm and length at 4,670 mm. The engine runs on diesel.
A six-cylinder of more than seven litres marks a heavy field tractor, the kind used for tillage and drawbar work demanding high pulling force on larger farms. The 33.5 km/h top speed falls within the L driving licence category, the power take-off runs at the standard 540 or 1,000 rpm, and the three-point hitch follows ISO 730, typically carrying category 2 implements at this weight.
Buying a used six-cylinder this heavy from the 1980s, the injection system, the cooling system and hydraulic tightness deserve particular attention. Also worth checking at inspection are the sheet metal for rust damage, the condition of the PTO bearings and weighing recorded hours against overall condition.
Sources: SpecCodex-Register: Kennwerte des Modells 1050 V Special
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 110 hp (80.5 kW)correct |
| Rated speed | 1,800 rpmcorrect |
| Torque | 452 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 7,127 cm³correct |
| Bore | 110 mmcorrect |
| Stroke | 125 mmcorrect |
| Compression ratio | 18correct |
| Injection pressure | 260 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,670 mmcorrect |
|---|---|
| Width | 2,360 mmcorrect |
| Height | 2,845 mmcorrect |
| Wheelbase | 2,720 mmcorrect |
| Unladen weight | 5,300 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 12V / 6Rcorrect |
| Front tyres | 12.4 R 28correct |
| Rear tyres | 16.9 R 38correct |
| Top speed | 33.5 km/hcorrect |
Working data
| Fuel tank capacity | 310 lcorrect |
|---|
Origin and approval
| Units built | 105correct |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 15.2 kW/t (80 kW / 5.3 t)
Power class: Large (100–180 hp)
Stronger than 70% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Schlüter 1050 V Special have?
The Schlüter 1050 V Special delivers 110 hp.
How much does the Schlüter 1050 V Special weigh?
The unladen weight is 5,300 kg.
What engine does the Schlüter 1050 V Special have?
6 cylinders, 7,127 cm³ displacement, Diesel.
How fast does the Schlüter 1050 V Special go?
Top speed is 33.5 km/h.
What are the dimensions of the Schlüter 1050 V Special?
4,670 mm × 2,360 mm × 2,845 mm.
When was the Schlüter 1050 V Special built?
Production years: 12/1981–5/1987.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
