Schlüter DSU 25
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

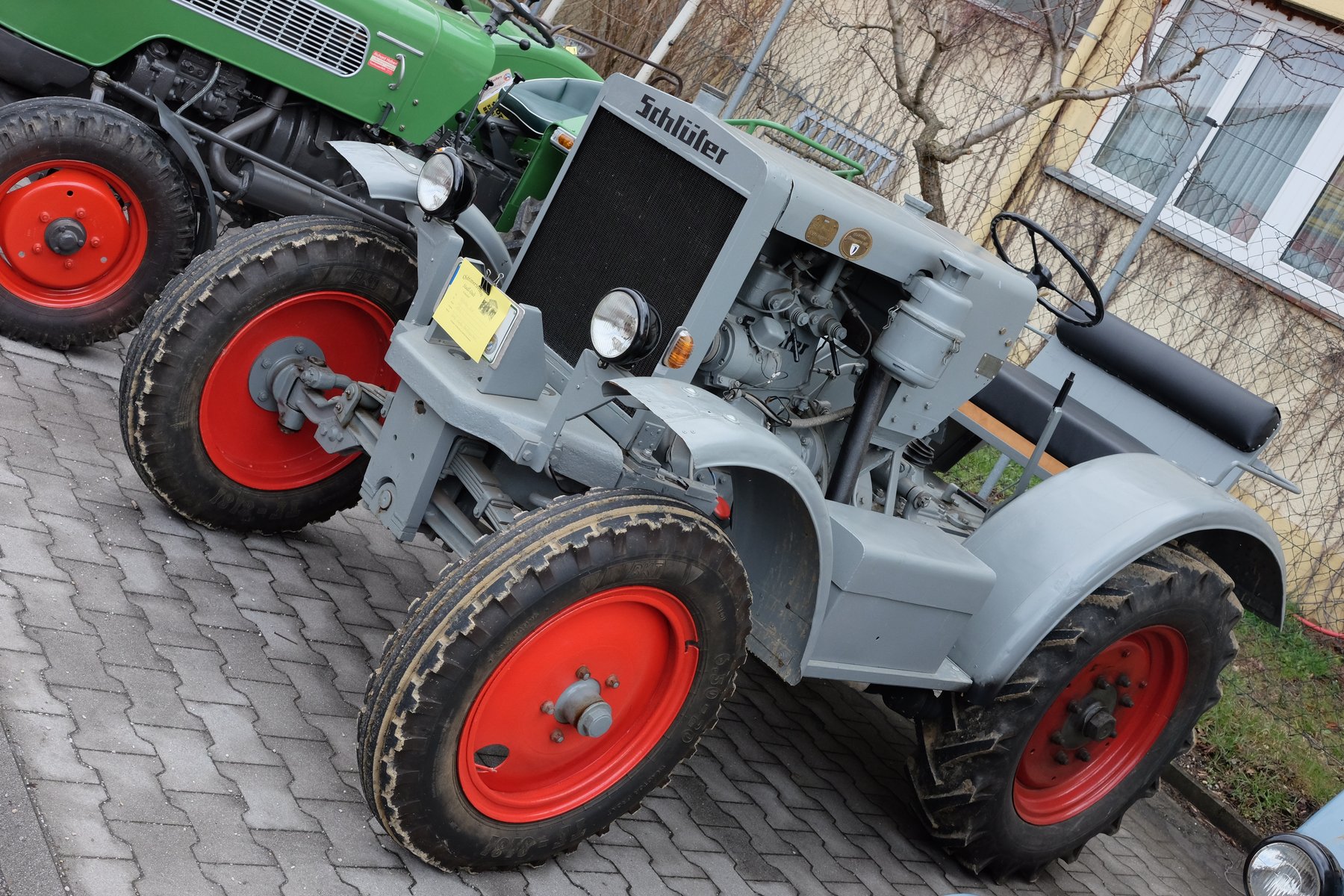

The DSU 25 is a tractor from the manufacturer Schlüter, classified in the tractor group. It is powered by a two‑cylinder engine with a displacement of 3 116 cm³ and operates at a nominal speed of 1 500 U/min. The machine measures 3 100 mm in length, 1 600 mm in width and 1 650 mm in height, with a wheelbase of 1 900 mm. Its empty weight is 1 900 kg, a factor that influences ground pressure and transport handling.
From a technical standpoint the DSU 25 features a gearbox with four forward gears and one reverse gear (4V/1R). The four forward speeds allow adaptation to various field conditions, from low speeds for precise operations to higher speeds for rapid travel. A top speed of 17 km/h enables quick movement between work zones, while the relatively compact dimensions and moderate weight improve maneuverability in tight rows.
As no comparative data are provided for the series, the DSU 25 cannot be positioned relative to other models. Tractors of this size and power class are typically used for light to medium field tasks, such as pulling implements, transporting loads and performing work on small to medium acreage.
Technical data
Engine
| Rated speed | 1,500 rpmcorrect |
|---|---|
| Cylinders | 2correct |
| Displacement | 3,116 cm³correct |
Dimensions and weights
| Length | 3,100 mmcorrect |
|---|---|
| Width | 1,600 mmcorrect |
| Height | 1,650 mmcorrect |
| Wheelbase | 1,900 mmcorrect |
| Unladen weight | 1,900 kgcorrect |
Drivetrain and chassis
| Gearbox | 4V/1Rcorrect |
|---|---|
| Forward gears | 4correct |
| Top speed | 17 km/hcorrect |
Frequently asked questions
How much does the Schlüter DSU 25 weigh?
The unladen weight is 1,900 kg.
What engine does the Schlüter DSU 25 have?
2 cylinders, 3,116 cm³ displacement.
How fast does the Schlüter DSU 25 go?
Top speed is 17 km/h.
What are the dimensions of the Schlüter DSU 25?
3,100 mm × 1,600 mm × 1,650 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
