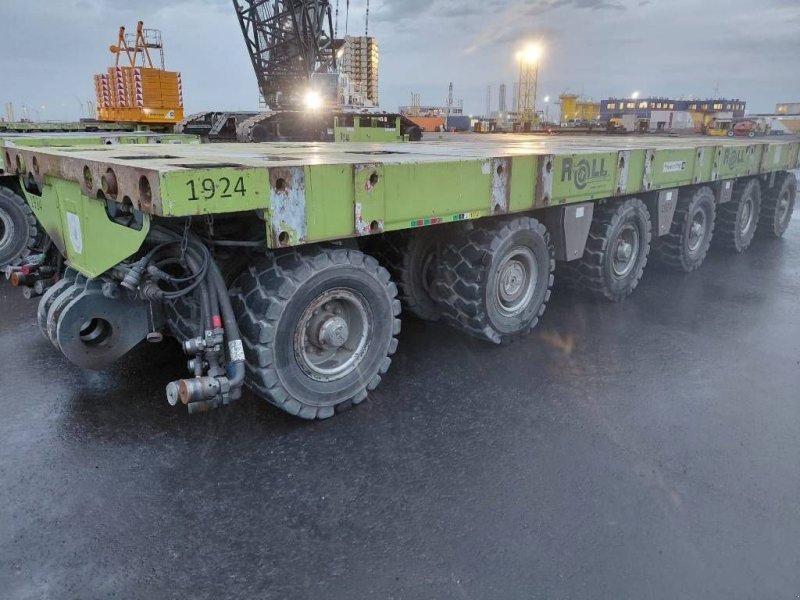

Scheuerle PEKZ 140.82
Built: 2009 · Series: PEKZ
More machines from model year 2009
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Scheuerle PEKZ – heavy-load modules from the German manufacturer in Pfedelbach: four- to eight-cylinders of 4 to 15.9 litres displacement, 16 to 31.3 t unladen weight, 5.6 to 8.7 m length
Scheuerle PEKZ denotes heavy-load modules from the German manufacturer Scheuerle, based in Pfedelbach in Baden-Württemberg, which counts among the leading suppliers of self-propelled and towed modular vehicles for heavy-haulage transport. Scheuerle has belonged to the TII Group since a merger with Kamag, Nicolas and TII. The modules recorded here differ considerably in engine and dimension, since heavy-load modules are fitted with different diesel engines from four to eight cylinders depending on the drive concept.
Read on 3 more paragraphs
The register lists here 6 versions from four- to eight-cylinders of 4,038 to 15,931 cm³, unladen weights from 16,000 to 31,300 kg, lengths from 5,600 to 8,740 mm and a width of 2,430 mm.
Heavy-load modules such as the PEKZ range transport industrial plant, wind-turbine, bridge and shipbuilding components too heavy or too large for conventional semi-trailers; several modules can be coupled mechanically and hydraulically into a single transport unit whose axles can be steered and loaded individually.
On used heavy-load modules, the condition of the hydraulic axle units and level control, the sealing of the hydraulic lines, the condition of couplings and connecting elements between modules, and the operating hours of the drive engine count; spare parts and service run through Scheuerle and the TII Group.
Sources: SpecCodex register, model data: Scheuerle PEKZ
Technical data
Engine
| Cylinders | 8correct |
|---|---|
| Displacement | 15,930 cm³correct |
Dimensions and weights
| Length | 5,600 mmcorrect |
|---|---|
| Width | 2,430 mmcorrect |
| Wheelbase | 4,200 mmcorrect |
| Unladen weight | 16,000 kgcorrect |
Drivetrain and chassis
| Wheels | 16correct |
|---|
Frequently asked questions
How much does the Scheuerle PEKZ 140.82 weigh?
The unladen weight is 16,000 kg.
What engine does the Scheuerle PEKZ 140.82 have?
8 cylinders, 15,930 cm³ displacement.
What are the dimensions of the Scheuerle PEKZ 140.82?
5,600 mm × 2,430 mm.
When was the Scheuerle PEKZ 140.82 built?
Production years: 2009.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
